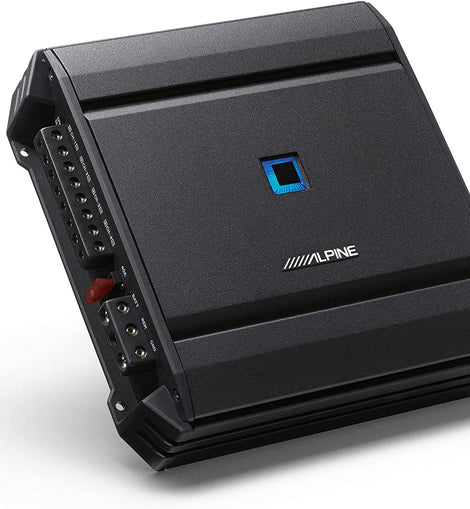

Alpine S-A32F S-Series 320W RMS 4-Channel Digital Class D Car Audio Amplifier
Alpine S-A32F S-Series 320W RMS 4-Channel Digital Class D Car Audio Amplifier
The all-new S-Series amplifiers pack a punch with even more performance and value. Experience hard-hitting bass and long hours of limitless play with the S-A32F 4-channel amplifier.
These amplifiers offer great value with over 20% more power through increased watt handling. The exceptional strength and resistance are supported by optimizing a heat thermal management processor to ensure exceptional reliability. You can enjoy your music with the bass cranked up for hours without any power shutdown.
General Features:
- Alpine S-Series S-A32F 4/3/2 Channel Power Amplifier
- S-Series amplifiers are your sound system’s workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.
- S-Series Amplifier: Known for reliable performance and value-oriented products.
- Power Output:
- 55W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N)
- 80W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
- Bridged: 160W RMS x 2 (4ohm, 14.4V ≤ 1% THD+N)
- Total power output: 320 watts
- CEA-2006 Compliant Amplifier
- LED Power/Protect Light
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and short speaker protection)
- Frequency Response: 10 - 30,0000 Hz
- Total Harmonic Distortion (THD): <1%
- Signal Noise Ratio: 83 dB
- Variable high-pass filter: 50 - 400 Hz, 12 dB/octave
- Variable low-pass filter: 50 - 400 Hz, 12 dB/octave
- Fuse Rating: 40
- Improved heat sink and protection circuit design
- Contain technology currently implemented in the Alpine R and X-Series models
- 105dB Signal-to-Noise (S/N) ratio at rated power
- 46 degrees of phase shift
- Designed to perform perfectly with the existing S-Series speakers and subwoofers
- Dimensions: 8” W x 8” H x 2.25” D
- Authorized Dealer
- 1-year Manufacturer's Warranty
What is in the S-A32F package:
- S-A32F owner's manual
- 4-Channel amplifier
- One 40-amp ATO fuse
- Four 3/4" Screws
- 2mm Allen wrench
- Alpine Verification Certificate
- Warranty information
- Online product registration information
