Alpine S-A32F 4 Channel Amplifier, S-S69 6X9" Coax Speakers, S-S50 5.25" Coax Speakers and Absolute 8 Gauge Wiring Kit

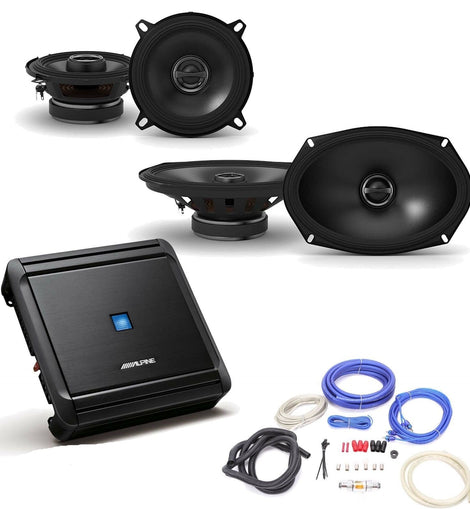

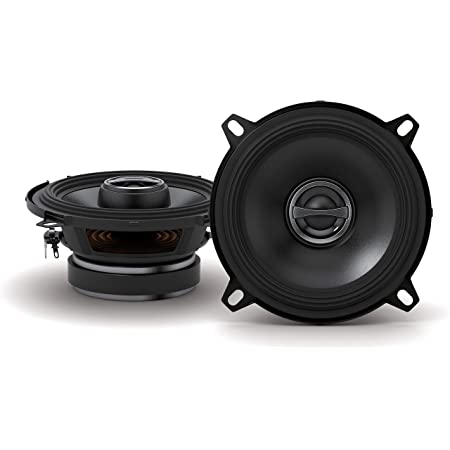

This bundle includes an Alpine S-A32F 4-Channel V-Power Amplifier, an 8 Gauge Wiring Kit, a pair of Alpine S-Series S-S69 6x9" Coaxial Speakers and a pair of Alpine S-S50 S-Series 5.25-inch Coaxial 2-Way Speakers.

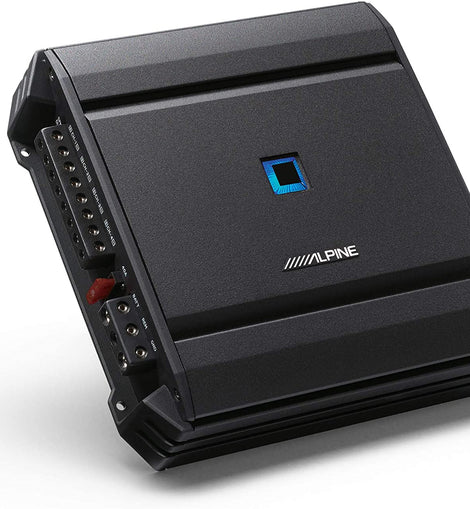

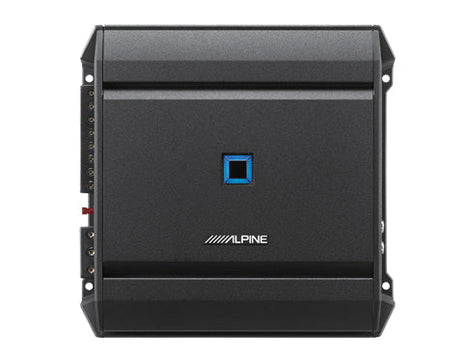

Alpine S-A32F S-Series 320W RMS 4-Channel Digital Class D Car Audio Amplifier

General Features:

• Alpine S-Series S-A32F 4/3/2 Channel Power Amplifier
• S-Series amplifiers are your sound system's workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.
• S-Series Amplifier: Known for reliable performance and value-oriented products.
• Power Output:
• 55W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N)
• 80W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
• Bridged: 160W RMS x 2 (4ohm, 14.4V ≤ 1% THD+N)
• Total power output: 320 watts
• CEA-2006 Compliant Amplifier
• LED Power/Protect Light

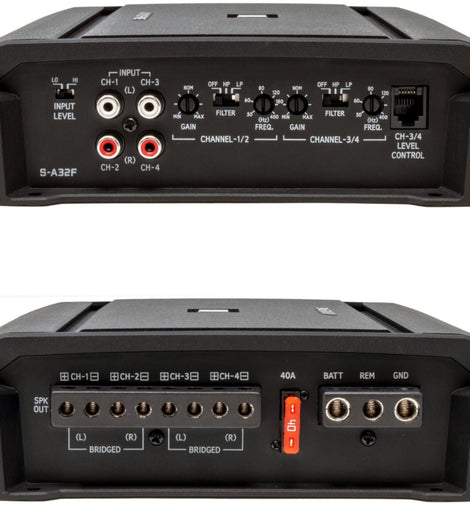

• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and short speaker protection)
• Frequency Response: 10 - 30,0000 Hz
• Total Harmonic Distortion (THD): <1%
• Signal Noise Ratio: 83 dB
• Variable high-pass filter: 50 - 400 Hz, 12 dB/octave
• Variable low-pass filter: 50 - 400 Hz, 12 dB/octave
• Fuse Rating: 40
• Improved heat sink and protection circuit design
• Contain technology currently implemented in the Alpine R and X-Series models
• 105dB Signal-to-Noise (S/N) ratio at rated power
• 46 degrees of phase shift
• Designed to perform perfectly with the existing S-Series speakers and subwoofers
• Dimensions: 8" W x 8" H x 2.25" D
• Authorized Dealer
• 1-year Manufacturer's Warranty

What is in the S-A32F package:

• S-A32F owner's manual
• 4-Channel amplifier
• One 40-amp ATO fuse
• Four 3/4" Screws
• 2mm Allen wrench
• Alpine Verification Certificate
• Warranty information
• Online product registration information

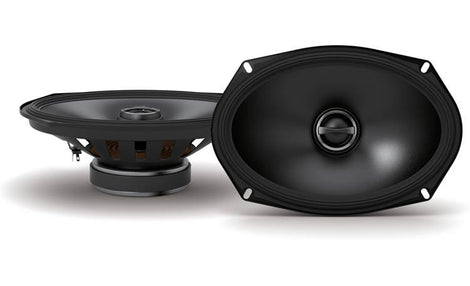

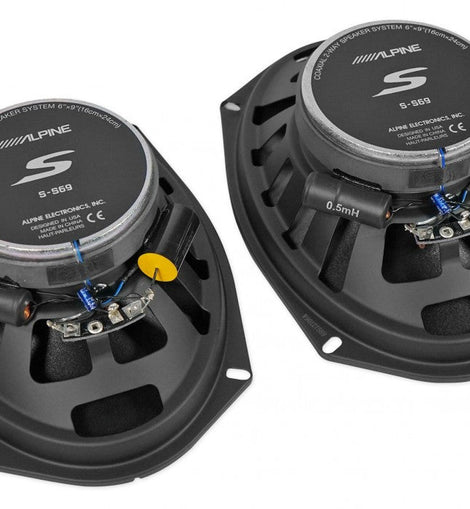

Alpine S-S69 520W Max (170W RMS) 6" x 9" Type S Series 2-Way Coaxial Car Speakers

General Features:

• 6" x 9" Type S Series 2-Way Coaxial Car Speakers
• Power Handling: Peak: 520 watts per pair / 260 watts each
• Power Handling: RMS: 170 watts per pair / 85 watts each
• Recommended Power Range: 10 - 85 watts RMS per channel
• Carbon Fiber Reinforced Plastic (CFRP) Cone
• High Amplitude Multi-Roll (HAMR) Surround
• 1" Silk Dome Tweeter
• Rubber magnet boot cover
• CEA-2031 compliant speakers
• 35mm Voice Coil
• Top-mount Depth: 2-15/16"
• Cutout Dimensions: 5-29/32" x 8-3/4"
• 4 ohms Impedance
• Frequency Response: 65 - 22000 Hz
• Sensitivity: 90dB
• Compatible with the Alpine KTE-S69G Grille
• Authorized Dealer
• 1-year Manufacturer's Warranty

What is in the S-S69 package:

• S-S69 owner's manual
• Two 2-way speakers
• 2 Bottom mount brackets
• Two 12" Lengths of speaker wire
• Eight 1-3/16" Screws
• Eight M4x60mm Machine screws
• Eight M4 Nuts
• Warranty information
• Online product registration information
