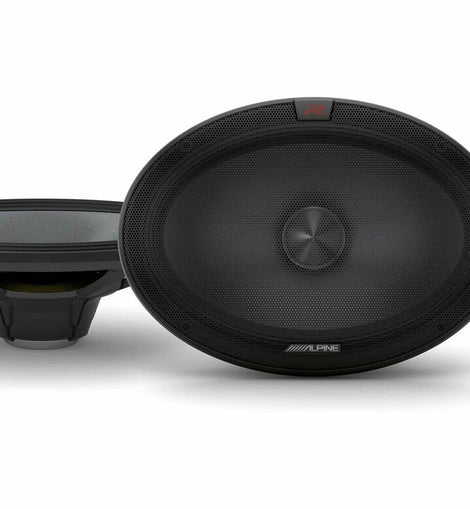

Alpine R-S69C.2 Component System 600W Peak, 200W RMS R-Series 6x9" Component 2-Way Speakers

FOR LIVING LOUD AND HAVING FUN

If you play your music loud and want others to know, the R-Series speakers match you. You will enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.

MORE OUTPUT FOR MORE FUN

The woofers have a large, 35-millimeter (mm) voice coil, allowing more coil windings to fit in the gap. This results in more excellent heat dissipation and increased power handling for superior control and output.

The R-Series speakers incorporate Alpine's patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with an in-line, passive design and reduced footprint, contributing to easier installation.

EXCLUSIVE CONE TECHNOLOGY

The R-Series speakers use Alpine's exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers' mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.

BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE

The R-Series speakers use a neodymium magnet, which gives them a shorter overall height compared to other speaker brands. They also use a new, shallower grill design. The result: an improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force.

Product Details:

• Alpine R-S69C.2
• Alpine R-Series 6"x9" 2-Way Component Car Speakers (Pair)
• Power Handling:
• RMS: 100 Watts
• Peak: 300 Watts
• Impedance: 4 Ohms
• Carbon-fiber reinforced polymer (CFRP) woofer
• Carbon-fiber reinforced polymer dome tweeter
• Frequency response: 60Hz - 40 kHz
• Sensitivity: 90 dB
• Top-mount depth: 2-7/8"
• Grilles included
• Authorized Dealer
• 1-year Manufacturer's Warranty

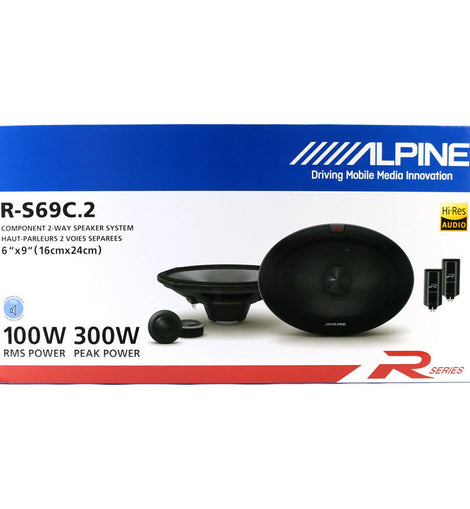

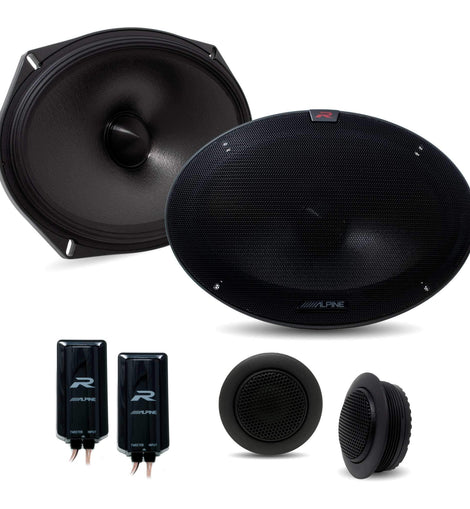

What is in the R-S69C.2 package:

• 2 Woofers
• 2 Woofer grilles
• 2 Grille badges
• 2 Tweeters (each has an attached 30" length of wire)
• 2 Tweeter grilles (installed)
• 2 Swivel flush mount housings (with tweeters installed)
• Two crossovers (each has attached input and output wires)
• 2 Flush mount retention rings
• 2 Stealth brackets
• 2 Foam self-adhesive pads
• 2 Foam self-adhesive rings
• Eight 1-1/8" Screws
• 8 Speed-clips
• Eight M4x60mm Machine screws
• 8 Nuts
• 8 Flat washers
• 8 Split lock washers
• Four 5" Zip ties
• 2 Pieces of two-sided tape
• Warranty information
• Online product registration notes
• Important Notice sheet
• Template and specs on the box
• R-S69C.2 Owner's Manual
