Alpine PSS-24FORD-F150BO 6-Speaker Audio System Upgrade Kit
Alpine PSS-24FORD-F150BO Complete 6-Speaker Audio Upgrade System with Dual 8" Subwoofer & 5-Channel Amplifier for Select 2018-2024 Ford F-150 with B&O® Audio
Upgrade your factory B&O® audio system with the Alpine PSS-24FORD-F150BO Complete Audio Upgrade Kit. Designed specifically for select 2018-2024 Ford F-150 trucks equipped with the factory B&O® sound system, this premium plug-and-play package delivers powerful, detailed audio while maintaining an OEM appearance. The system includes Alpine's Next-Generation S-Series speakers, a loaded dual 8-inch vented subwoofer enclosure, a high-performance 5-channel Class D amplifier, and all necessary installation hardware for a seamless factory-fit installation.
General Features
-
Complete Audio Upgrade System for Select 2018-2024 Ford F-150 with Factory B&O® Audio
-
Designed specifically for factory B&O® equipped vehicles
-
Plug-and-play installation
-
Factory-fit integration with vehicle-specific mounting hardware
-
Pre-tuned specifically for the Ford F-Series cabin
-
OEM-style appearance
-
No loss of passenger seating or interior space
-
Custom under-seat dual 8" vented subwoofer enclosure
-
Complete wiring harnesses included
-
Speaker adapter rings included
-
Power, speaker, input, and output harnesses included
-
Engineered to match factory fit and finish
-
1-Year Manufacturer's Warranty

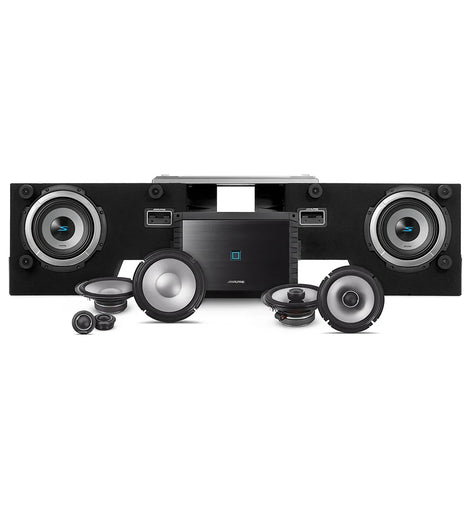

System Includes
-
Pair of Alpine S2-S80C 8" Component Front Speakers
-
Pair of Alpine S2-S65 6.5" Coaxial Rear Speakers
-
Alpine S2-DB8V-TRK Loaded Dual 8" Truck Subwoofer Enclosure
-
Alpine S2-A55V 5-Channel Class D Amplifier
-
Vehicle-Specific Plug-and-Play Wiring Harnesses
-
Speaker Adapter Rings
-
Installation Hardware
Alpine S2-S80C 8" 2-Way Component Speakers
General Features
-
8" 2-Way Component Speaker System
-
Hi-Res Audio Certified
-
Polypropylene, Glass Fiber & Mica Cone
-
High-Amplitude Multi-Roll (HAMR) Surround
-
1" Silk Dome Tweeters
-
Ferrite Magnet Motor Structure
-
In-Line Crossovers Included
-
Lightweight, high-output design
-
Low distortion performance
-
OEM-fit installation
Specifications
| Feature | Specification |
|---|---|
| Speaker Size | 8" |
| Speaker Type | 2-Way Component |
| Peak Power | 520 Watts Per Set |
| RMS Power | 170 Watts Per Set |
| Power Per Speaker | 260W Peak / 85W RMS |
| Cone Material | Polypropylene / Glass Fiber / Mica |
| Surround | HAMR |
| Tweeter | 1" Silk Dome |
| Magnet | Ferrite |
| Frequency Response | 50 Hz - 40,000 Hz |
| Sensitivity | 80 dB |
| Impedance | 4 Ohms |
| Mounting Depth | 2.61" |
| Cutout Diameter | 7.02" |
Alpine S2-S65 6.5" 2-Way Coaxial Speakers
General Features
-
6.5" 2-Way Coaxial Speakers
-
Hi-Res Audio Certified
-
Polypropylene, Glass Fiber & Mica Cone
-
High-Amplitude Multi-Roll (HAMR) Surround
-
1" Cloth Dome Tweeters
-
Ferrite Magnet Motor Structure
-
OEM-fit installation
-
Speaker grilles optional (sold separately)
Specifications
| Feature | Specification |
|---|---|
| Speaker Size | 6.5" |
| Speaker Type | 2-Way Coaxial |
| Peak Power | 480 Watts Per Pair |
| RMS Power | 160 Watts Per Pair |
| Power Per Speaker | 240W Peak / 80W RMS |
| Cone Material | Polypropylene / Glass Fiber / Mica |
| Tweeter | 1" Cloth Dome |
| Surround | HAMR |
| Magnet | Ferrite |
| Frequency Response | 70 Hz - 40,000 Hz |
| Sensitivity | 88 dB |
| Impedance | 4 Ohms |
| Mounting Depth | 2-5/16" |
| Cutout Diameter | 5-1/8" |
Alpine S2-DB8V-TRK Loaded Dual 8" Truck Enclosure
General Features
-
Dual 8" Loaded Vented Truck Enclosure
-
Includes Two Alpine S2-W8D2 Subwoofers
-
Compact Under-Seat Design
-
Adjustable Width: 40"-51"
-
Side-Firing Ports
-
Integrated Amplifier Mounting Tray
-
5/8" MDF Construction
-
Premium Carpet Finish
-
Rubber Stackable Feet
Specifications
| Feature | Specification |
|---|---|
| Subwoofers | Dual 8" Alpine S2-W8D2 |
| Enclosure Type | Vented |
| Peak Power | 600 Watts |
| RMS Power | 300 Watts |
| Final Impedance | 2 Ohms |
| Cone Material | Polypropylene |
| Surround | HAMR |
| Frequency Response | 34 Hz - 200 Hz |
| Sensitivity | 84 dB |
| Voice Coil | 1.4" High-Temperature Copper |
| Xmax | 13 mm |
| Magnet | 34 oz Double-Stacked Ferrite |
| Enclosure Material | 5/8" MDF |
| Dimensions | 40"-51" L × 13.75" W × 8.75" H |
Alpine S2-A55V 5-Channel Class D Amplifier
General Features
-
Class D 5-Channel Amplifier
-
Hi-Res Audio Certified
-
CTA-2006-D Certified
-
Compact Chassis Design
-
Signal-Sensing Auto Turn-On
-
Speaker-Level Inputs
-
Selectable Crossovers
-
LED Power & Protection Indicators
-
Compatible with Alpine RUX-KNOB.2 or RUX-H01 Bass Remote (Sold Separately)
-
Recommended 4 AWG Amplifier Wiring Kit
Power Ratings
| Load | Output |
|---|---|
| 4 Ohms | 40W × 4 + 200W × 1 |
| 2 Ohms | 60W × 4 + 300W × 1 |
| Bridged | 120W × 2 @ 4Ω + 300W × 1 @ 2Ω |
| Total Output | 540 Watts |
Amplifier Specifications
| Feature | Specification |
|---|---|
| Amplifier Class | Class D |
| Channels | 5 |
| Frequency Response | 50 Hz - 40,000 Hz |
| Signal-to-Noise Ratio | 83 dB |
| THD | 1% |
| Low-Level Input | 0.2V - 4V |
| High-Level Input | 0.5V - 10V |
| High-Pass Filter | 50 Hz - 400 Hz |
| Low-Pass Filter | 50 Hz - 400 Hz |
| Fuse Rating | 60A |
| Recommended Wiring | 4 AWG |
| Dimensions | 11.9" L × 8.25" W × 2.25" H |
Vehicle Compatibility
-
Select 2018-2024 Ford F-150
-
Factory B&O® Premium Audio System Required
Package Includes
-
Alpine S2-S80C 8" Component Speaker Set
-
Alpine S2-S65 6.5" Coaxial Speaker Pair
-
Alpine S2-DB8V-TRK Dual 8" Loaded Vented Enclosure
-
Alpine S2-A55V 5-Channel Class D Amplifier
-
Plug-and-Play Wiring Harnesses
-
Speaker Adapter Rings
-
Power, Speaker, Input & Output Harnesses
-
Vehicle-Specific Mounting Hardware
-
Installation Guide
