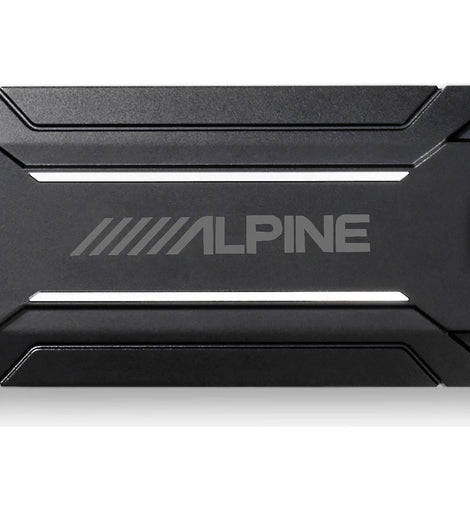

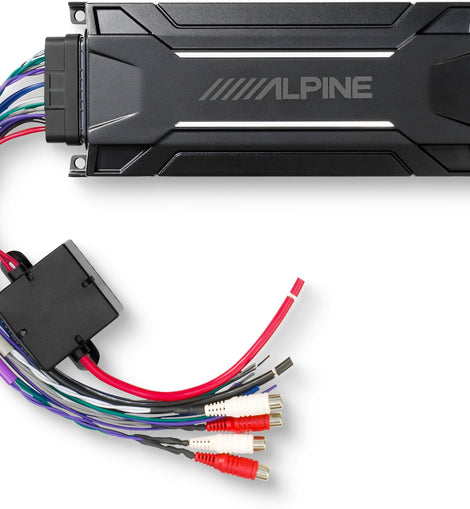

Alpine KTA-30FW Tough Power Pack Compact 4-Channel Amplifier - Black
Alpine KTA-30FW 600W Max, 300W RMS KTA Series 4 ohm Stable 4-Channel
Class-D Tough Power Pack Amplifier
Half The Size, Double The Power Get a huge increase in sound performance over your factory system. With Alpine’s exclusive technology, Dynamic Peak Power (D.P.P.), the KTA-30FW Weather Resistant Tough Power Pack is sure to add higher output and increased dynamic range for those open cab vehicles and toys. The KTA-F30W is perfect for when you want to boost your sound system but don’t have space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power. ![]()
The KTA-30FW is ready for your adventures. It is weather-resistant, rated at IP66 for protection against dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high-quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open-top vehicles. and motorcycles.
General Features:
- Alpine KTA-30FW
- Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
- Designed for use in Side-by-Sides, Boats, Open-Top Vehicles, and Motorcycles
- RMS Power Rating: 4 ohms: 75 watts x 4 Channel
- RMS Power Rating: 2 ohms: 75 watts x 4 Channel
- 150 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
- Total power output: 600 watts
- CEA-2006 Compliant Amplifier
- Power Wire Harness Included
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- Soft start turn-on
- Switchable 4 or 2 channel operation
- Speaker-level (high-level) inputs
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy-duty aluminum alloy heat-sink
- IP66 Waterproof Rating
- Input sensitivity: Low level: 0.2V-4V
- Input sensitivity: High level: 0.5V-10V
- Frequency Response: 15 - 36000 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ratio: >98 dB
- Variable high-pass filter: 50 - 400 Hz, 12 dB/octave
- Variable low-pass filter: 50 - 400 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
- Dimensions: 9-3/16"W x 3-3/4"D x 1-3/4"H
- Authorized Dealer
- 1-year Manufacturer's Warranty
- 4-Channel amplifier

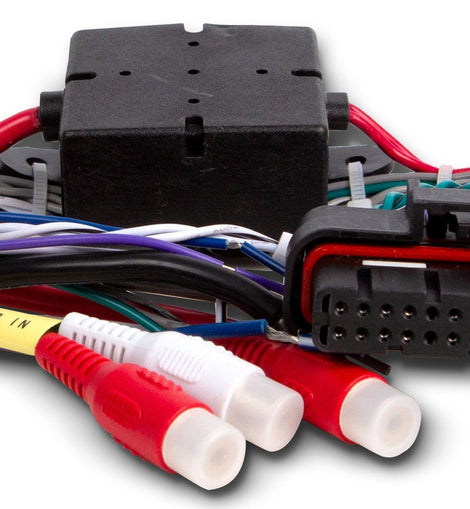

- 14" Power/signal harness (26-pin connector on one end and bare wires + RCAs on other ends)
- 4 Self-tapping screws (Length 3/4")
- Connection sheet
- Limited Warranty sheet
- Thank you letter
- Alpine KTA-30FW Tough Power Pack owner's manual
