Alpine iLX-W670 Digital Multimedia Receiver + (2) Alpine S2-SB8 PrismaLink™ 8" Powered Subwoofer Enclosures + Alpine S2-A60M Mono Amplifier + KTX-LK8 Linking Brackets Bundle

Upgrade your vehicle with a premium Alpine audio system featuring the Alpine iLX-W670 7-inch multimedia receiver, two Alpine S2-SB8 PrismaLink™ sealed 8-inch subwoofer enclosures, the Alpine S2-A60M Next-Generation S-Series mono amplifier, and the KTX-LK8 PrismaLink™ linking bracket kit. This complete bundle delivers wireless smartphone integration, powerful bass, customizable RGB lighting, and a clean modular installation designed to maximize both performance and space.

Key Features

• Complete Alpine multimedia and bass upgrade package

• Alpine iLX-W670 7" capacitive touchscreen receiver

• Wireless Apple CarPlay® and Android Auto™ compatible

• Two Alpine S2-SB8 PrismaLink™ sealed 8" subwoofer enclosures

• Alpine S2-A60M 600-Watt RMS Class D mono amplifier

• Alpine KTX-LK8 PrismaLink™ linking bracket kit included

• RGB illuminated subwoofer enclosures

• Compact installation with Alpine PowerStack™ compatibility

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

Alpine iLX-W670 7" Digital Multimedia Receiver

The Alpine iLX-W670 combines a modern ultra-shallow chassis with an intuitive 7-inch capacitive touchscreen, providing seamless smartphone integration while saving valuable installation depth behind the dashboard.

General Features

• 7" Anti-Glare Capacitive Touchscreen

• Ultra-Shallow Mechless Chassis

• Apple CarPlay® Compatible

• Android Auto™ Compatible

• Google Assistant Compatible

• Bluetooth Hands-Free Calling

• Bluetooth Audio Streaming

• AM/FM Radio

• 24 FM / 12 AM Presets

• Pandora® Control for iPhone® & Android™

• Two-Finger Swipe User Interface

• PowerStack™ Compatible Design

• Peak Power: 50W x 4

• RMS Power: 16W x 4

• Authorized Dealer

• 1-Year Manufacturer's Warranty

Navigation

• Apple CarPlay Navigation

• Android Auto Navigation

• Google Maps Compatible

• Waze Compatible

• Apple Maps Compatible

Alpine S2-SB8 PrismaLink™ Sealed 8" Subwoofer Enclosures (2 Included)

The included pair of Alpine S2-SB8 PrismaLink™ enclosures provides deep, accurate bass while offering modular expansion through the PrismaLink™ system. Integrated RGB lighting creates a premium visual appearance that complements modern vehicle interiors.

General Features

• Two Alpine S2-SB8 Sealed Enclosures Included

• Sealed Polypropylene Enclosure

• Integrated Alpine S-Series 8" Subwoofer

• PrismaLink™ Expandable Design

• RGB LED Lighting Bars

• Carbon Fiber / Polypropylene Cone

• Ceramic / Polypropylene Dust Cap

• HAMR Rubber Surround

• Twist-Lock Grille Mount System

• 2-Ohm Final Impedance (Each Enclosure)

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

Subwoofer Specifications

• Woofer Size: 8"

• Voice Coil: Dual 2 Ohm

• RMS Power Handling: 300 Watts Each

• Peak Power Handling: 900 Watts Each

• Frequency Response: 23Hz-215Hz

• Voice Coil Diameter: 1.4"

• Xmax: 13 mm

• Magnet: 34 oz Ferrite

• Total System RMS: 600 Watts

• Total System Peak: 1,800 Watts

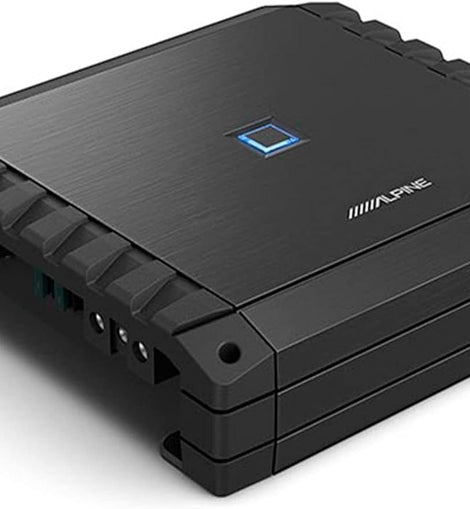

Alpine S2-A60M Next-Generation Mono Amplifier

Designed specifically for Alpine S-Series subwoofers, the S2-A60M delivers clean, efficient bass power while maintaining a compact installation footprint.

General Features

• Class D Mono Amplifier

• 2-Ohm Stable

• Pulse Width Modulated MOSFET Power Supply

• Speaker-Level Inputs

• RCA Inputs

• Variable Low-Pass Filter

• Variable Bass Boost

• LED Power / Protect Indicators

• Soft Start Circuit

• Thermal Protection

• Overload Protection

• Speaker Short Protection

• Compatible with Alpine RUX-KNOB.2 Remote Bass Knob (Sold Separately)

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

RMS Power Output

• 330 Watts x1 @ 4 Ohms

• 600 Watts x1 @ 2 Ohms

Audio Specifications

• Frequency Response: 10Hz-400Hz

• THD: <1%

• Signal-to-Noise Ratio: 85 dB

• Variable LPF: 50Hz-400Hz

• Variable Bass Boost: 0-12 dB

• Fuse Rating: 30A x2

Dimensions

• Width: 8-1/16"

• Length: 9-3/16"

• Height: 2-5/16"

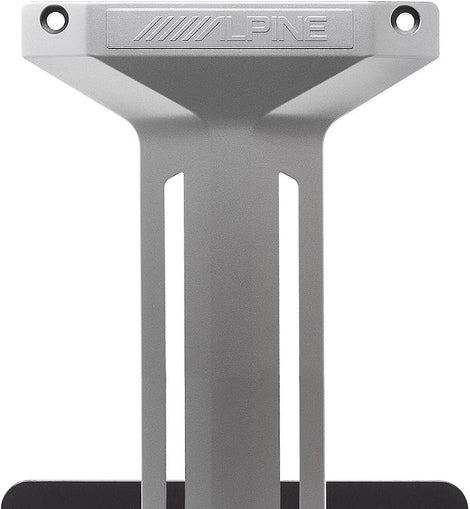

Alpine KTX-LK8 PrismaLink™ Linking Brackets

The included KTX-LK8 linking brackets securely connect both PrismaLink™ subwoofer enclosures into one integrated system while maintaining proper alignment and installation flexibility.

Features

• Designed for Alpine PrismaLink™ Enclosures

• Securely Links Two S2-SB8 Enclosures

• Heavy-Duty Mounting Hardware Included

• Clean Factory Appearance

• Simple Installation

• Durable Steel Construction

Package Includes

• Alpine iLX-W670 Multimedia Receiver

• (2) Alpine S2-SB8 PrismaLink™ 8" Sealed Subwoofer Enclosures

• Alpine S2-A60M Class D Mono Amplifier

• Alpine KTX-LK8 PrismaLink™ Linking Bracket Kit

• Installation Hardware

• Owner's Manuals

Ideal Applications

• Cars

• Trucks

• SUVs

• Daily Drivers

• Custom Audio Builds

• Bass Upgrade Systems

• Alpine PowerStack™ Installations
