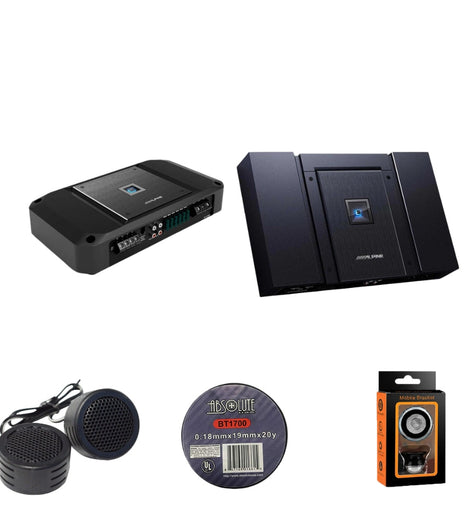

Alpine HDA-F60 + R2-A150M Status Hi-Res 4-Channel Amplifier & R-Series 1500W Mono Subwoofer Amplifier Bundle + Absolute Accessory Bundle

Upgrade Your Audio System with Alpine Status Hi-Res Multi-Channel & R-Series Subwoofer Amplification

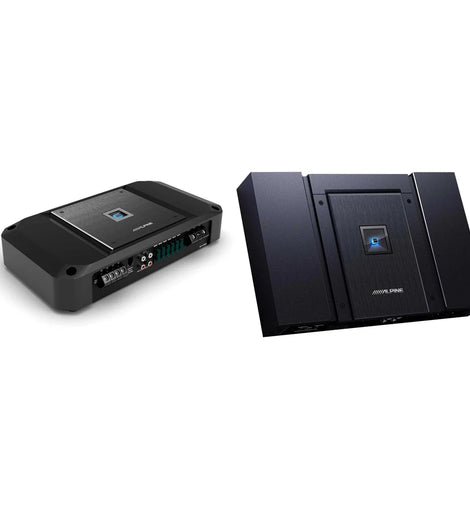

The Alpine HDA-F60 + R2-A150M Bundle combines the Alpine Status HDA-F60 Hi-Res 4-channel amplifier, Alpine R2-A150M R-Series mono subwoofer amplifier, Absolute TW500 Super Tweeters, Absolute BT1700 Electrical Tape, and a Universal Mobile Phone Holder. Designed for audiophiles and high-performance car audio systems, this complete amplifier package delivers crystal-clear full-range sound, powerful low-frequency output, Hi-Res Audio compatibility, and flexible system tuning.

General Features

• Complete Alpine Status & R-Series amplifier bundle

• Includes Alpine HDA-F60 Status Hi-Res 4-Channel Amplifier

• Includes Alpine R2-A150M R-Series Mono Subwoofer Amplifier

• Includes (1 Pair) Absolute TW500 Super Tweeters

• Includes (1) Absolute BT1700 Electrical Tape

• Includes (1) Universal Mobile Phone Holder

• Class-D Amplifier Technology

• Hi-Res Audio Compatible

• Compact Installation-Friendly Design

• Variable High-Pass & Low-Pass Crossovers

• Top-Mounted Controls

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

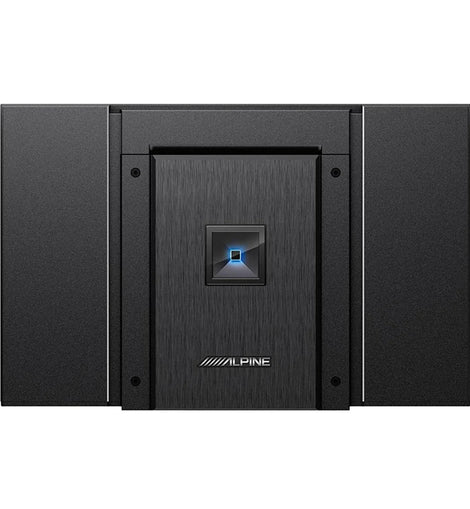

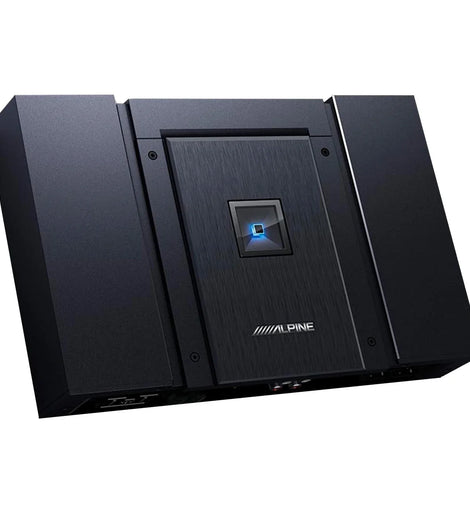

Alpine HDA-F60 Status Hi-Res 4-Channel Amplifier

The Alpine Status HDA-F60 is engineered to reproduce high-resolution audio with exceptional clarity and dynamic range. Its premium Class-D circuitry, copper-plated chassis, and advanced feedback control provide clean, detailed sound for front and rear speakers or bridged speaker applications.

General Features

• Alpine Status Series 4-Channel Amplifier

• Hi-Res Audio Compatible

• Class-D Amplifier Design

• Copper-Plated Chassis

• Black Circuit Board Design

• Dual Negative Feedback Control Circuit

• Selectable 2-Channel / 4-Channel Inputs

• Selectable High-Level & Low-Level Inputs

• Variable High-Pass Crossover

• Variable Low-Pass Crossover

• Remote Turn-On Sensing

• Top-Mounted Controls

• Compact Chassis

Power Output

• 100 Watts RMS x 4 @ 4 Ohms

• 150 Watts RMS x 4 @ 2 Ohms

• 300 Watts RMS x 2 Bridged @ 4 Ohms

Specifications

• Hi-Res Audio: Up to 192kHz / 24-Bit

• Frequency Response: 10Hz-60kHz (-3dB)

• THD+N: 0.02%

• Signal-to-Noise Ratio: 87dB

• Damping Factor: 500

• Dimensions: 11.44" × 7.50" × 2.13"

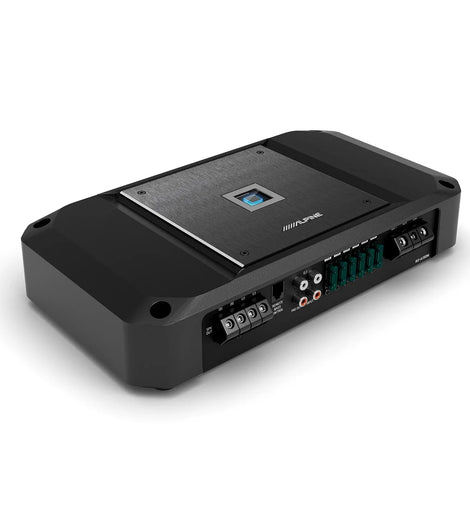

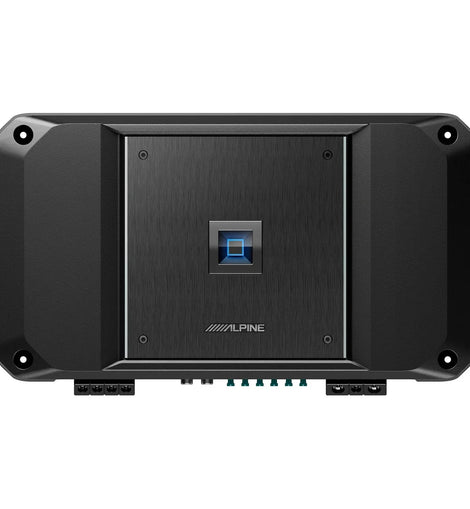

Alpine R2-A150M R-Series Mono Subwoofer Amplifier

The Alpine R2-A150M delivers outstanding low-frequency performance with up to 1500 Watts RMS at 1 Ohm. Advanced Class-D circuitry, variable crossover controls, and flexible installation options make it an excellent choice for powering high-performance subwoofer systems.

General Features

• R-Series Mono Class-D Amplifier

• Compact Chassis

• One-Sided Terminal Layout

• Top-Mounted Controls

• Variable Low-Pass Filter

• Variable Subsonic Filter

• Variable Bass EQ

• Adjustable Gain Control

• Remote Bass Controller Ready (RUX-KNOB.2 Compatible)

• LED Power & Status Indicator

• Automatic Turn-On with High-Level Inputs

• Advanced Thermal Management

Power Output

• 1500 Watts RMS x 1 @ 1 Ohm

• 1200 Watts RMS x 1 @ 2 Ohms

• 700 Watts RMS x 1 @ 4 Ohms

• 2300 Watts Maximum Power

Specifications

• Frequency Response: 10Hz-400Hz

• Low-Pass Filter: Variable 50Hz-400Hz (-24dB/Octave)

• Subsonic Filter: Variable 8Hz-40Hz (-24dB/Octave)

• THD+N: Less Than 0.04%

• Damping Factor: Greater Than 250

• Input Sensitivity:

  • RCA High: 0.4V-10V

  • RCA Low: 0.1V-4V

• Power Cable: 4 AWG

• Speaker Cable: 8 AWG

• Dimensions: 13.43" × 7.28" × 2.56"

• Weight: 11 lbs (5 kg)

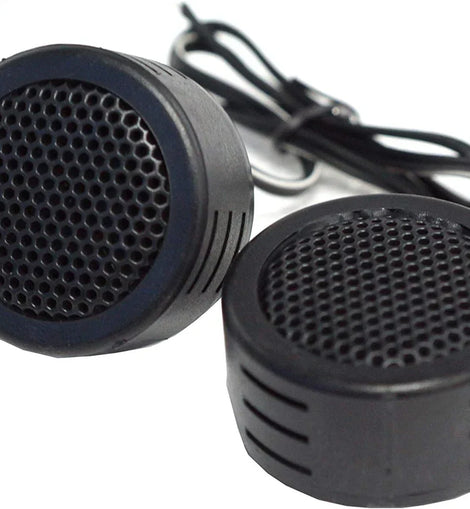

Absolute TW500 Super Tweeters

Enhance your system's high-frequency performance with the included Absolute TW500 Super Tweeters, providing brighter highs and improved overall sound clarity.

General Features

• High-Efficiency Super Tweeters

• Compact Design

• Factory & Aftermarket Audio Compatible

• Easy Installation

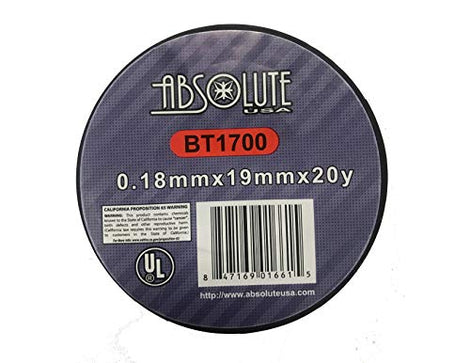

Absolute BT1700 Electrical Tape

Professional-grade electrical tape for clean, reliable automotive wiring installations.

General Features

• Automotive Electrical Tape

• High Adhesion

• Heat Resistant

• Flexible PVC Construction

• Ideal for Car Audio Installations

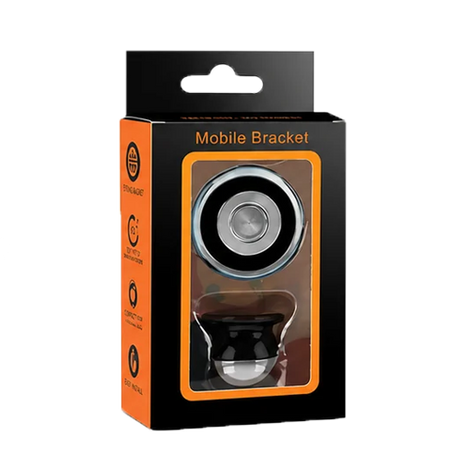

Universal Mobile Phone Holder

Keep your smartphone securely mounted for safer driving and convenient navigation.

General Features

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Easy Installation

Package Includes

• (1) Alpine Status HDA-F60 4-Channel Amplifier

• (1) Alpine R2-A150M R-Series Mono Subwoofer Amplifier

• (1) HDA-F60 Owner's Manual

• (1) HDA-F60 Birth Sheet

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Universal Mobile Phone Holder

Installation Notes

• The HDA-F60 is ideal for powering front and rear speakers or can be bridged for higher-output applications.

• The R2-A150M is designed to power compatible subwoofer systems with up to 1500 Watts RMS at 1 Ohm.

• Use appropriately sized power, ground, and speaker wiring for optimum performance.

• Professional installation is recommended.

• Verify amplifier and speaker impedance compatibility before installation.
