Alpine BRV-S40C 4" BassRev Series 2-Way 4-ohm Component Speaker System

Compact size, big-speaker feel - the Alpine BRV-S40C 4" BassRev™ Component Speakers are designed to deliver larger-than-life sound.

General Features:

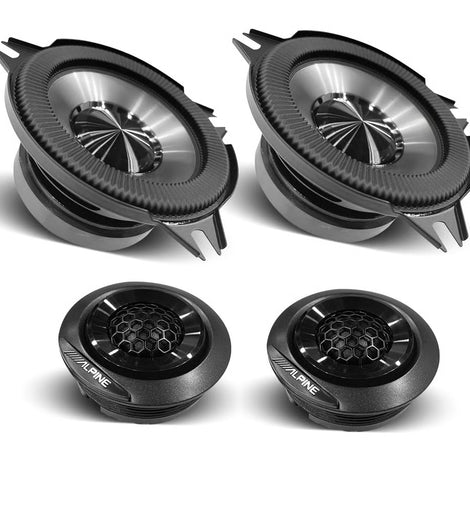

• 4" BassRev™ Component Speaker Set (4" woofer + 3/4" tweeter)

• Optimized to be paired actively with Alpine OPTIM8® using OPTIM™ Sync (Passive networks not included)

• Upgraded bass performance when tuned with OPTIM8® (Alpine Proprietary OPTIM™Sync Algorithm)

• Engineered for increased mid and low-end performance

• HEDGE™ Surround (High Excursion Design Gathered Edge) increases low-end output and extension

• Unique lapel cone shape enables higher excursion vs. traditional cones

• Polypropylene + mica cone for increased rigidity and cleaner response

• Ferrite magnet motor for stable performance and reliable power handling

• Gun-metal chemical coating for a premium, durable finish

Tech Specs:

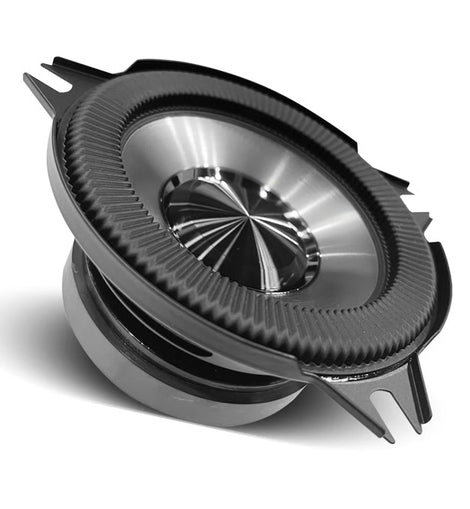

• Woofer Size: 4"

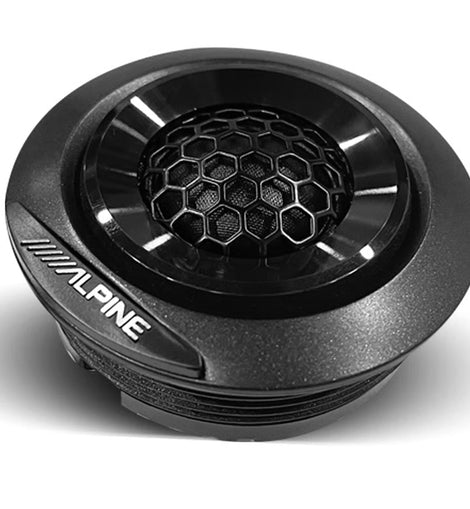

• Tweeter Size: 3/4" (Component)

• Power Handling: 40W RMS / 120W Peak

• Frequency Response (w/*BassRev Tuning ON): 67Hz - 20kHz

• Frequency Response (w/*BassRev Tuning OFF): 75Hz - 20kHz

• Sensitivity: 84dB (1W/1m)

• Impedance: 4Ω
• Mounting Depth: 1-3/4" (woofer)

• Cone Material: Polypropylene (woofer), Polyester cloth-dome (tweeter)

• Surround Material: Rubber HEDGE™ Design (woofer)

• Voice Coil Diameter: 25mm (woofer), 20mm (tweeter)

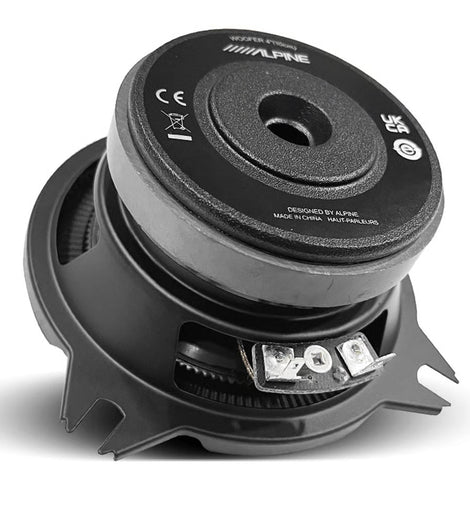

• Magnet Size: 75mm (woofer)

• Magnet Material: Ferrite (woofer), Neodymium (tweeter)

• Frame Material: Steel (woofer)

*BassRev tuning requires Alpine OPTIM8® DSP/Amplifier using Alpine OPTIM™Sync Technology.
