Alpine BBX-T600 2-Channel Class A/B Amplifier with Dual DC Sound DSW2000 DVC4 10" Shallow-Mount Subwoofers & KIT4 4-Gauge Amplifier Wiring Kit - 600W Max Amplifier / 1400W RMS / 4000W Max Subwoofer System

Complete bass upgrade package featuring the Alpine BBX-T600 2-channel Class A/B amplifier, two DC Sound DSW2000 DVC4 10-inch shallow-mount dual 4-ohm subwoofers, and an Absolute USA KIT4 4-gauge amplifier installation kit. Designed to deliver clean amplifier power, deep bass response, and professional installation for trucks, SUVs, compact cars, and custom audio systems.

Key Features

🔊 COMPLETE BASS SYSTEM PACKAGE - Includes (1) Alpine BBX-T600 2-Channel Class A/B Amplifier, (2) DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofers, and (1) Absolute USA KIT4 4-Gauge Amplifier Installation Kit.

💥 1400 WATTS RMS / 4000 WATTS MAX SUBWOOFER SYSTEM - Two DSW2000 subwoofers combine to deliver 1400 Watts RMS and 4000 Watts Maximum Power Handling, producing deep, hard-hitting bass with outstanding clarity and control.

🚘 ULTRA-SHALLOW INSTALLATION DESIGN - Each subwoofer features a compact 3.66-inch mounting depth, making this package ideal for trucks, under-seat enclosures, compact vehicles, and custom shallow-mount installations.

💪 PREMIUM ALPINE CLASS A/B AMPLIFIER - Features a Pulse Width Modulated MOSFET power supply, adjustable high-pass and low-pass crossovers, Bass EQ, preamp outputs, and advanced protection circuitry for dependable performance.

🧰 PROFESSIONAL 4-GAUGE INSTALLATION KIT INCLUDED - The Absolute USA KIT4 amplifier wiring kit includes premium 4-gauge power and ground cables, RCA interconnects, speaker wire, fuse holder, remote turn-on wire, and installation accessories for a reliable, professional-quality installation.

Product Description

Upgrade your vehicle's audio system with this complete Alpine BBX-T600 + Dual DC Sound DSW2000 Performance Package. Combining Alpine's proven amplifier technology with two powerful shallow-mount subwoofers and a premium 4-gauge amplifier installation kit, this package delivers everything needed to build a clean, dependable, high-performance bass system.

The Alpine BBX-T600 provides excellent Class A/B sound quality through its Pulse Width Modulated MOSFET power supply while offering adjustable high-pass and low-pass crossovers, variable Bass EQ, preamp outputs for future expansion, and comprehensive thermal, overload, and speaker short-circuit protection.

The DC Sound DSW2000 DVC4 subwoofers utilize 2.5-inch high-temperature 4-layer copper voice coils, heavy-duty cast aluminum baskets, reinforced paper cones, fiberglass dust caps, high-roll rubber surrounds, and optimized ferrite motor structures to deliver deep, controlled bass with excellent thermal efficiency and long-term durability.

The included Absolute USA KIT4 4-gauge amplifier installation kit provides premium power and ground wiring, RCA cables, speaker wire, fuse protection, and installation hardware, ensuring dependable current delivery and a clean installation.

General Features

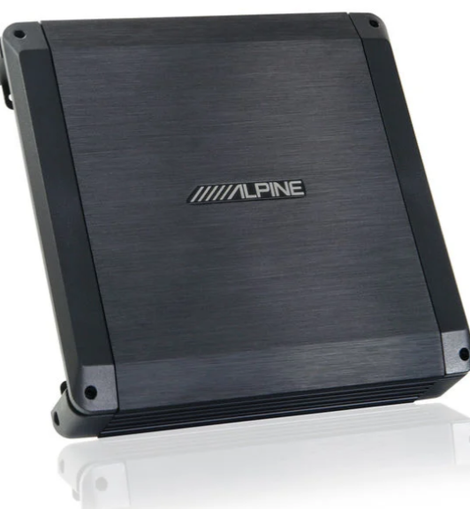

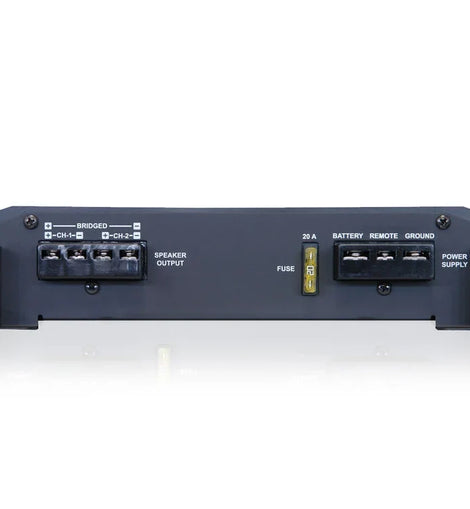

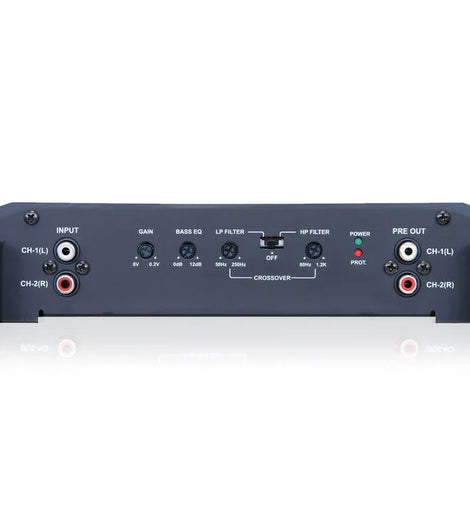

Alpine BBX-T600 Amplifier

• Class A/B 2-Channel Amplifier

• 2-Ohm Stable Operation

• 600 Watts Maximum Total Output

• 50 Watts RMS x 2 @ 4 Ohms

• 70 Watts RMS x 2 @ 2 Ohms

• 130 Watts RMS x 1 Bridged @ 4 Ohms

• Pulse Width Modulated MOSFET Power Supply

• Variable High-Pass Filter (80-1200 Hz)

• Variable Low-Pass Filter (50-500 Hz)

• Variable Bass Boost (0 to +12 dB)

• Preamp Outputs

• LED Power & Protect Indicators

• Soft Start Turn-On

• Heavy-Duty Aluminum Alloy Heat Sink

• Thermal, Overload & Speaker Short Protection

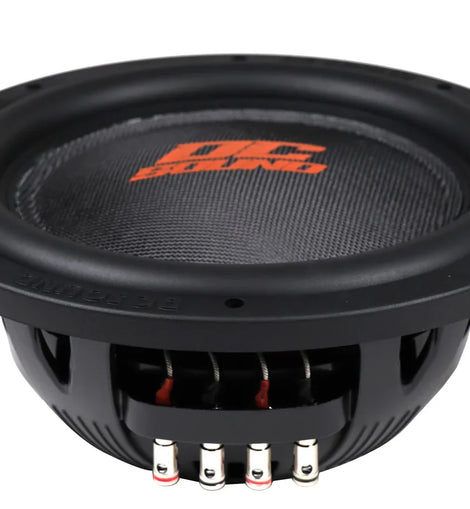

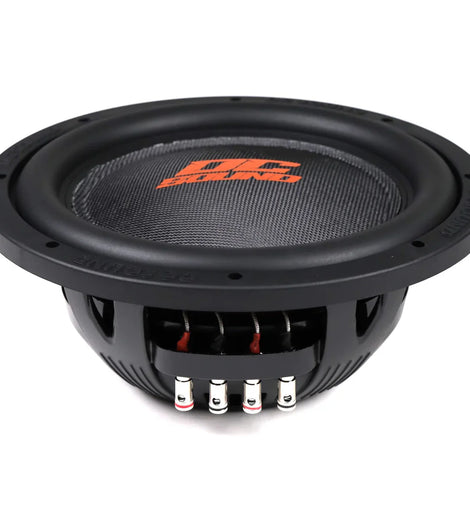

DC Sound DSW2000 DVC4 Subwoofers

• (2) 10" Shallow-Mount Subwoofers

• Dual 4-Ohm Voice Coil Configuration

• 700 Watts RMS Power Handling (Each)

• 2000 Watts Maximum Power Handling (Each)

• Heavy-Duty Cast Aluminum Basket

• 2.5" (63.5 mm) High-Temperature 4-Layer Copper Voice Coil

• Aluminum Voice Coil Former

• Reinforced Paper Cone

• High-Roll Rubber Surround

• Fiberglass Dust Cap

• 62 oz Ferrite Magnet

• Optimized for Compact Sealed & Ported Enclosures

KIT4 Amplifier Installation Kit

• Absolute USA KIT4 4-Gauge Amplifier Installation Kit

• 4-Gauge Power Cable

• 4-Gauge Ground Cable

• RCA Interconnect Cable

• Speaker Wire

• Fuse Holder & Fuse

• Remote Turn-On Wire

• Ring Terminals

• Installation Accessories

Specifications

Amplifier

• Amplifier Type: Class A/B

• Channels: 2

• Stable Impedance: 2 Ohms Stereo

• RMS Power @ 4 Ohms: 50W × 2

• RMS Power @ 2 Ohms: 70W × 2

• Bridged RMS Power @ 4 Ohms: 130W × 1

• Maximum Output Power: 600 Watts

• Frequency Response: 5Hz - 50,000Hz

• Signal-to-Noise Ratio: 95 dB

• Total Harmonic Distortion (THD): <1%

• Input Sensitivity: 0.2V - 8V

• Variable High-Pass Filter: 80-1200 Hz

• Variable Low-Pass Filter: 50-500 Hz

• Variable Bass Boost: 0 to +12 dB

• Fuse Rating: 20A × 1

• Dimensions: 9.84" W × 9.44" L × 2" H

• Weight: 5 lbs

Complete Subwoofer System

• Number of Subwoofers: 2

• Combined RMS Power Handling: 1400 Watts

• Combined Maximum Power Handling: 4000 Watts

Each Subwoofer

• Speaker Size: 10" (254 mm)

• Voice Coil Configuration: Dual 4 Ohms

• RMS Power Handling: 700 Watts

• Maximum Power Handling: 2000 Watts

• Voice Coil Diameter: 2.5" (63.5 mm)

• Voice Coil Construction: 4-Layer Copper

• Voice Coil Former: Aluminum

• Basket Material: Cast Aluminum

• Cone Material: Reinforced Paper

• Surround Material: High-Roll Rubber

• Dust Cap: Fiberglass

• Magnet Structure: Ferrite

• Magnet Weight: 62 oz

Performance

• Frequency Response: 20Hz - 800Hz

• Sensitivity: 84 dB (1W/1M)

• Free Air Resonance (Fs): 38Hz

• Recommended Low-Pass Crossover: 90Hz

• Equivalent Compliance Volume (Vas): 20L (0.70 ft³)

• Recommended Sealed Enclosure: 14.2L (0.50 ft³) Per Subwoofer

• Recommended Ported Enclosure: 14.2L (0.50 ft³) Per Subwoofer

• Driver Displacement: 0.9L (0.032 ft³)

• Mounting Depth: 3.66" (93 mm)

• Overall Depth: 4.48" (114 mm)

• Cutout Diameter: 9.25" (235 mm)

• Motor Diameter: 6" (154 mm)

Perfect For

• Pickup Trucks

• Under-Seat Installations

• Compact Cars

• SUVs

• Custom Audio Builds

• OEM Audio Upgrades

• Daily Driver Systems

• Space-Limited Installations

• High-Performance Bass Systems

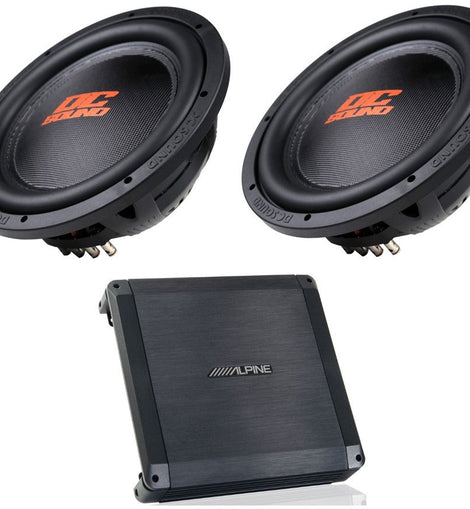

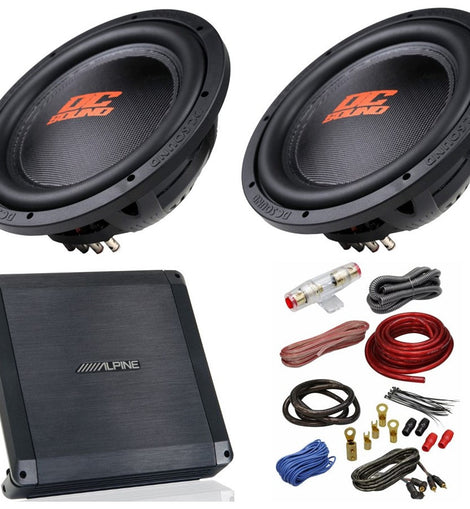

Package Includes

• (1) Alpine BBX-T600 2-Channel Class A/B Amplifier

• (2) DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofers

• (1) Absolute USA KIT4 4-Gauge Amplifier Installation Kit

Warranty

• Alpine BBX-T600: 1-Year Manufacturer's Warranty

• DC Sound DSW2000: 2-Year Manufacturer's Warranty
