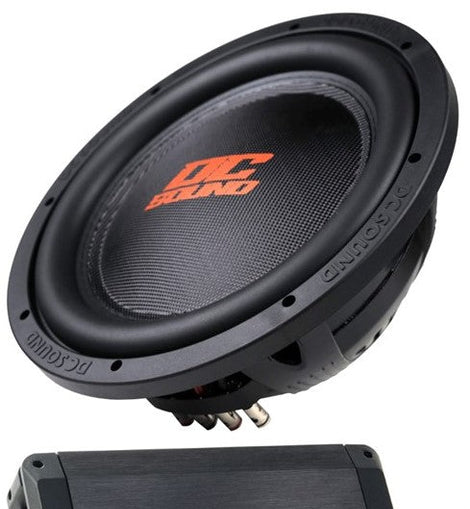

Alpine BBX-T600 2-Channel Class A/B Amplifier with DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofer - 600W Max Amplifier / 700W RMS Subwoofer

Premium car audio package featuring the Alpine BBX-T600 2-channel Class A/B amplifier and the DC Sound DSW2000 DVC4 10-inch shallow-mount dual 4-ohm subwoofer. Designed to deliver clean amplifier power and deep, accurate bass in trucks, SUVs, compact cars, and custom audio systems with limited mounting depth.

Key Features

🔊 COMPLETE AMPLIFIER & SUBWOOFER PACKAGE - Includes (1) Alpine BBX-T600 2-Channel Class A/B Amplifier and (1) DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofer for a powerful bass upgrade.

💥 HIGH-QUALITY ALPINE AMPLIFICATION - Alpine BBX-T600 delivers up to 600 Watts Maximum Output, featuring a MOSFET power supply, variable crossovers, Bass EQ, and Class A/B circuitry for clean, reliable sound.

🚘 ULTRA-SHALLOW SUBWOOFER DESIGN - The DSW2000 features only a 3.66-inch mounting depth, making it perfect for trucks, under-seat installations, compact vehicles, and custom shallow enclosures.

💪 PREMIUM SUBWOOFER CONSTRUCTION - Built with a heavy-duty cast aluminum basket, reinforced paper cone, fiberglass dust cap, high-roll rubber surround, 2.5-inch high-temperature 4-layer copper voice coil, aluminum former, and 62 oz ferrite magnet for outstanding durability and bass performance.

🎵 FLEXIBLE SYSTEM CONFIGURATION - The Dual 4-ohm voice coil design offers multiple wiring options while the amplifier's adjustable high-pass, low-pass, and Bass EQ controls allow precise tuning for optimal sound quality.

Product Description

Upgrade your vehicle's audio system with this premium Alpine BBX-T600 + DC Sound DSW2000 Performance Package. Combining Alpine's trusted Class A/B amplifier technology with the powerful DC Sound DSW2000 shallow-mount subwoofer, this package delivers clean amplification, exceptional bass response, and outstanding reliability.

The Alpine BBX-T600 features a Pulse Width Modulated MOSFET power supply, variable high-pass and low-pass crossovers, adjustable Bass EQ, preamp outputs for system expansion, and comprehensive protection circuitry. Its compact aluminum heat sink allows installation in a wide variety of vehicles while maintaining dependable performance.

The DC Sound DSW2000 DVC4 utilizes a 2.5-inch high-temperature 4-layer copper voice coil, heavy-duty cast aluminum basket, reinforced paper cone, fiberglass dust cap, high-roll rubber surround, and optimized ferrite motor structure to deliver deep, controlled bass with excellent thermal efficiency and long-term reliability.

Whether you're upgrading a factory sound system or building a custom bass setup, this package provides premium components engineered for outstanding sound quality and performance.

General Features

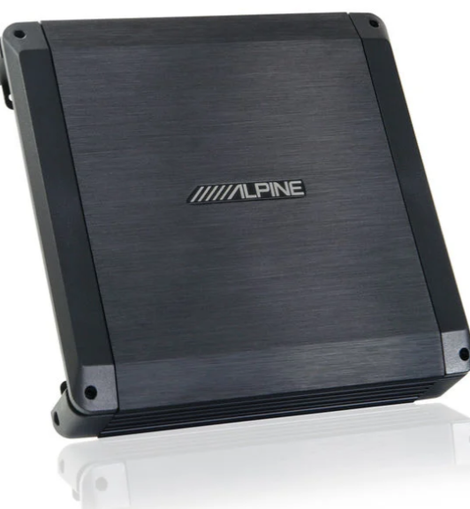

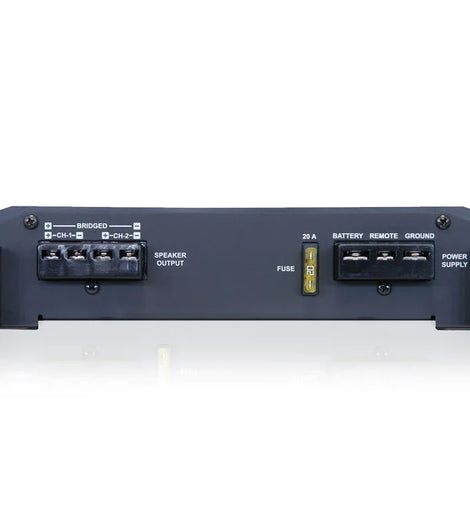

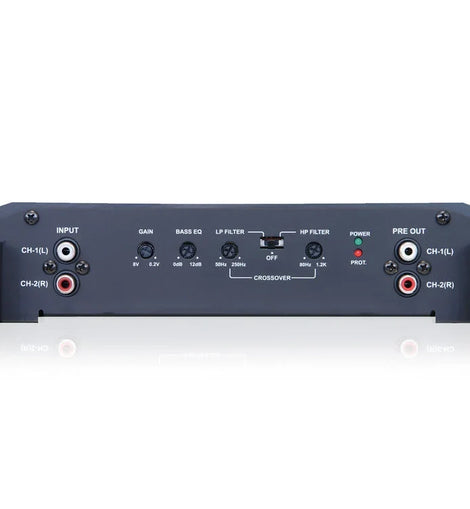

Alpine BBX-T600 Amplifier

• Class A/B 2-Channel Amplifier

• 2-Ohm Stable Operation

• 600 Watts Maximum Total Output

• 50 Watts RMS x 2 @ 4 Ohms

• 70 Watts RMS x 2 @ 2 Ohms

• 130 Watts RMS x 1 Bridged @ 4 Ohms

• Pulse Width Modulated MOSFET Power Supply

• Variable High-Pass Filter (80-1200 Hz)

• Variable Low-Pass Filter (50-500 Hz)

• Variable Bass Boost (0 to +12 dB)

• Preamp Outputs

• LED Power & Protect Indicators

• Soft Start Turn-On

• Heavy-Duty Aluminum Alloy Heat Sink

• Thermal, Overload & Speaker Short Protection

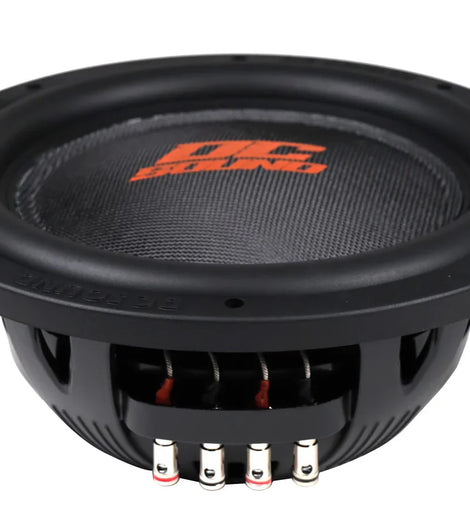

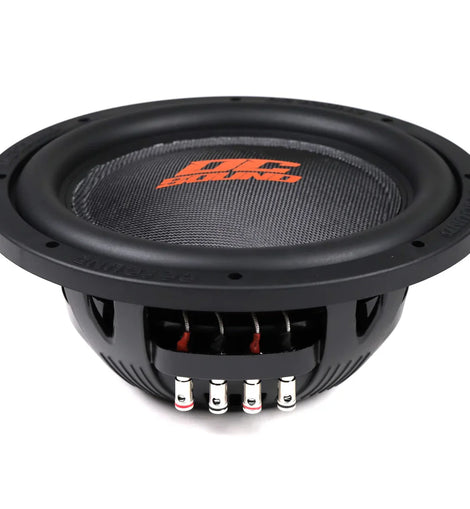

DC Sound DSW2000 DVC4 Subwoofer

• 10" Shallow-Mount Subwoofer

• Dual 4-Ohm Voice Coil

• 700 Watts RMS Power Handling

• 2000 Watts Maximum Power Handling

• Heavy-Duty Cast Aluminum Basket

• 2.5" High-Temperature 4-Layer Copper Voice Coil

• Aluminum Voice Coil Former

• Reinforced Paper Cone

• High-Roll Rubber Surround

• Fiberglass Dust Cap

• 62 oz Ferrite Magnet

• Optimized for Compact Sealed & Ported Enclosures

Specifications

Alpine BBX-T600 Amplifier

• Amplifier Type: Class A/B

• Channels: 2

• Stable Impedance: 2 Ohms Stereo

• RMS Power @ 4 Ohms: 50W × 2

• RMS Power @ 2 Ohms: 70W × 2

• Bridged RMS Power @ 4 Ohms: 130W × 1

• Maximum Output Power: 600 Watts

• Frequency Response: 5 Hz - 50,000 Hz

• Signal-to-Noise Ratio: 95 dB

• Total Harmonic Distortion (THD): <1%

• Input Sensitivity: 0.2V - 8V

• Variable High-Pass Filter: 80-1200 Hz

• Variable Low-Pass Filter: 50-500 Hz

• Variable Bass Boost: 0 to +12 dB

• Fuse Rating: 20A × 1

• Dimensions: 9.84" W × 9.44" L × 2" H

• Weight: 5 lbs

DC Sound DSW2000 DVC4 Subwoofer

• Speaker Size: 10" (254 mm)

• Voice Coil Configuration: Dual 4 Ohms

• RMS Power Handling: 700 Watts

• Maximum Power Handling: 2000 Watts

• Voice Coil Diameter: 2.5" (63.5 mm)

• Voice Coil Construction: 4-Layer Copper

• Voice Coil Former: Aluminum

• Basket Material: Cast Aluminum

• Cone Material: Reinforced Paper

• Surround Material: High-Roll Rubber

• Dust Cap: Fiberglass

• Magnet Structure: Ferrite

• Magnet Weight: 62 oz

Performance

• Frequency Response: 20Hz - 800Hz

• Sensitivity: 84 dB (1W/1M)

• Free Air Resonance (Fs): 38Hz

• Recommended Low-Pass Crossover: 90Hz

• Recommended Sealed Enclosure: 14.2L (0.50 ft³)

• Recommended Ported Enclosure: 14.2L (0.50 ft³)

• Mounting Depth: 3.66" (93 mm)

• Overall Depth: 4.48" (114 mm)

• Cutout Diameter: 9.25" (235 mm)

• Motor Diameter: 6" (154 mm)

Perfect For

• Pickup Trucks

• Under-Seat Installations

• Compact Cars

• SUVs

• Custom Audio Systems

• OEM Audio Upgrades

• Daily Driver Systems

• Space-Limited Installations

• High-Performance Bass Upgrades

Package Includes

• (1) Alpine BBX-T600 2-Channel Class A/B Amplifier

• (1) DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofer

Warranty

• Alpine BBX-T600: 1-Year Manufacturer's Warranty

• DC Sound DSW2000: 2-Year Manufacturer's Warranty
