Alpine BBX-T600 2-Channel Class A/B Amplifier with Dual DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofers - 600W Max Amplifier / 1400W RMS / 4000W Max Subwoofer System

Complete bass upgrade package featuring the Alpine BBX-T600 2-channel Class A/B amplifier and two DC Sound DSW2000 DVC4 10-inch shallow-mount dual 4-ohm subwoofers. Designed for clean amplifier performance, deep bass response, and flexible installation in trucks, SUVs, compact cars, and custom audio systems with limited mounting depth.

Key Features

🔊 COMPLETE DUAL SUBWOOFER SYSTEM - Includes (1) Alpine BBX-T600 2-Channel Class A/B Amplifier and (2) DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofers for a powerful bass upgrade.

💥 1400 WATTS RMS / 4000 WATTS MAX SUBWOOFER SYSTEM - The two DSW2000 subwoofers combine to deliver 1400 Watts RMS and 4000 Watts Maximum Power Handling, producing deep, clean, hard-hitting bass.

🚘 ULTRA-SHALLOW INSTALLATION DESIGN - Each DSW2000 features only a 3.66-inch mounting depth, making these subwoofers ideal for trucks, under-seat enclosures, compact vehicles, and custom shallow-mount applications.

💪 PREMIUM ALPINE CLASS A/B AMPLIFIER - Features a Pulse Width Modulated MOSFET power supply, adjustable high-pass and low-pass crossovers, variable Bass EQ, preamp outputs, and comprehensive protection circuitry for dependable performance.

🎵 BUILT FOR DURABILITY & PERFORMANCE - Each subwoofer features a heavy-duty cast aluminum basket, reinforced paper cone, fiberglass dust cap, high-roll rubber surround, 2.5-inch high-temperature 4-layer copper voice coil, aluminum former, and 62 oz ferrite magnet for exceptional bass output and long-term reliability.

Product Description

The Alpine BBX-T600 + Dual DC Sound DSW2000 Performance Package combines Alpine's proven amplifier technology with two high-performance shallow-mount subwoofers to create a powerful bass system for vehicles with limited installation space.

The Alpine BBX-T600 delivers clean Class A/B amplification through a Pulse Width Modulated MOSFET power supply and includes adjustable high-pass and low-pass crossovers, variable Bass EQ, preamp outputs for future expansion, and advanced protection circuitry to ensure reliable operation.

The two DC Sound DSW2000 DVC4 subwoofers feature 2.5-inch high-temperature 4-layer copper voice coils, heavy-duty cast aluminum baskets, reinforced paper cones, fiberglass dust caps, high-roll rubber surrounds, and optimized ferrite motor structures to deliver deep, controlled bass with excellent thermal efficiency and long-term durability.

Whether you're upgrading a factory sound system or building a custom bass setup, this package delivers premium sound quality and dependable performance.

General Features

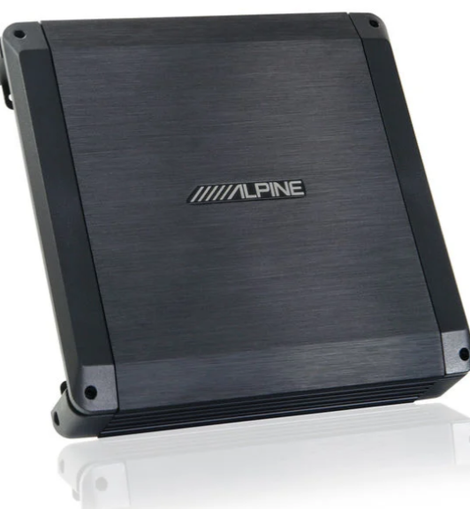

Alpine BBX-T600 Amplifier

• Class A/B 2-Channel Amplifier

• 2-Ohm Stable Operation

• 600 Watts Maximum Total Output

• 50 Watts RMS x 2 @ 4 Ohms

• 70 Watts RMS x 2 @ 2 Ohms

• 130 Watts RMS x 1 Bridged @ 4 Ohms

• Pulse Width Modulated MOSFET Power Supply

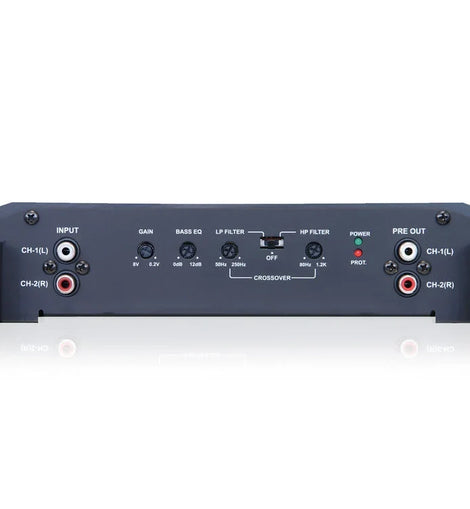

• Variable High-Pass Filter (80-1200 Hz)

• Variable Low-Pass Filter (50-500 Hz)

• Variable Bass Boost (0 to +12 dB)

• Preamp Outputs

• LED Power & Protect Indicators

• Soft Start Turn-On

• Heavy-Duty Aluminum Alloy Heat Sink

• Thermal, Overload & Speaker Short Protection

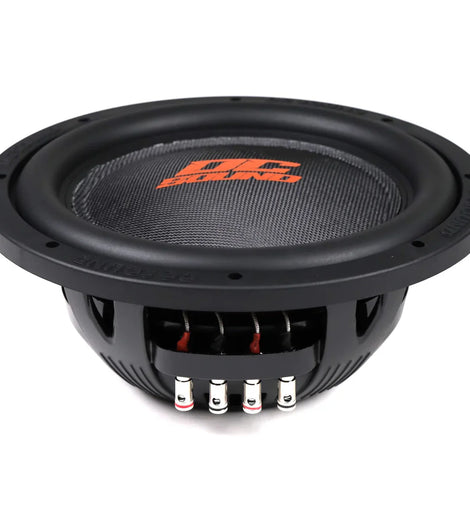

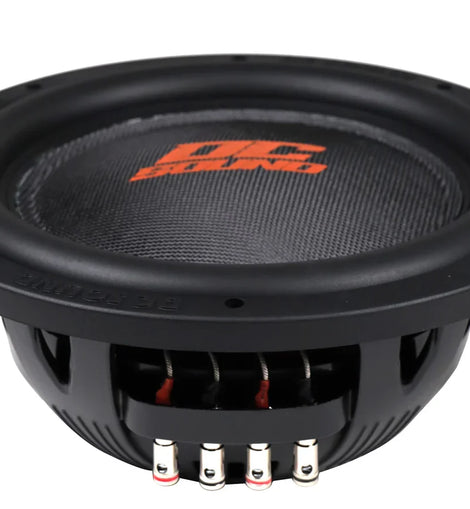

DC Sound DSW2000 DVC4 Subwoofers

• (2) 10" Shallow-Mount Subwoofers

• Dual 4-Ohm Voice Coil Configuration

• 700 Watts RMS Power Handling (Each)

• 2000 Watts Maximum Power Handling (Each)

• Heavy-Duty Cast Aluminum Basket

• 2.5" (63.5 mm) High-Temperature 4-Layer Copper Voice Coil

• Aluminum Voice Coil Former

• Reinforced Paper Cone

• High-Roll Rubber Surround

• Fiberglass Dust Cap

• 62 oz Ferrite Magnet

• Optimized for Compact Sealed & Ported Enclosures

Specifications

Amplifier

• Amplifier Type: Class A/B

• Channels: 2

• Stable Impedance: 2 Ohms Stereo

• RMS Power @ 4 Ohms: 50W × 2

• RMS Power @ 2 Ohms: 70W × 2

• Bridged RMS Power @ 4 Ohms: 130W × 1

• Maximum Output Power: 600 Watts

• Frequency Response: 5Hz - 50,000Hz

• Signal-to-Noise Ratio: 95 dB

• Total Harmonic Distortion (THD): <1%

• Input Sensitivity: 0.2V - 8V

• Variable High-Pass Filter: 80-1200 Hz

• Variable Low-Pass Filter: 50-500 Hz

• Variable Bass Boost: 0 to +12 dB

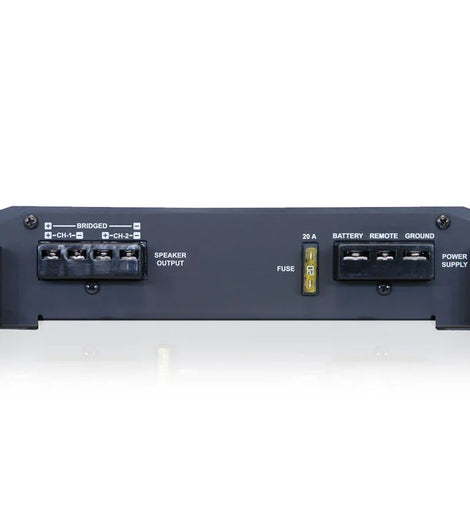

• Fuse Rating: 20A × 1

• Dimensions: 9.84" W × 9.44" L × 2" H

• Weight: 5 lbs

Complete Subwoofer System

• Number of Subwoofers: 2

• Combined RMS Power Handling: 1400 Watts

• Combined Maximum Power Handling: 4000 Watts

Each Subwoofer

• Speaker Size: 10" (254 mm)

• Voice Coil Configuration: Dual 4 Ohms

• RMS Power Handling: 700 Watts

• Maximum Power Handling: 2000 Watts

• Voice Coil Diameter: 2.5" (63.5 mm)

• Voice Coil Construction: 4-Layer Copper

• Voice Coil Former: Aluminum

• Basket Material: Cast Aluminum

• Cone Material: Reinforced Paper

• Surround Material: High-Roll Rubber

• Dust Cap: Fiberglass

• Magnet Structure: Ferrite

• Magnet Weight: 62 oz

Performance

• Frequency Response: 20Hz - 800Hz

• Sensitivity: 84 dB (1W/1M)

• Free Air Resonance (Fs): 38Hz

• Recommended Low-Pass Crossover: 90Hz

• Equivalent Compliance Volume (Vas): 20L (0.70 ft³)

• Recommended Sealed Enclosure: 14.2L (0.50 ft³) Per Subwoofer

• Recommended Ported Enclosure: 14.2L (0.50 ft³) Per Subwoofer

• Driver Displacement: 0.9L (0.032 ft³)

• Mounting Depth: 3.66" (93 mm)

• Overall Depth: 4.48" (114 mm)

• Cutout Diameter: 9.25" (235 mm)

• Motor Diameter: 6" (154 mm)

Perfect For

• Pickup Trucks

• Under-Seat Installations

• Compact Cars

• SUVs

• Custom Audio Builds

• OEM Audio Upgrades

• Daily Driver Systems

• Space-Limited Installations

• High-Performance Bass Systems

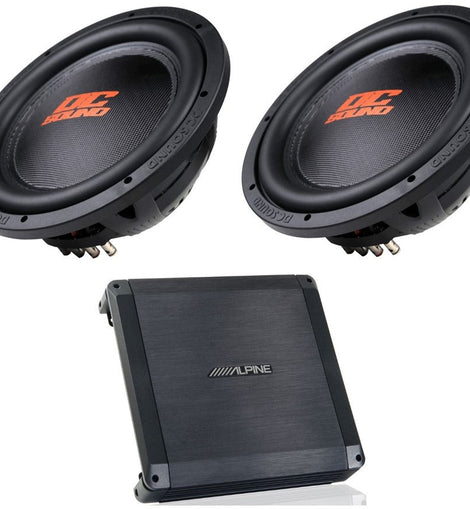

Package Includes

• (1) Alpine BBX-T600 2-Channel Class A/B Amplifier

• (2) DC Sound DSW2000 DVC4 10" Shallow-Mount Dual 4-Ohm Subwoofers

Warranty

• Alpine BBX-T600: 1-Year Manufacturer's Warranty

• DC Sound DSW2000: 2-Year Manufacturer's Warranty
