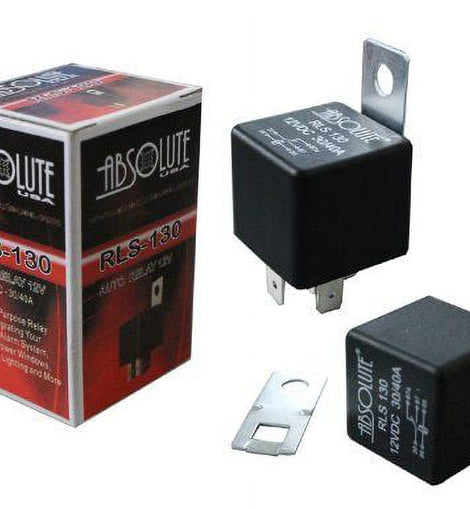

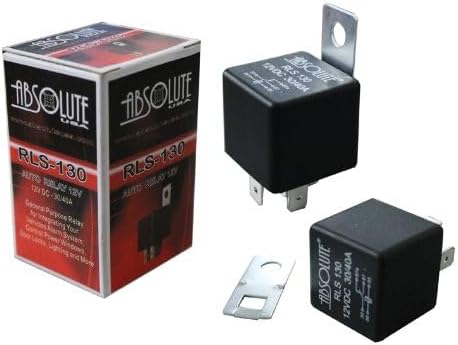

Absolute USA RLS-130 12V 40A Bosch/Tyco Style 5-Pin SPDT Automotive Relay with Metal Mounting Bracket
The Absolute USA RLS-130 is a heavy-duty 12-volt 5-pin SPDT automotive relay designed for high-current switching applications in automotive, marine, RV, powersports, industrial, and 12V electrical systems. Built in the popular Bosch/Tyco-style configuration, the RLS-130 features a rugged housing, integrated metal mounting bracket, and reliable 30/40-amp switching capability for controlling lights, horns, cooling fans, fuel pumps, power windows, door locks, security systems, and other electrical accessories.
Key Features
⚡ HEAVY-DUTY 30/40 AMP RELAY - Handles up to 40A Normally Open (NO) and 30A Normally Closed (NC) loads for dependable high-current switching.
🔌 STANDARD BOSCH/TYCO 5-PIN DESIGN - Universal Bosch/Tyco-style SPDT relay fits most automotive relay sockets and wiring harnesses for easy replacement or new installations.
🚗 VERSATILE 12V AUTOMOTIVE APPLICATIONS - Perfect for controlling auxiliary lighting, LED light bars, horns, cooling fans, fuel pumps, door locks, power windows, alarm systems, and other 12V accessories.
🛡 INTEGRATED METAL MOUNTING BRACKET - Includes a durable metal mounting tab for secure installation in engine bays, fuse panels, and custom electrical systems.
🔧 COMPATIBLE WITH RELAY SOCKETS - Works with Absolute USA SRS103 and SRS105 relay sockets, as well as most standard Bosch-style 5-pin relay harnesses.
Product Description
The Absolute USA RLS-130 12V Automotive Relay is engineered for reliable switching performance in demanding automotive and electrical applications. Featuring a Single Pole Double Throw (SPDT) configuration, this relay allows both Normally Open (NO) and Normally Closed (NC) circuit operation, making it suitable for a wide variety of custom wiring projects.
Its universal Bosch/Tyco-style footprint provides direct compatibility with most standard 5-pin relay sockets, while the integrated metal mounting bracket allows secure installation in vehicles, boats, RVs, motorcycles, off-road vehicles, and industrial equipment.
Designed for long service life and dependable performance, the RLS-130 is ideal for both professional installers and DIY electrical upgrades.
General Features
• 12 Volt DC Automotive Relay
• Bosch/Tyco Style Relay
• Single Pole Double Throw (SPDT)
• 5-Pin Configuration
• Heavy-Duty Metal Mounting Bracket
• 40A Normally Open Contact
• 30A Normally Closed Contact
• High Current Switching Capability
• Compact Industrial Design
• Compatible with Standard Bosch Relay Sockets
• Works with Absolute USA SRS103 & SRS105 Relay Sockets
• Professional Installation Grade
Specifications
Electrical
• Operating Voltage: 12V DC
• Contact Configuration: SPDT (Single Pole Double Throw)
• Contact Rating (NO): 40A @ 14V DC
• Contact Rating (NC): 30A @ 14V DC
• Maximum Operating Voltage: 27V DC
• Maximum Operating Current: 40A
• Coil Insulation Resistance: 100 MΩ
• Dielectric Strength (Coil to Contact): 500 VAC
Performance
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Operate Time: 10 ms
• Release Time: 10 ms
• Mechanical Life: 1,000,000 Operations
• Electrical Life: 100,000 Operations
Physical
• Dimensions: 28 × 28 × 25 mm
• Mounting: Integrated Metal Bracket
Standard Pin Configuration
• Pin 30 - Common Power Input
• Pin 85 - Coil Ground
• Pin 86 - Coil Trigger
• Pin 87 - Normally Open (NO)
• Pin 87a - Normally Closed (NC)
Perfect For
• Automotive Electrical Systems
• Auxiliary LED Lighting
• Light Bars
• Horn Circuits
• Cooling Fans
• Fuel Pumps
• Power Windows
• Door Locks
• Car Alarm Systems
• Marine Applications
• RV Electrical Systems
• Off-Road Vehicles
• Industrial 12V Controls
Package Includes
• (1) Absolute USA RLS-130 12V 40A 5-Pin SPDT Automotive Relay
• Integrated Metal Mounting Bracket
Warranty
1-Year Manufacturer's Warranty
