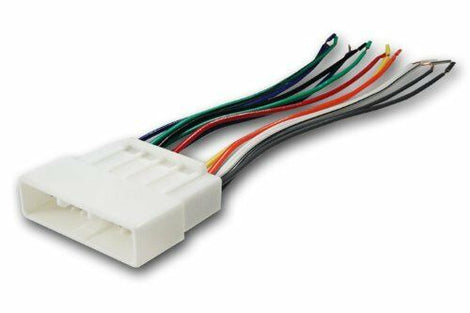

Absolute USA H804/1720 Radio Wiring Harness for Honda/Acura 1986-1998
Absolute USA H804/1720 Radio Wiring Harness for Honda/Acura 1986-1998
Interchange Part Number: American International HWH-804, Scosche HA02B, Metra 70-1720
General Features:
-
T-Harness plugs into the car harness and the OEM Radio
-
Retains factory keyless entry
-
Power/4 Speaker
-
Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
-
Harness will allow for the retention of the factory radio to maintain the factory keyless entry system
-
Compatible with 1996 - 1998 Honda Civic
-
Authorized Internet Dealer
-
1-year Manufacturer's warranty
Compatible Vehicles:
- ACURA CL 1997 1998
- ACURA TL 1996 1998
- ACURA RL 1996 1998
- ACURA Integra 1990 1998
- ACURA Integra 1986 1989
- ACURA Legend 1990 1996
- ACURA Legend 1986 1989
- ACURA Vigor 1992 1994
- HONDA Accord 1994 1997
- HONDA Accord 1993 1993
- HONDA Accord 1990 1992
- HONDA Accord 1986 1989
- HONDA Civic 1996 1998
- HONDA Civic 1992 1995
- HONDA Civic 1986 1991
- HONDA Civic Del Sol 1993 1997
- HONDA CRV 1997 1998
- HONDA CRX 1988 1991
- HONDA CRX 1986 1987
- HONDA Odyssey 1995 1998
- HONDA Prelude 1997 1998
- HONDA Prelude 1992 1996
- HONDA Prelude 1988 1991
- HONDA Prelude 1986 1987
- ISUZU Oasis 1996 1998
Connections:
-
Yellow - 12V Constant
-
Red - 12V Accessory
-
Black - Ground
-
Orange - Dash Light Dimmer/Illumination
-
Green - Left Rear Speaker (+)
-
Green with Black Stripe Left Rear Speaker (-)
-
White - Left Front Speaker (+)
-
White with Black Stripe - Left Front Speaker (-)
-
Purple - Right Rear Speaker (+)
-
Purple with Black Stripe - Right Rear Speaker (-)
-
Gray - Right Front Speaker (+)
-
Gray with Black Stripe - Right Front Speaker (-)
