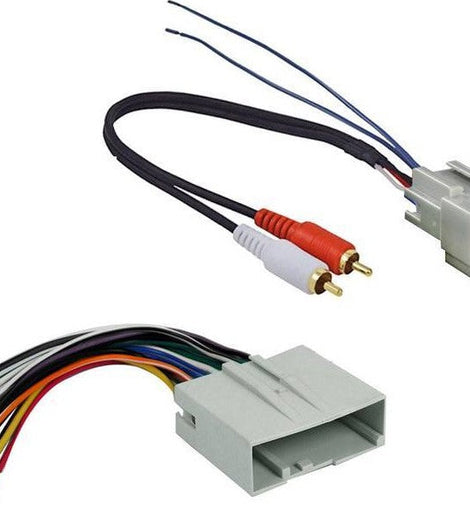

Absolute USA A694-5521 Aftermarket Radio Amplifier Wiring Harness for 2003-up Ford Lincoln Mercury

Interchange Part Number: Metra 70-5521, Scosche FDK11, Xscorpion FD-45520, American International FWH694

If You Are Installing an Aftermarket Radio in Your Car You Need This Harness. This Harness Will Save You Time and Aggravation. To Use It Simply Unplug Your Factory Radio from The Harness in The Dash. On the Aftermarket Radio Wire This in By Matching Up the Colors. Our Harness Meets EIA Color Codes to Take Out the Guess Work. Then Simply Plug the Aftermarket Radio Back into The Factory Plugin The Vehicle. No Cut Wires, If You Sell Your Vehicle Simply Unplug the Aftermarket Radio and Re-Plug in The Factory Radio.

Harness features:

• Will Fit Vehicles with A Factory Premium, Shaker, And Audiophile Sound System
• Amplifier Integration Harness to Plugs to Radio Harness
• Compatible with Select 2003-Up Ford Lincoln Mercury Vehicles
• 2 RCA Plugs Plug into Aftermarket Radio's Pre-Amp Outputs
• One 24-Pin Power Plug and One 8-Pin Subwoofer Plug
• Has Standard EIA Color Code Guide on Package
• 5K Ohm Resistor Can Be Used on The Amp-Remote Wire to Eliminate Turn-On Pop
• Allows for The Install of An Aftermarket Radio Using the Existing Factory Harness
• No Cutting of Factory Wiring Needed

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

Ford

• Crown Victoria 2003-2010
• E-Series 2009-2014
• Edge 2007-2010
• Escape 2008-2012
• Expedition 2003-2014
• Explorer 1995-2010
• Explorer S Trac 2000-2010
• F-150 2004-2014
• F-250 2005-2015
• F-350 2005-2015
• F-450 2005-2015
• Focus 2005-2007
• Freestar 2004-2007
• Freestyle 2005-2007
• Fusion 2006-2010
• Mustang 2005-2009
• Sport Trac 2001-2010
• Taurus 2008-2009
• Taurus X 2008-2009
• Thunderbird 2004-2005

Lincoln

• Aviator 2004-2005
• Mark LT 2005-2008
• MKX w/ OEM Nav 2007-2010
• Navigator w/ OEM Nav 2007-2014
• Towncar 2003-2011
• Zephyr w/ OEM Nav 2006

Mazda

• Tribute 2008-2011

Mercury

• Grand Marquis 2003-2010
• Marauder 2003-2004
• Mariner 2008-2011
• Milan 2006-2009
• Montego 2005-2007
• Monterey 2004-2007
• Mountaineer 2006-2010
• Sable 2008-2009
