Absolute SPW-0-50RD 1/0 Gauge 50 FT Red Xtreme Twisted Power/Ground Battery Wire Cables

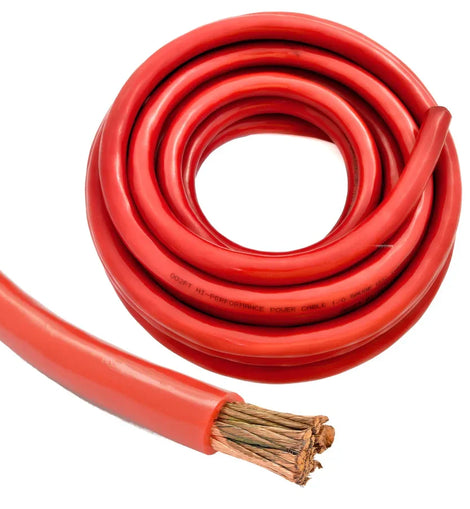

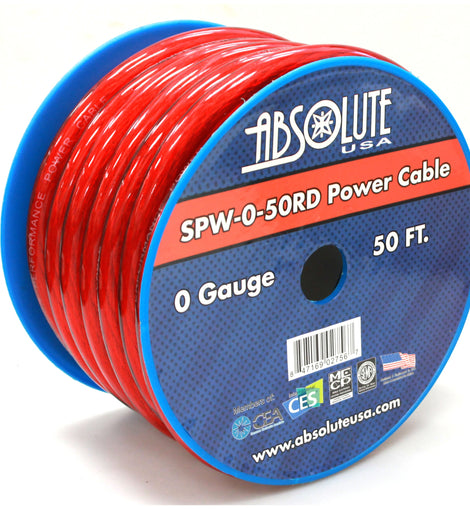

Absolute USA SPW-0-50RD 1/0 Gauge 50 FT Red Xtreme Twisted CCA Power / Ground Battery Wire Cable
The Absolute USA SPW-0-50RD Xtreme Twisted Power /Ground Cable provides 50 feet of heavy-duty 1/0-gauge copper-clad aluminum (CCA) wire designed for high-current automotive, car audio, battery, amplifier, RV, and custom 12V electrical installations.
Featuring an oversized CCA conductor and an ultra-flexible matte PVC jacket, the SPW-0-50RD combines dependable current-carrying capability with the flexibility needed for routing through vehicle interiors and custom installations. The rugged 16mm outer-diameter red PVC jacket provides additional protection while maintaining excellent flexibility across a wide operating temperature range.
The bright red jacket makes this cable especially convenient for identifying positive power connections in automotive and car audio installations.
Key Features
⚡ 1/0 GAUGE HIGH-CURRENT POWER / GROUND CABLE - Heavy-duty 1/0 Gauge cable designed for compatible high-current amplifier, battery, automotive, and custom 12V electrical installations.
📏 50 FT CONTINUOUS LENGTH - Includes 50 feet of red cable, providing plenty of wire for large installations, custom vehicle builds, or multiple wiring projects.
🔌 COPPER-CLAD ALUMINUM (CCA) CONDUCTOR - Combines an aluminum conductor with copper cladding to provide an economical balance of conductivity, flexibility, and value.
💪 OVERSIZED CCA CONSTRUCTION - Features an oversized conductor design intended to provide increased current-carrying capability compared with smaller CCA cable constructions.
🔋 RATED UP TO 250A @ 20 FT - Designed for compatible high-current applications with a stated maximum load rating of 250 amps at 20 feet.
🔴 RED POWER / GROUND CABLE - Red jacket provides easy identification and a clean custom appearance, making it especially convenient for positive battery and amplifier power connections.
🔧 ULTRA-FLEXIBLE PVC JACKET - Flexible matte PVC insulation allows easier routing around bends, through vehicle interiors, and into tight installation areas.
🌡️ WIDE OPERATING TEMPERATURE RANGE - PVC jacket is designed for temperatures ranging from approximately -40°C to 105°C.
🛡️ RUGGED OUTER JACKET - Durable PVC coating helps protect the conductor against abrasion and normal installation wear.
General Features
-
1/0 Gauge Power / Ground Cable
-
50 ft. Continuous Length
-
Red Cable Jacket
-
Copper-Clad Aluminum (CCA) Conductor
-
Oversized CCA Cable Construction
-
Xtreme Twisted Power / Ground Cable
-
High-Current Compatible Design
-
Rated Up to 250A @ 20 ft.
-
Ultra-Flexible Matte PVC Jacket
-
Rugged Protective Outer Coating
-
16mm Overall Cable Diameter
-
Approximately 12mm Conductor/Core Diameter
-
Flexible, Installer-Friendly Construction
-
Suitable for Power or Ground Connections
-
Ideal for Positive Battery & Amplifier Power Wiring
-
Designed for Mobile Audio & Automotive Applications
-
Suitable for Custom 12V Electrical Systems
Specifications
-
Brand: Absolute USA
-
Model: SPW-0-50RD
-
Series: Xtreme
-
Cable Type: Power / Ground Battery Cable
-
Wire Gauge: 1/0 Gauge (0 Gauge)
-
Conductor Material: Copper-Clad Aluminum (CCA)
-
Cable Length: 50 ft.
-
Cable Color: Red
-
Jacket Material: Ultra-Flexible Matte PVC
-
Outer Diameter: 16mm
-
Conductor/Core Diameter: Approximately 12mm
-
Maximum Stated Load: 250A @ 20 ft.
-
Temperature Range: -40°C to 105°C
-
Quantity: 1 Continuous 50 ft. Length
Ideal Applications
-
Car Audio Amplifier Power Wiring
-
Amplifier Ground Wiring
-
Battery Power Connections
-
Battery Ground Connections
-
High-Power Car Audio Systems
-
Distribution Blocks
-
Automotive Electrical Upgrades
-
Cars & Trucks
-
SUVs
-
RV Electrical Systems
-
Custom 12V Electrical Systems
-
Professional Car Audio Installations
-
DIY Audio Installations
-
Custom Vehicle Builds
Package Includes
-
(1) 50 ft. Continuous Length of Absolute USA SPW-0-50RD 1/0 Gauge Red CCA Power / Ground Cable
