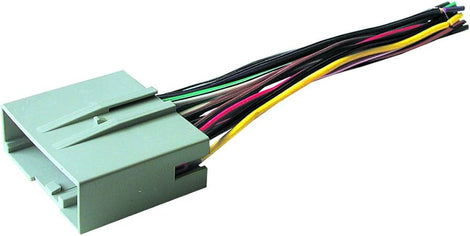

Absolute USA H692/5520 Radio Wiring Harness Compatible Fit Ford/Lincoln/Mercury/Hyundai 2003-2010 Power 4 Speaker (70-5520, FWH-692)

General Features:

• For select 2003 - 2010 Ford, Lincoln, Mercury vehicles
• Connection Harness Plugs into the OEM harness and provides connections for an aftermarket car radio
• Includes 24 Pin factory plug
• Power and 4-Speaker connections
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No cutting of factory wiring needed
• ABS plastic for maximum reliability
• Factory OEM quality

Wire Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange with White Stripe - (+) Illumination
• Blue with Green Stripe - Ground (Maurader), clock (Others)
• Blue with Yellow Stripe - PTA (Expedition)
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)

Vehicles Fitments:

Ford:

• 2003 - 2010 Crown Victoria
• 2009 - 2010 Econoline
• 2004 - 2006 Expedition without navigation
• 2003 Late production Expedition without navigation
• 2009 - 2010 Explorer
• 2006 - 2008 Explorer
• 2009 - 2010 Explorer Sport Trac
• 2007 - 2008 Explorer Sport Trac
• 2008 - 2010 F-250 / F-350 / F-450 / F-550
• 2005 - 2007 F-250 / F-350 / F-450 / F-550
• 2009 - 2010 F-150 XL without package plus
• 2007 - 2008 F-150
• 2004 - 2006 F-150
• 2005 - 2007 Five Hundred
• 2005 - 2007 Focus
• 2004 - 2007 Freestar
• 2005 - 2007 Freestyle
• 2006 - 2009 Fusion
• 2008 Mustang early production
• 2005 - 2007 Mustang
• 2008 - 2009 Taurus
• 2004 - 2005 Thunderbird

Hyundai:

• 2006 - 2008 Sonata

Land Rover:

• 2005 Freelander

Lincoln:

• 2003 - 2006 LS without navigation
• 2003 - 2006 Navigator without navigation and without THX
• 2003 - 2010 Town Car without navigation and without THX

Mercury:

• 2003 - 2010 Grand Marquis
• 2003 - 2004 Marauder with Alpine radio
• 2006 - 2009 Milan
• 2005 - 2007 Montego
• 2004 - 2007 Monterey
• 2009 - 2010 Mountaineer
• 2006 - 2008 Mountaineer
• 2008 - 2009 Sable
