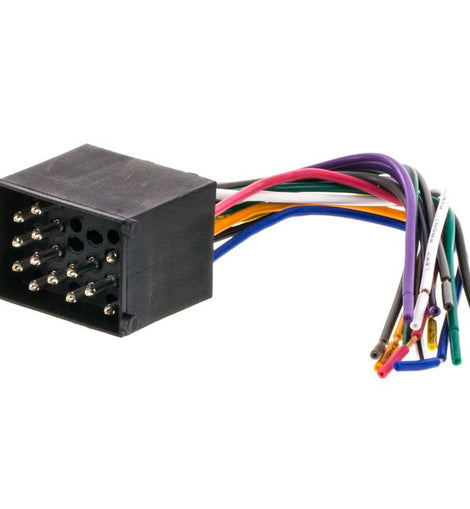

Absolute AWH100 (70-8590) Harness for 1987-2005 for Select BMW Vehicles
Interchange Harness Part: Metra 70-8590, Scosche BW01B, American International BWH-470
General Features:
- Speaker Wiring Harness
- For Non-Amplified Vehicles Only
- 17-Pin Plug Plugs Into Factory Radio
- Works With Select 1987-2005 BMW Vehicles
- It provides Power And 4 Speakers
- Heat Resistant For Lasting A Lifetime
- Allows Installation Of Aftermarket Radio Using Factory Wiring And Connector
- High Quality, ABS Plastic Molded Connector For The Perfect Fit
- Made With The Highest Quality And Precision Out Of Any Other Brand
- Pre-Stripped To Make Installation Quick And Easy
- No Cutting Of Factory Wiring Needed
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Blue - Power Antenna
- Orange - Dash Light Dimmer/Illumination
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
Compatibility Vehicles:
BMW:
- 1990-2005 3 Series
- 1990-2001 5 Series
- 1987-2001 7 Series
- 2000-2001 X5
- 1996-2001 Z3
