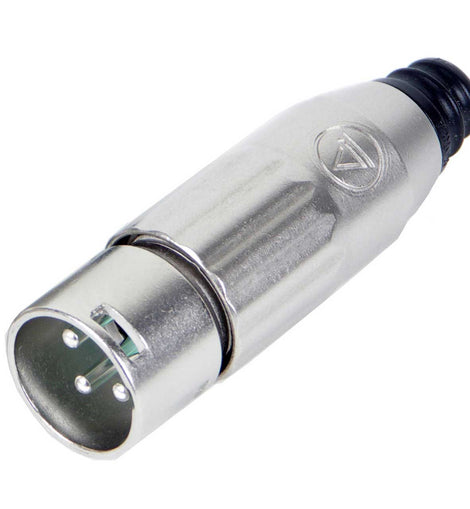

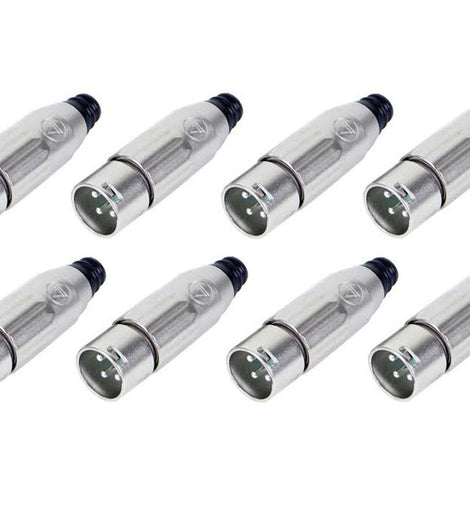

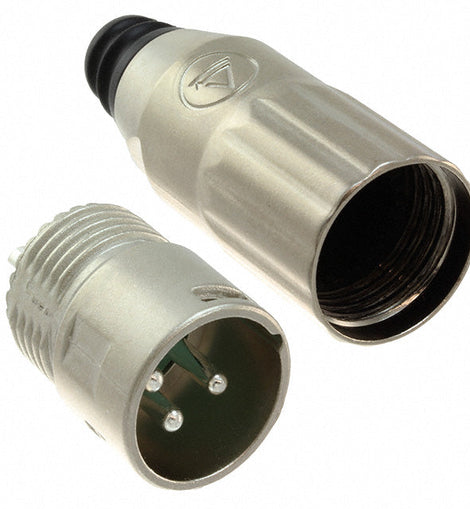

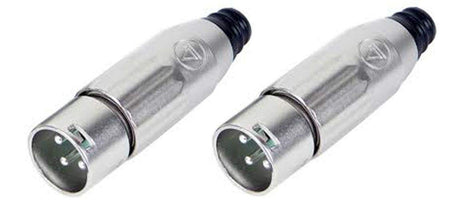

8 Switchcraft AAA3MZ AAA Series 3 Pin XLR Male Cable Mount, Silver Pins / Nickel Metal

Configuration

• Number of Conductors: 3
• Product Line: QG
• Mounting Type: Cord
• Mounting Feature: Chuck-Style Strain Relief
• Gender: Male
• Contact Size: 14 AWG
• Termination Style: Solder Cup
• Contact Plating: Silver
• Color: Nickel
• Locking: Locking
• Handle Material: Zinc
• Packaging Type: Bulk
• Standard Connector Type: XLR

Electrical

• Contact Resistance: 0.05 Ohms
• Dielectric Withstanding Voltage: 1000 Volts
• Insulation Resistance: 1000 MOhms
• Current Rating: 15 Amps

Mechanical

• Operating Force: 7 lbs
• Coupling Locking Style: Button Latch

Environmental

• Shielding: Shielded

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Dimensional

• Cable Opening: 0.22 in

Material

• Contact Material: Copper Alloy
• Contact Plating Type: Silver
• Insert Material Type: Molded Thermoplastic
