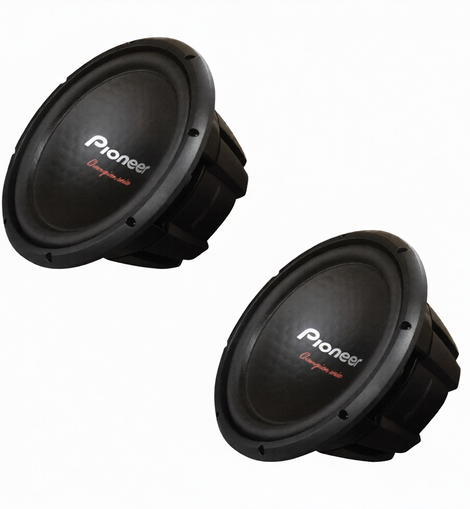

2 Pioneer TS-A301D4 1600W 12" Champion Series Dual 4-ohm Car Subwoofer
2 Pioneer TS-A301D4 1600W Peak (500W RMS) 12" Champion Series Dual 4-ohm Car Subwoofer
The Champion Series subwoofers have evolved from Pioneer's award-winning "SPL Champion Edition" lineup, known for its deep, powerful bass response. The TS-A301D4 12" dual-voice-coil component subwoofer features a redesigned large and powerful motor assembly for improved efficiency and sensitivity. The subwoofer baskets are optimized with a reinforced structural design to enhance strength and reduce vibration, delivering excellent sound quality. This subwoofer has a continuous power of 500 watts and a peak power of 1,600 watts. It features an advanced 2-piece cone with a highly rigid, durable Honeycomb IMPP™ composite structure and a rigid drive cone, delivering high output levels with reduced distortion.
General Features:-
12" Dual 4 ohm Champion Series Subwoofer
-
Power Handling:
-
Peak: 1600 watts
-
RMS: 500 watts
-
Injection Molded Polypropylene Composite Cone
-
Rolled Elastic Polymer Surround
-
3" High Temperature Copper Voice coil
-
11.3 mm Xmax
-

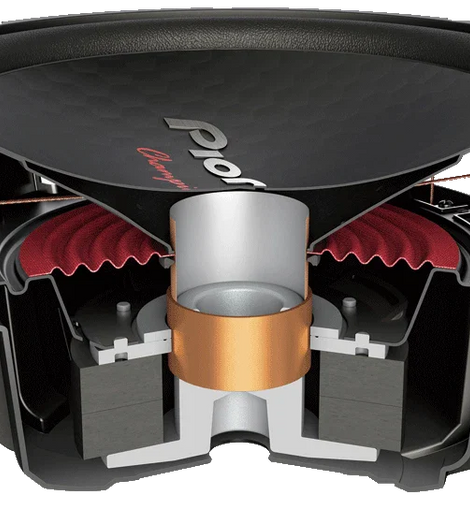

90 oz. Double-Stacked Ferrite Magnet Motor Structure
-

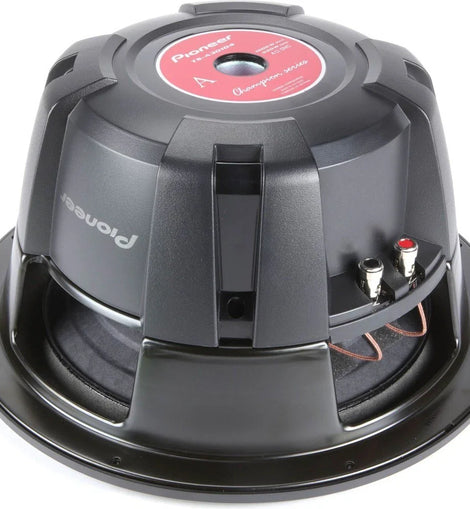

Push-type wire terminal connections
-
Copper voice coil and aluminum voice coil bobbin
-
ABS installation ring material
-
Cellulose fiber drive cone material
-
Polycotton damper material
-
Polypropylene center cap material
-
Metal basket material
-
Frequency Response: 20 - 1600 Hz
-
Resonance Frequency (Fs): 38 Hz
-
Sensitivity: 92 dB
-
Recommended sealed box volume: 0.85 cubic feet - 1.75 cubic feet
-
Recommended ported box volume: 1.25 cubic feet - 2 cubic feet
-
Top-mount depth: 6.125"
-
Cutout diameter: 11.125"
