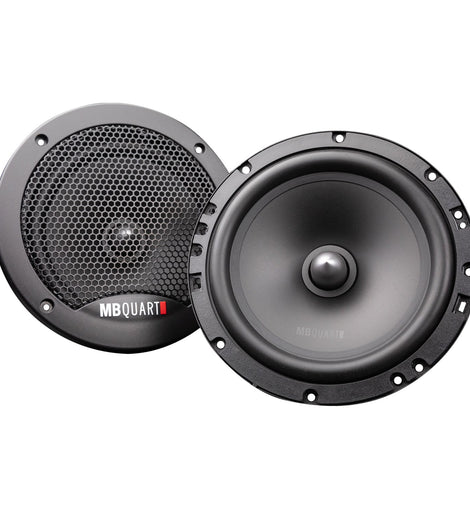

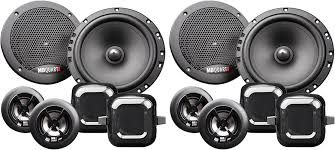

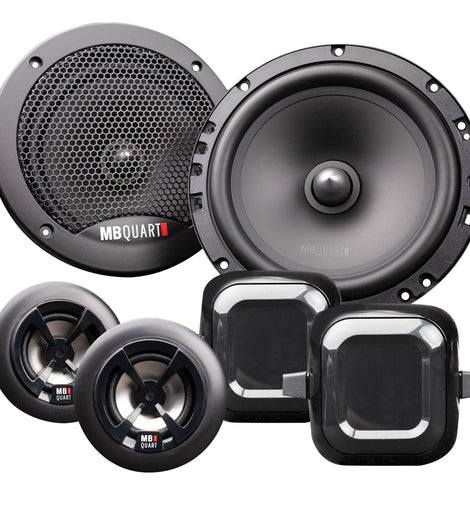

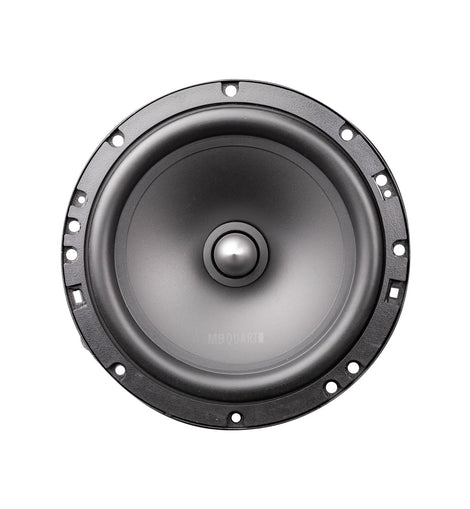

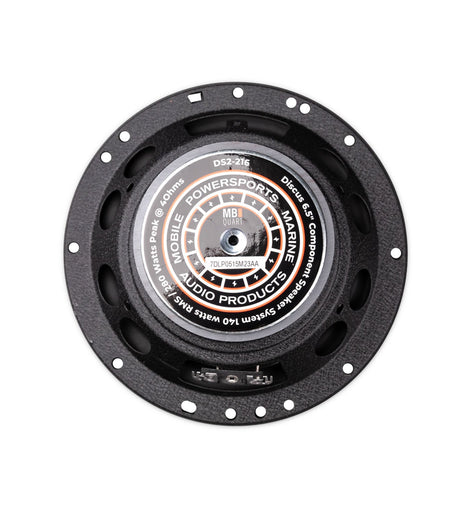

MB Quart DS2-216 Discus 6.5-inch component car speaker system with aluminum inverted dome tweeters and butyl rubber surrounds.

General Features:

• Compatible Vehicle Fitment
  Universal

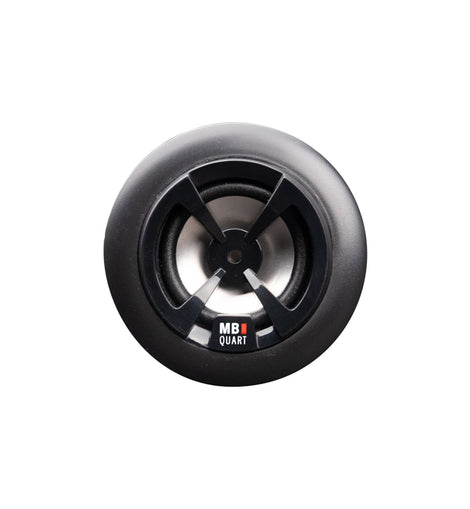

• Tweeters
  Aluminum inverted dome tweeters deliver great sound with increased reliability.

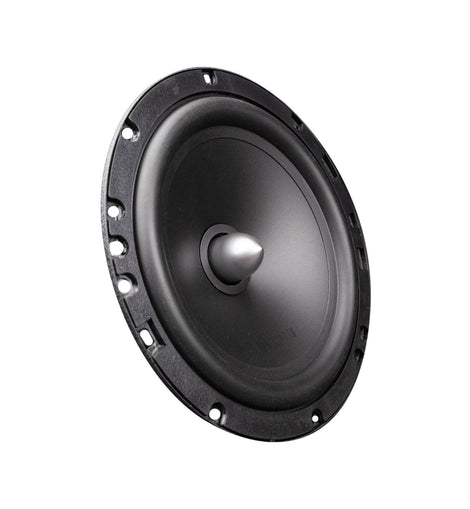

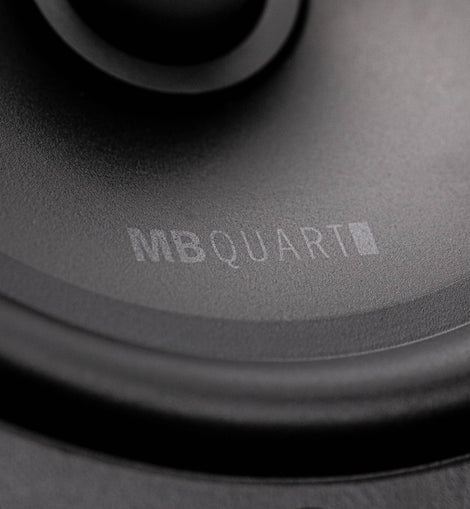

• Cone Material
  Lightweight thermal-formed polypropylene cones enable faster midrange response.
• Surround / Cone Coupling
  Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
• Voice Coil / Former Assembly
  Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat.

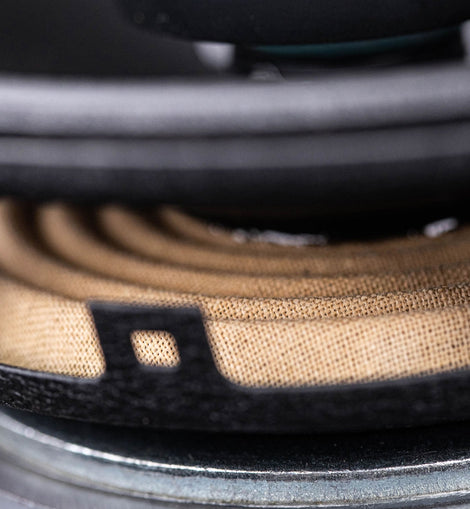

• Spider
  Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
• Cooling System
  Over-coil cooling system allows air exchange over the voice coil through the spider.

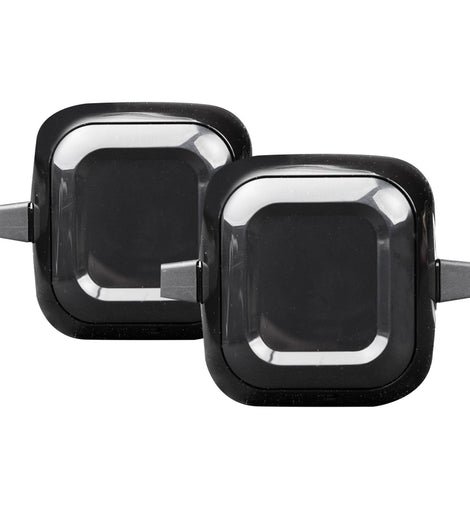

• External Component Crossover
  External Passive Cauer topology Butterworth filter crossover for a smooth transition of frequencies from midrange/midbass to the tweeter element designed into a compact crossover housing that can be easily hidden in the installation.
• Frame
  Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
• Motor
  Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application.

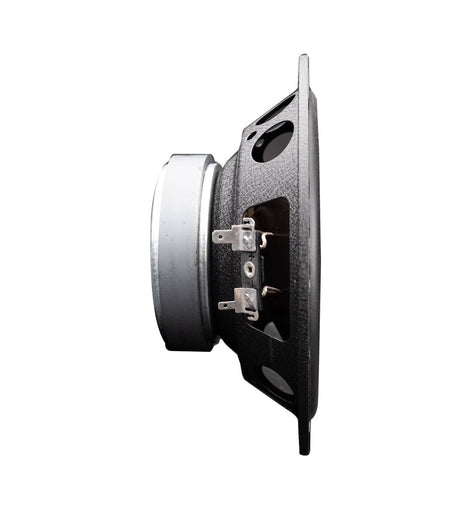

• Connectors
  Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications.

Specifications:

• Type
  Speaker
• Brand
  MB Quart
• Series
  Discus
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Speaker RMS Power Handling (watts)
  70/140 Each & System
• Speaker Peak Power Handling (watts)
  140/240 Each & System
• Speaker Impedance (ohms)
  4
• Speaker Frequency Response
  55Hz-20kHz
• Speaker Sensitivity
  88dB
• Speaker Crossover Slope
  12dB/octave
• Speaker Mounting Diameter / Cut Out (in)
  5.59
• Speaker Outside Diameter (in)
  6.5
• Speaker Mounting Depth / Chassis Depth (in)
  2.12
• Speaker Size (in)
  6.5
