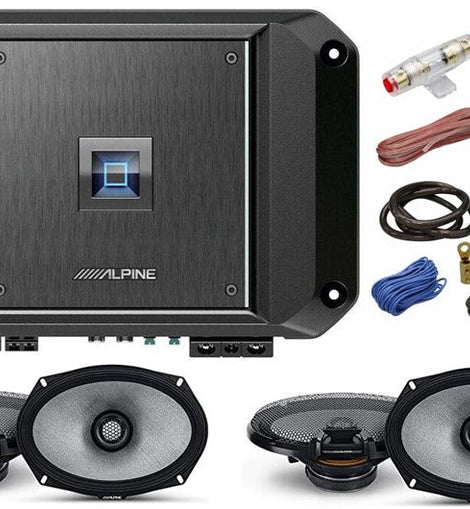

2 Pair Alpine R2-S69 300W 6x9" Speakers + R2-A60F 4-Channel Amplifier + Amp Kit
2 Pair Alpine R2-S69 300W 6x9" Car Audio 2-Way Speakers + Alpine R2-A60F 4-Channel Amplifier + Absolute KIT4B 4 Gauge Amp Kit
Alpine R2-A60F R-Series 4-Channel Power Density Amplifier 600 Watts RMS
HI-RESOLUTION AUDIO COMPLIANT
HI-RESOLUTION AUDIO COMPLIANT
The R-Series amplifiers utilize Alpine’s advanced amplifier platform. This platform takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control technology. Initially launched in the premium X-Series amplifiers, it produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers as high-resolution Audio compliant.
THE LOUDEST FAMILY ON THE BLOCK
The “R” line of speakers and subwoofers has a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. In addition to their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience.
General Features:
General Features:
- Alpine R2-A60F
- Alpine R-Series 4-Channel Power Density Amplifier
- RMS Power Output:
- 100 Watts x 4 @ 4 Ohm
- 150 Watts x 4 @ 2 Ohm
- 300 Watts x 2 @ 4 Ohms Bridged
- Class-D Amplifier
- Frequency Response: 15 Hz - 45 kHz
- S/N ratio: 87dB (ref: 1W into 4 ohms), >106dB (ref: rated power into 4 ohms)
- Only 46 degrees of phase shift
- Hi-Resolution Audio Compliant
- Designed to match perfectly with the R-Series subwoofers (12, 10, and 8-inch sizes available) and the new R-Series speakers.
- Fuse Rating: 30A x 2
- Approximate Weight: 11 lbs
- Dimensions: 10-3/4" W x 2-1/16" H x 10" D
- Authorized Dealer
- 1-year Manufacturer's Warranty
Alpine R2-S69 6x9 R-Series High-Resolution Coaxial Speakers, Pair
Engineered to deliver crisp highs, rich mids, and deep lows, the Next-Gen R-Series R2-S69 Speakers will elevate your music for a deafening and fun sound experience.
General Features:
- 6" x 9" 2-way Coaxial Car Speakers
- Peak Power Handling: 600 watts per set / 300 watts on each side
- RMS Power Handling: 200 watts per set / 100 watts on each side
- Glass Fiber cone material
- High-Amplitude Multi-Roll (HAMR) speaker surround
- 1" Magnesium Hard Dome tweeters
- Ferrite magnet motor structure
- Two premium-grade crossover networks
- Top-mount Depth: 2.99"
- Cutout Dimensions: 5.86 x 8.66
- Impedance: 4 ohm
- Frequency Response: 60 - 40000 Hz
- Sensitivity: 88 dB
- Protective open mesh grille pair included
- Hi-Res Audio certified
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
What's in the R2-S69 Package:
-
R2-S69 owner's manualTwo 2-way Speakers
-
2 Bottom mount brackets
-
2 Grilles
-
Eight 1-1/8" Screws
-
Eight M4x60mm Machine screws (with split lock washers attached)
-
8 Split lock washers
-
8 Flat washers
-
Eight M4 Hex nuts
-
8 Speed clips
-
Warranty information
-
Important Notice
-
Online product registration information
- Template and specs on box
