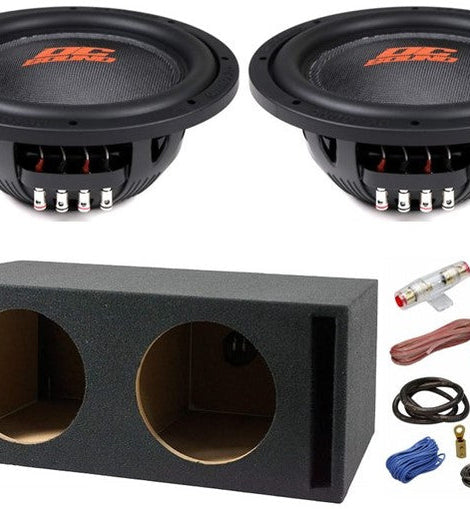

DC Sound Dual DSW2500 DVC4 12" Shallow-Mount Subwoofer Package with VEGD12 Dual 12" Ported MDF Enclosure & KIT4 4-Gauge Amplifier Wiring Kit - 1600W RMS / 5000W Max Power

Complete high-performance bass package featuring two DC Sound DSW2500 DVC4 12-inch shallow-mount dual 4-ohm subwoofers, an Absolute USA VEGD12 dual 12-inch ported MDF enclosure, and an Absolute USA KIT4 4-gauge amplifier installation kit. Designed to deliver deep, powerful bass while fitting trucks, SUVs, compact cars, and custom audio systems where mounting depth is limited.

Key Features

🔊 COMPLETE DUAL 12-INCH PORTED BASS PACKAGE - Includes (2) DC Sound DSW2500 DVC4 12" Shallow-Mount Dual 4-Ohm Subwoofers, (1) Absolute USA VEGD12 Dual 12" Ported MDF Enclosure, and (1) Absolute USA KIT4 4-Gauge Amplifier Installation Kit for a complete, installation-ready bass system.

💥 1600 WATTS RMS / 5000 WATTS MAX POWER - Dual DSW2500 subwoofers combine to deliver 1600 Watts RMS and 5000 Watts Maximum Power Handling, producing deep, hard-hitting bass with exceptional clarity, output, and impact.

🚘 ULTRA-SHALLOW INSTALLATION DESIGN - Each subwoofer features a compact 4.33-inch mounting depth, making this package ideal for trucks, under-seat installations, SUVs, compact vehicles, and custom shallow-mount audio systems.

🎵 PORTED MDF ENCLOSURE FOR MAXIMUM BASS OUTPUT - The VEGD12 precision-tuned slot-ported enclosure increases efficiency and low-frequency response, delivering louder, deeper bass than comparable sealed enclosures.

🧰 HEAVY-DUTY 4-GAUGE INSTALLATION KIT - Includes the Absolute USA KIT4 4-Gauge Amplifier Wiring Kit with premium power and ground cables, RCA interconnects, speaker wire, fuse holder, remote turn-on wire, and installation accessories for dependable amplifier performance.

Product Description

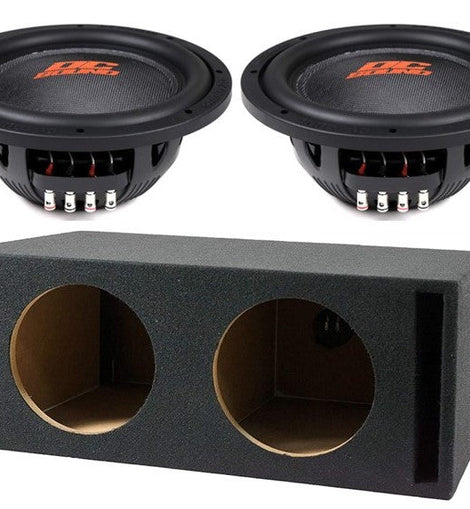

The DC Sound Dual DSW2500 Complete Ported Bass Package combines two high-performance DSW2500 DVC4 12-inch shallow-mount subwoofers, the Absolute USA VEGD12 dual 12-inch ported enclosure, and the Absolute USA KIT4 amplifier installation kit to create a complete, high-output bass solution for virtually any vehicle.

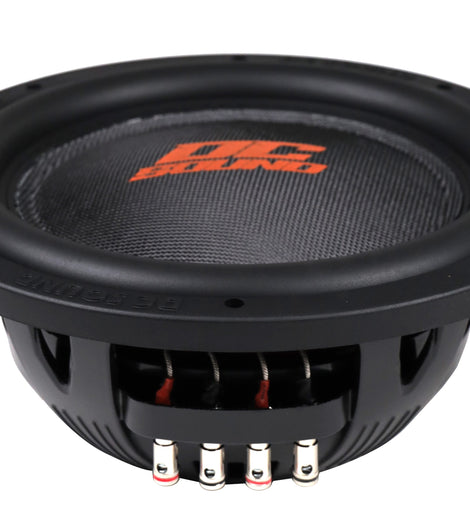

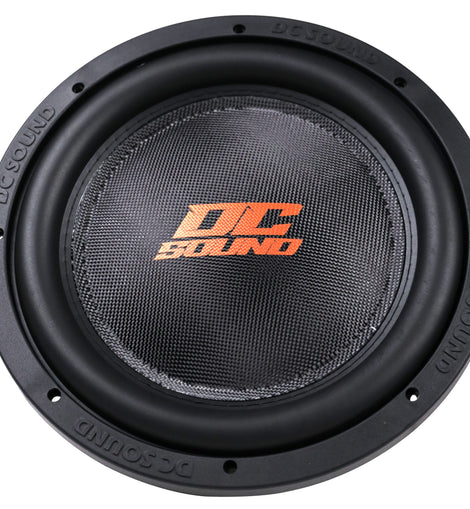

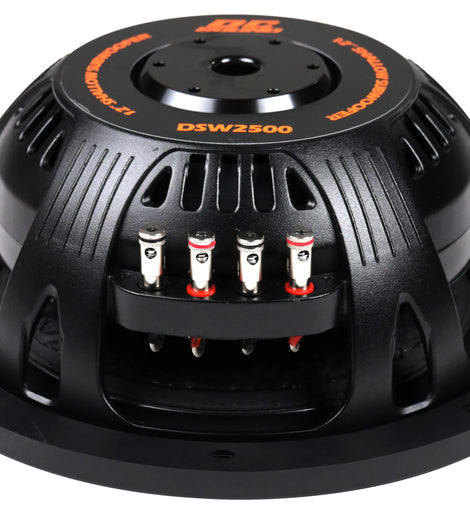

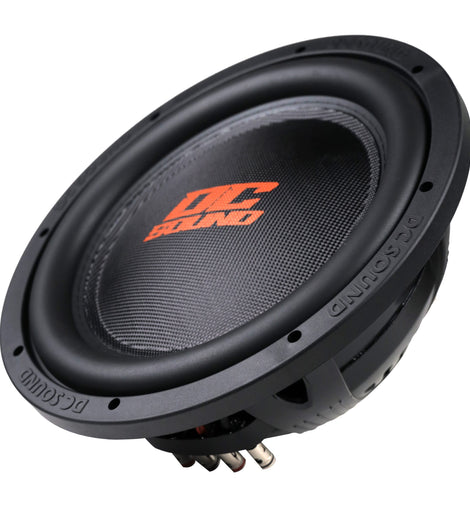

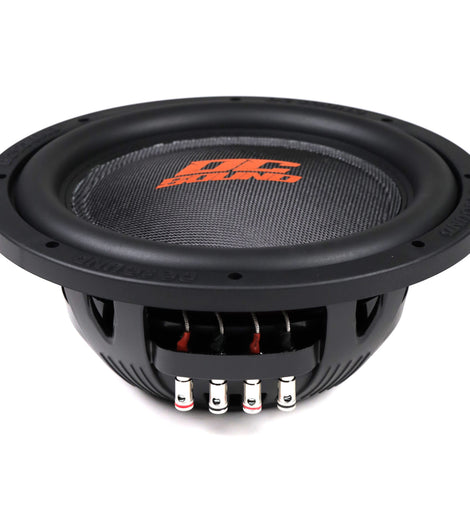

Each DSW2500 features a 2.5-inch high-temperature 4-layer copper voice coil wound on an aluminum former for superior thermal efficiency and dependable high-power performance. The heavy-duty cast aluminum basket, reinforced paper cone, fiberglass dust cap, high-roll rubber surround, and optimized ferrite motor structure work together to produce deep, accurate bass with minimal distortion.

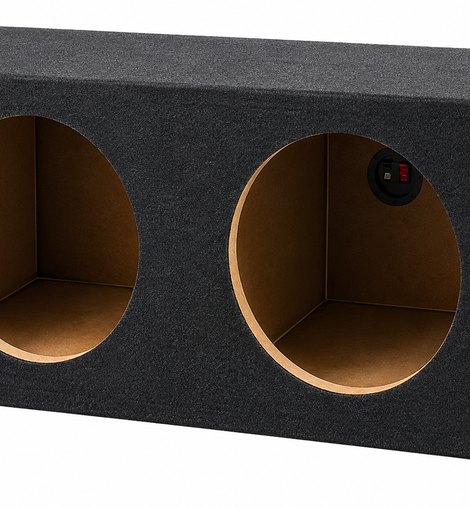

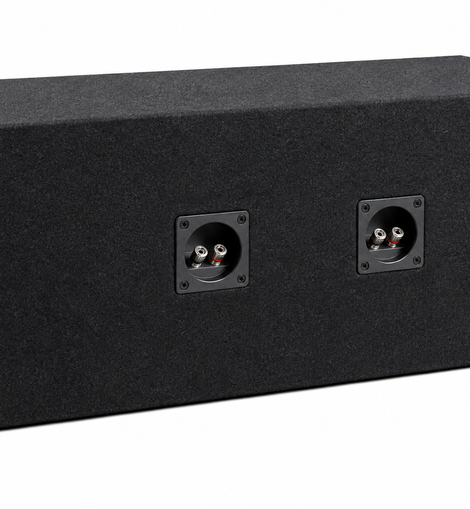

The included VEGD12 dual 12-inch ported enclosure is constructed from rugged 3/4-inch MDF and features precision-tuned slot ports that maximize low-frequency output while maintaining tight, controlled bass response. Covered in premium automotive-grade black carpet and equipped with spring-loaded speaker terminals, it provides excellent durability and a professional appearance.

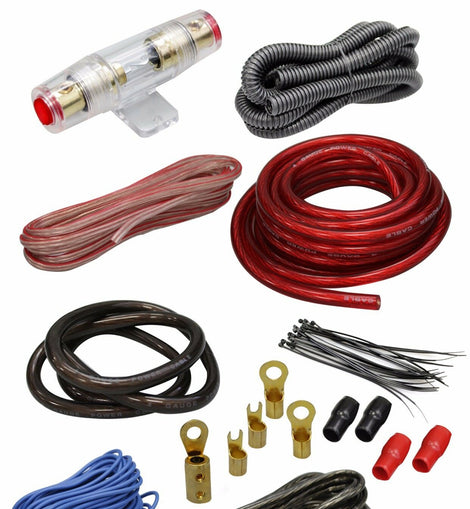

The included Absolute USA KIT4 4-Gauge Amplifier Installation Kit supplies heavy-duty power and ground wiring with premium installation accessories, making it ideal for higher-power amplifier installations that require increased current capacity and reduced voltage drop.

Whether you're upgrading a truck, SUV, compact vehicle, or custom car audio build, this complete package delivers exceptional bass performance, premium components, and professional installation hardware.

General Features

DC Sound DSW2500 DVC4 Subwoofers

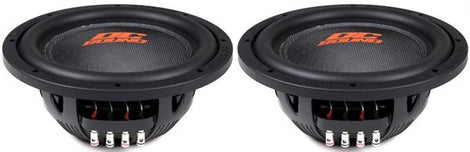

• (2) 12" Shallow-Mount Car Subwoofers

• Dual 4-Ohm Voice Coil Configuration

• 800 Watts RMS Power Handling (Each)

• 2500 Watts Maximum Power Handling (Each)

• Ultra-Shallow Mount Design

• Heavy-Duty Cast Aluminum Basket

• 2.5" (63.5 mm) High-Temperature 4-Layer Copper Voice Coil

• Aluminum Voice Coil Former

• Ferrite Magnet Structure

• 62 oz Magnet

• Reinforced Paper Cone

• High-Roll Rubber Surround

• Fiberglass Dust Cap

• Excellent Thermal Dissipation

• Optimized for Compact Sealed & Ported Enclosures

Absolute USA VEGD12 Enclosure

• Dual 12" Slot-Ported Subwoofer Enclosure

• Heavy-Duty 3/4" MDF Construction

• Precision-Tuned Slot Port Design

• Premium Automotive Black Carpet Finish

• Spring-Loaded Speaker Terminals

• Designed for Dual 12" Shallow-Mount Subwoofers

Absolute USA KIT4 Amplifier Installation Kit

• 4-Gauge Power Cable

• 4-Gauge Ground Cable

• RCA Interconnect Cable

• Speaker Wire

• Fuse Holder & Fuse

• Remote Turn-On Wire

• Ring Terminals

• Complete Installation Accessories

Specifications

Complete System

• Number of Subwoofers: 2

• Combined RMS Power Handling: 1600 Watts

• Combined Maximum Power Handling: 5000 Watts

Each Subwoofer

• Speaker Size: 12" (304.8 mm)

• Voice Coil Configuration: Dual 4 Ohms

• RMS Power Handling: 800 Watts

• Maximum Power Handling: 2500 Watts

• Voice Coil Diameter: 2.5" (63.5 mm)

• Voice Coil Construction: 4-Layer Copper

• Voice Coil Former: Aluminum

• Basket Material: Cast Aluminum

• Cone Material: Reinforced Paper

• Surround Material: High-Roll Rubber

• Dust Cap: Fiberglass

• Magnet Structure: Ferrite

• Magnet Weight: 62 oz

Performance

• Frequency Response: 20Hz - 600Hz

• Sensitivity: 85 dB (1W/1M)

• Free Air Resonance (Fs): 38Hz

• Recommended Low-Pass Crossover: 90Hz

• Equivalent Compliance Volume (Vas): 20L (0.70 ft³)

Recommended Enclosures

• Recommended Sealed Enclosure: 28L (1.0 ft³) Per Subwoofer

• Recommended Ported Enclosure: 28L (1.0 ft³) Per Subwoofer

• Driver Displacement: 0.93L (0.033 ft³)

Installation Dimensions

• Mounting Depth: 4.33" (110 mm)

• Overall Depth: 5.0" (129 mm)

• Cutout Diameter: 10.79" (274 mm)

• Motor Diameter: 6.3" (160 mm)

Perfect For

• Pickup Trucks

• Under-Seat Installations

• Compact Cars

• SUVs

• Custom Audio Builds

• Daily Driver Systems

• High-Performance Car Audio Systems

• High SPL Installations

• OEM Audio Upgrades

• Bass Enthusiasts

Package Includes

• (2) DC Sound DSW2500 DVC4 12" Shallow-Mount Dual 4-Ohm Subwoofers

• (1) Absolute USA VEGD12 Dual 12" Ported MDF Empty Subwoofer Enclosure

• (1) Absolute USA KIT4 4-Gauge Amplifier Installation Kit

Warranty

2-Year Manufacturer's Warranty
