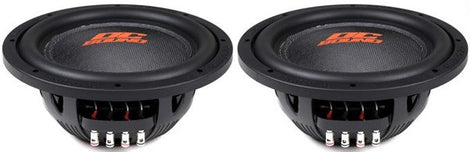

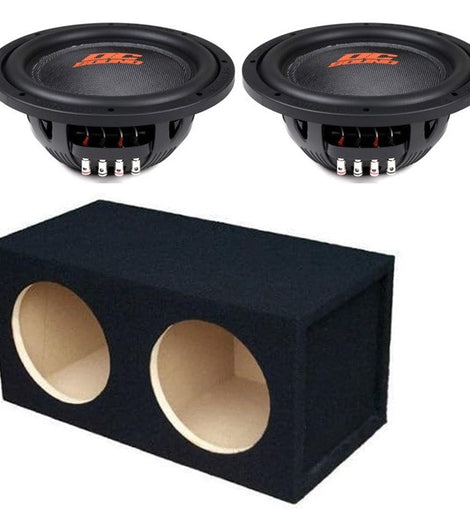

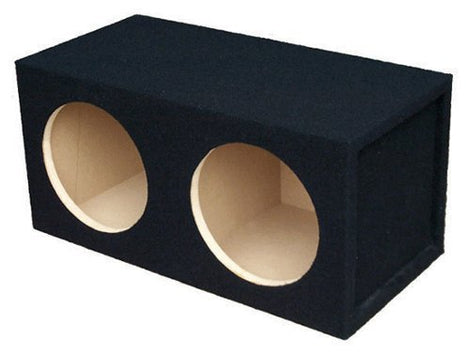

2 DC S oun d DSW 2500 Fiber Glass 12" Shallow-Mount Subwoofer 2500 Watts Dual 2.5" Voice Coil 4-Ohm + DSS12 Double 12" MDF Enclosure Empty Box

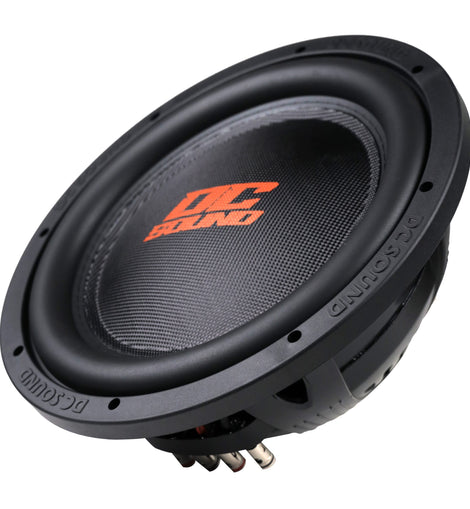

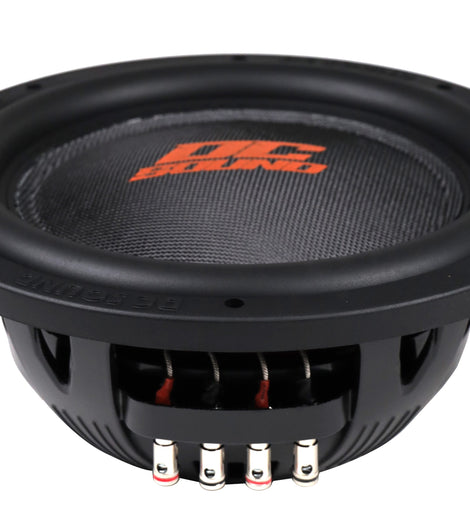

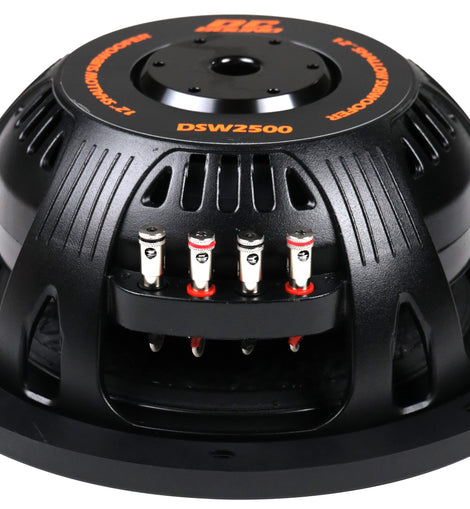

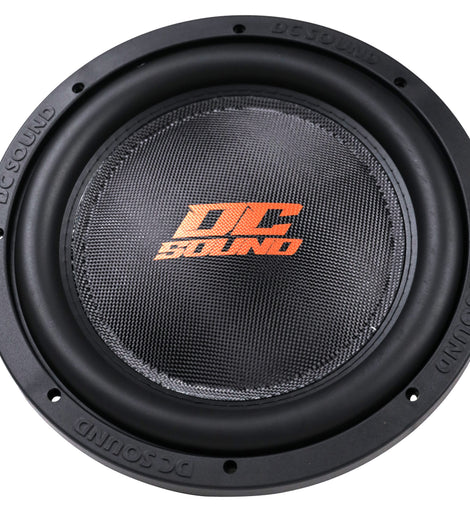

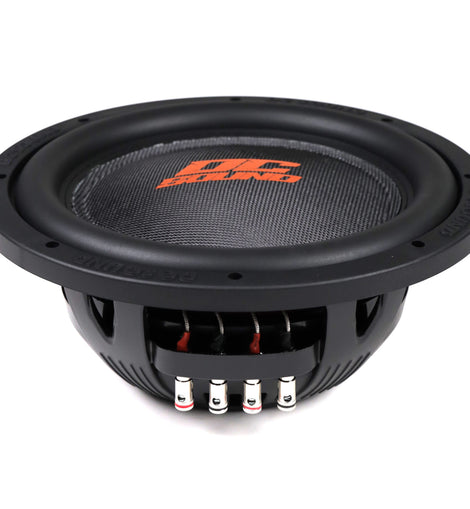

DC Sound DSW2500 DVC4 12" Shallow Mount Subwoofer 2500W Dual 4-Ohm Voice Coil

Key Features:

• 🔊 POWERFUL 2500W SHALLOW-MOUNT SUBWOOFER - DC Sound DSW2500 DVC4 delivers deep, aggressive bass performance with 2500W peak power and 800W RMS handling

• 🚘 ULTRA-SHALLOW DESIGN FOR COMPACT INSTALLS - Designed to fit trucks, under-seat enclosures, stealth boxes, and custom audio systems where mounting space is limited

• 💪 HIGH-TEMP 2.5" VOICE COIL - Features a durable 4-layer copper voice coil with aluminum former for superior heat resistance and long-lasting performance

• 🎵 CLEAN, HARD-HITTING LOW BASS RESPONSE - Reinforced paper cone, fiberglass dust cap, and high-roll rubber surround provide accurate, distortion-free bass output

• 🔧 FLEXIBLE DUAL 4-OHM CONFIGURATION - Dual voice coil design allows multiple wiring options for maximum amplifier compatibility and optimized system setup

Massive Bass Performance in a Compact Shallow Design

The DC Sound DSW2500 DVC4 is designed for audio enthusiasts who demand powerful low-frequency performance without sacrificing installation space. Featuring a shallow-mount design and dual 4-ohm voice coils, this 12-inch subwoofer delivers deep, impactful bass while fitting into compact enclosures and tight vehicle applications.

Built with premium materials, including a heavy-duty aluminum basket, reinforced paper cone, fiberglass dust cap, and high-roll rubber surround, the DSW2500 DVC4 delivers outstanding durability, accuracy, and thermal efficiency during high-power operation.

Its high-temperature 2.5-inch, 4-layer voice coil enables exceptional heat dissipation and reliable long-term performance, making it ideal for trucks, under-seat systems, stealth enclosures, and custom audio installations where depth is limited but performance is essential.

General Features:

• 12" / 304.8mm Shallow-Mount Subwoofer

• 2500 Watts MAX Power Handling

• 800 Watts RMS Power Handling

• Dual 4-Ohm Voice Coil Configuration

• Ultra-Shallow Mounting Design

• Heavy-Duty Aluminum Basket

• 2.5" / 63.5mm High-Temperature 4-Layer Voice Coil

• Ferrite Magnet Motor Structure

• 62 Oz Magnet Weight

• Copper Winding Voice Coil

• Aluminum Voice Coil Former

• Reinforced Paper Cone

• High-Roll Rubber Surround

• Fiberglass Dust Cap

• Excellent Thermal & Power Handling Capabilities

• Designed for Compact Sealed or Ported Enclosures

• Perfect for Cars, Trucks, SUVs & Custom Installations

Specifications:

• Nominal Impedance: Dual 4 Ohms

• Sensitivity: 85dB (1W/1M)

• Frequency Response: 20Hz - 600Hz

• Free Air Resonance (Fs): 38Hz

• Recommended Low Pass Crossover: 90Hz

• Equivalent Volume (Vas): 20L / 0.7 ft³

• Displacement Volume: 0.93L / 0.033 ft³

• Recommended Sealed Box: 28L / 1.0 ft³

• Recommended Ported Box: 28L / 1.0 ft³

• Front Mount Baffle Cutout: 10.79" / 274mm

• Mounting Depth: 4.33" / 110mm

• Overall Shallow Design Depth: 5" / 129mm

• Motor Diameter: 6.3" / 160mm

• Package Weight: 16.5 lbs

• Package Dimensions: 15" x 15" x 9"
