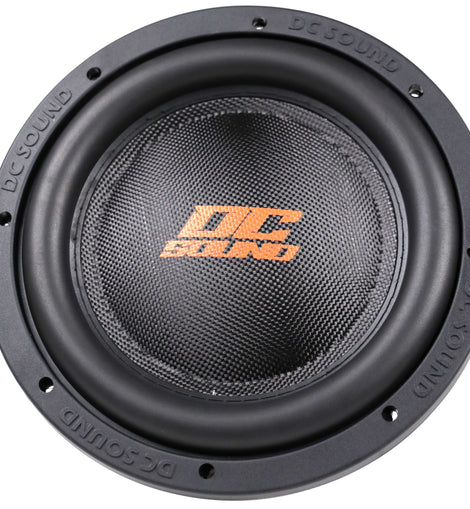

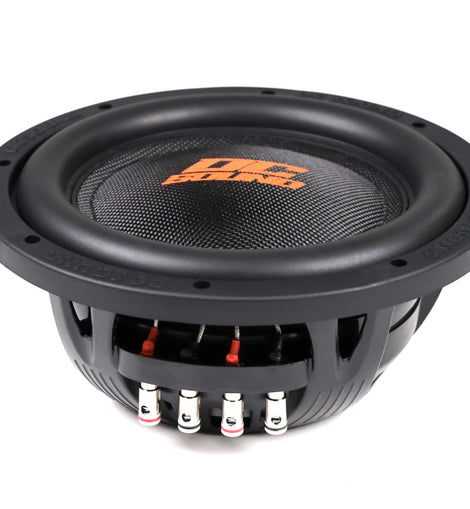

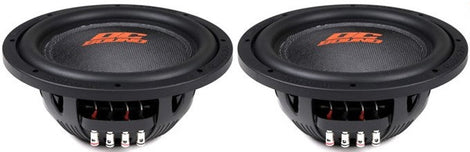

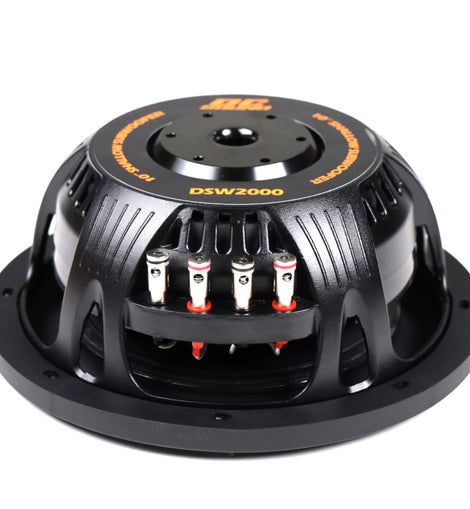

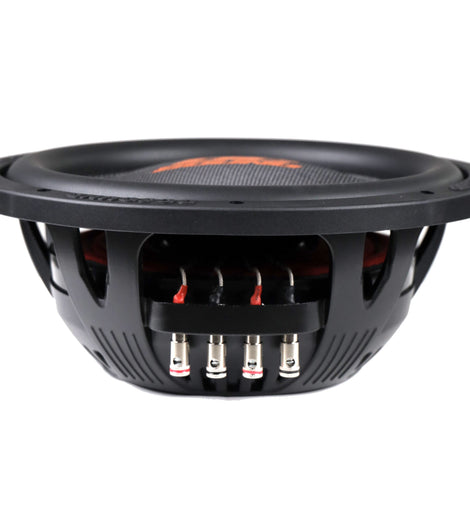

2 DC Sound DSW2000 DVC4 10" Shallow Mount Dual 4-Ohm Car Subwoofer - 700W RMS / 2000W Max Power

High-performance 10-inch shallow-mount subwoofer featuring a Dual 4-Ohm voice coil, 2.5" high-temperature 4-layer copper voice coil, reinforced paper cone, aluminum basket, and ultra-slim mounting depth—engineered to deliver powerful bass in compact enclosures and space-limited vehicle installations.

Key Features

🔊 HIGH-OUTPUT SHALLOW MOUNT PERFORMANCE - Delivers 700 Watts RMS and 2000 Watts Maximum Power Handling, producing deep, impactful bass while fitting into compact installation spaces.

🚘 ULTRA-SHALLOW INSTALLATION DESIGN - With only 3.66" mounting depth, the DSW2000 DVC4 is ideal for trucks, under-seat installations, shallow enclosures, and custom audio systems where mounting space is limited.

💪 2.5-INCH HIGH-TEMPERATURE VOICE COIL - Features a 2.5" 4-layer copper voice coil wound on an aluminum former for excellent heat dissipation, high power handling, and long-term reliability.

🎵 PREMIUM LOW-FREQUENCY PERFORMANCE - Reinforced paper cone, fiberglass dust cap, high-roll rubber surround, and rigid aluminum basket combine to produce clean, accurate, low-distortion bass.

🔧 DUAL 4-OHM WIRING FLEXIBILITY - Dual 4-ohm voice coils provide multiple wiring configurations for maximizing amplifier compatibility and system performance.

Product Description

The DC Sound DSW2000 DVC4 is a premium 10-inch shallow-mount subwoofer engineered to deliver powerful low-frequency performance without requiring the mounting depth of conventional subwoofers. Designed specifically for compact installations, it offers outstanding bass response for trucks, SUVs, under-seat systems, custom enclosures, and vehicles with limited available space.

At its core is a 2.5-inch high-temperature 4-layer copper voice coil wound on a lightweight aluminum former, providing exceptional thermal management and dependable power handling. A heavy-duty aluminum basket, reinforced paper cone, fiberglass dust cap, and high-roll rubber surround work together to deliver tight, controlled bass with minimal distortion even during demanding listening sessions.

Whether you're building a stealth audio system or upgrading an existing enclosure, the DSW2000 DVC4 offers the perfect combination of compact size, durability, and high-performance bass.

General Features

• 10" Shallow Mount Car Subwoofer

• Dual 4-Ohm Voice Coil Configuration

• 700 Watts RMS Power Handling

• 2000 Watts Maximum Power Handling

• Ultra-Shallow Installation Design

• Heavy-Duty Cast Aluminum Basket

• 2.5" (63.5 mm) High-Temperature 4-Layer Copper Voice Coil

• Aluminum Voice Coil Former

• Ferrite Magnet Structure

• 62 oz Magnet

• Reinforced Paper Cone

• High-Roll Rubber Surround

• Fiberglass Dust Cap

• Excellent Thermal Dissipation

• Optimized for Compact Sealed & Ported Enclosures

• Ideal for Cars, Trucks, SUVs & Custom Installations

Specifications

Subwoofer

• Speaker Size: 10" (254 mm)

• Voice Coil Configuration: Dual 4 Ohms

• RMS Power Handling: 700 Watts

• Maximum Power Handling: 2000 Watts

• Voice Coil Diameter: 2.5" (63.5 mm)

• Voice Coil Construction: 4-Layer Copper

• Voice Coil Former: Aluminum

• Basket Material: Cast Aluminum

• Cone Material: Reinforced Paper

• Surround Material: High-Roll Rubber

• Dust Cap: Fiberglass

• Magnet Structure: Ferrite

• Magnet Weight: 62 oz

Performance

• Frequency Response: 20Hz - 800Hz

• Sensitivity: 84 dB (1W/1M)

• Free Air Resonance (Fs): 38Hz

• Recommended Low-Pass Crossover: 90Hz

• Equivalent Compliance Volume (Vas): 20 L (0.70 ft³)

Recommended Enclosures

• Recommended Sealed Enclosure: 14.2 L (0.50 ft³)

• Recommended Ported Enclosure: 14.2 L (0.50 ft³)

• Driver Displacement: 0.9 L (0.032 ft³)

Installation Dimensions

• Mounting Depth: 3.66" (93 mm)

• Overall Depth: 4.48" (114 mm)

• Cutout Diameter: 9.25" (235 mm)

• Motor Diameter: 6" (154 mm)

Shipping Information

• Package Dimensions: 13" × 13" × 8.5"

• Package Weight: 15 lbs

Perfect For

• Under-Seat Installations

• Pickup Trucks

• Compact Cars

• SUVs

• Custom Shallow Enclosures

• Daily Driver Systems

• Space-Limited Installations

• High-Performance Car Audio Systems

• OEM Audio Upgrades

• Custom Audio Builds

Package Includes

• (1) DC Sound DSW2000 DVC4 10" Shallow Mount Dual 4-Ohm Subwoofer

Warranty

• 2-Year Manufacturer's Warranty
