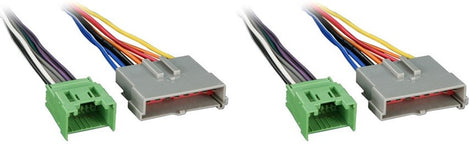

2 Absolute USA H596/5600 In-Dash Radio Wiring Harness for 1995-98 Ford/Lincoln/Mercury

Interchangeable Part Number: American International FWH-596, Metra 70-5600, Raptor RAP-FD-5002

General Features:

• Wiring harness for fast and easy radio installation
• Plugs into the car's original radio connectors on one side
• Designed for aftermarket radios that are 35 watts or less
• For select vehicles with premium sound
• Color-coded wires on the other side are connected to the aftermarket radio
• No wire cutting needed for factory radio connectors
• Provides electrical power to the radio for a four-speaker connection

Compatible Vehicles:

• 1995-1997 Ford Crown Victoria
• 1997-1998 Ford Expedition
• 1995-1997 Ford Explorer
• 1995-1997 Ford Ranger

• 1995-1997 Lincoln Continental
• 1996-1998 Lincoln Mark VIII
• 1998 Lincoln Navigator

• 1995-1997 Mazda B2300
• 1995-1997 Mazda B3000
• 1995-1997 Mazda B4000

• 1995-1997 Mercury Grand Marquis
• 1997 Mercury Mountaineer

Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange - Dash Light Dimmer/Illumination
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)
