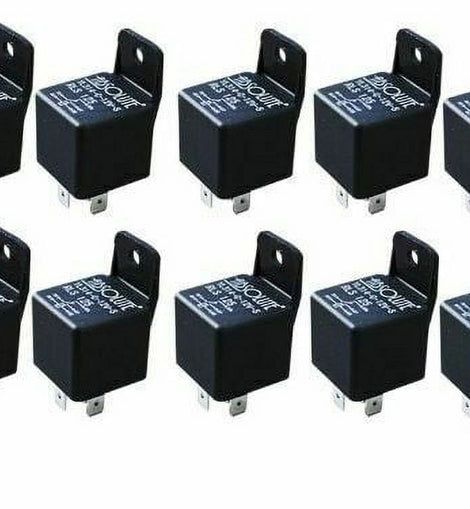

10 Pack Absolute USA RLS125 12V 5-Pin SPDT Automotive Relay - 30/40 Amp Bosch/Tyco Style High-Current Relay for Cars, Trucks, RVs, Marine & Powersports
The Absolute USA RLS125 is a heavy-duty 12V 5-pin SPDT automotive relay designed for automotive, marine, RV, powersports, and other 12-volt electrical applications. Featuring the industry-standard Bosch/Tyco-style configuration, this relay supports 40A Normally Open (NO) and 30A Normally Closed (NC) switching for dependable control of high-current accessories.
Ideal for LED lights, headlights, fog lights, cooling fans, fuel pumps, horns, power windows, door locks, security systems, and custom electrical installations, the RLS125 provides reliable switching performance in a compact, industry-standard design.
Key Features
⚡ 30/40 AMP HIGH-CURRENT RELAY - Rated for 40A Normally Open (NO) and 30A Normally Closed (NC) operation for reliable control of high-current 12V electrical accessories.
🔌 STANDARD BOSCH/TYCO STYLE DESIGN - Industry-standard 5-pin SPDT configuration is compatible with many common Bosch/Tyco-style automotive relay sockets and wiring harnesses.
🚗 UNIVERSAL 12V APPLICATIONS - Ideal for cars, trucks, SUVs, RVs, boats, motorcycles, ATVs, UTVs, trailers, and other equipment equipped with a compatible 12V DC electrical system.
💪 HEAVY-DUTY CONSTRUCTION - Durable molded housing and internal components provide dependable switching performance and long service life in demanding automotive and electrical applications.
🛠 VERSATILE SPDT CONFIGURATION - Single Pole Double Throw design provides both Normally Open and Normally Closed contacts, offering greater flexibility for custom electrical installations.
Product Description
The Absolute USA RLS125 Automotive Relay provides a dependable solution for controlling high-current 12-volt electrical accessories in automotive, marine, RV, motorcycle, ATV, UTV, and custom electrical applications.
Featuring an industry-standard Bosch/Tyco-style 5-pin SPDT configuration, the RLS125 provides both Normally Open and Normally Closed switching capabilities, making it suitable for a wide variety of electrical circuits.
The relay is rated for 40 amps Normally Open and 30 amps Normally Closed, making it ideal for controlling auxiliary lighting, cooling fans, fuel pumps, air horns, power windows, door locks, alarm systems, security systems, and many other 12V accessories.
Designed for dependable operation and long service life, the RLS125 is an excellent choice for professional installers, automotive technicians, repair shops, and DIY electrical projects.
General Features
• Automotive Relay
• Bosch/Tyco Style Relay Design
• 12 Volt DC Operation
• Single Pole Double Throw (SPDT)
• 5-Pin Configuration
• 40A Normally Open Rating
• 30A Normally Closed Rating
• High-Current Switching Capability
• Heavy-Duty Construction
• Industry-Standard Relay Design
• Compatible with Standard 5-Pin Relay Sockets
• Automotive, Marine & RV Compatible
• Powersports Compatible
• Suitable for Professional & DIY Installations
• Authorized Internet Dealer
Specifications
Relay Specifications
• Brand: Absolute USA
• Model: RLS125
• Quantity: 1 Relay
• Relay Type: SPDT (Single Pole Double Throw)
• Terminal Configuration: 5-Pin
• Operating Voltage: 12V DC
Electrical Ratings
• Normally Open (NO): 40A @ 14V DC
• Normally Closed (NC): 30A @ 14V DC
• Maximum Operating Current: 40A
• Maximum Operating Voltage: 27V
Performance
• Operate Time: 10 ms
• Release Time: 10 ms
• Insulation Resistance: 100 MΩ
• Dielectric Strength (Coil to Contact): 500 VAC
• Operating Temperature: -40°C to +85°C
• Mechanical Life: 1,000,000 Operations
• Electrical Life: 100,000 Operations
Dimensions
• Relay Size: 28 × 28 × 25 mm
Perfect For
• Cars
• Trucks
• SUVs
• RVs
• Boats
• Marine Applications
• Motorcycles
• ATVs
• UTVs
• Off-Road Vehicles
• Trailer Electrical Systems
• LED Light Bars
• Driving Lights
• Fog Lights
• Headlights
• Cooling Fans
• Fuel Pumps
• Air Horns
• Power Windows
• Power Door Locks
• Keyless Entry Systems
• Security & Alarm Systems
• Custom 12V Electrical Accessories
Package Includes
• (1) Absolute USA RLS125 12V 5-Pin SPDT Automotive Relay
Note: Relay socket and wiring harness are sold separately unless otherwise specified.
Warranty
1-Year Manufacturer's Warranty
