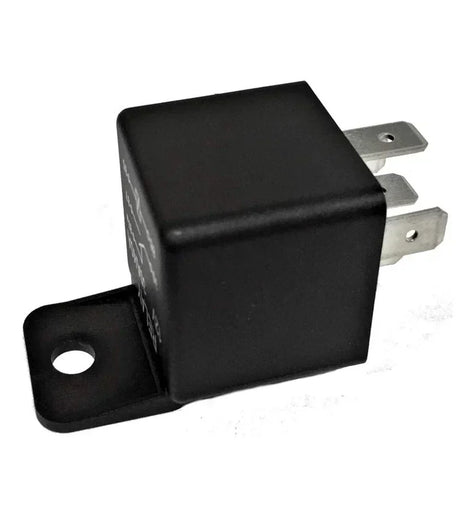

10 Pack Absolute USA ( Bosch style) 12 Volt DC 40 AMP SPTD Automotive Relay 5 Pin with Mounting Tab

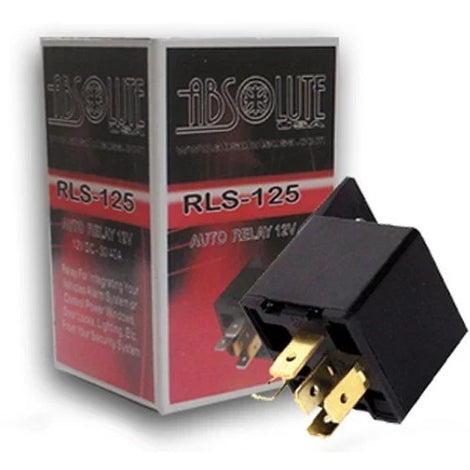

Absolute RLS125 12-VCD Automotive Marine Bosch / Tyco Style Relay SPDT 30/40 AMP

Used for numerous electrical applications on automotive, marine, homes, and more!

General Features:

• General Purpose Relay
• Automotive Bosch Tyco Style Relay
• Single Pole Double Throw
• 30/40 Amps
• 12V DC
• Useful for integrating your vehicle's alarm system
• Control power windows, door locks, lights, etc. from your security system
• Can be used with the Absolute SRS105 relay socket
• Authorized Internet Dealer
• Outline Dimensions: 28.0*28.0*25.0mm

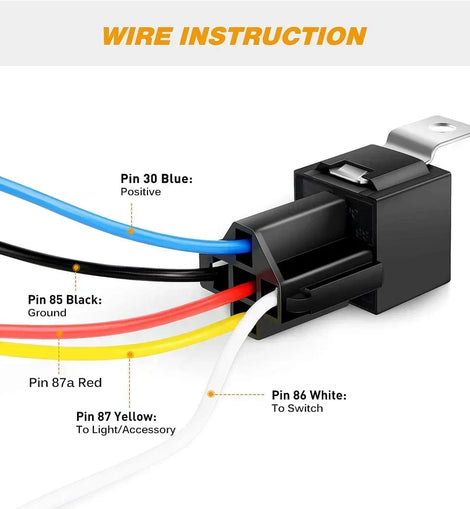

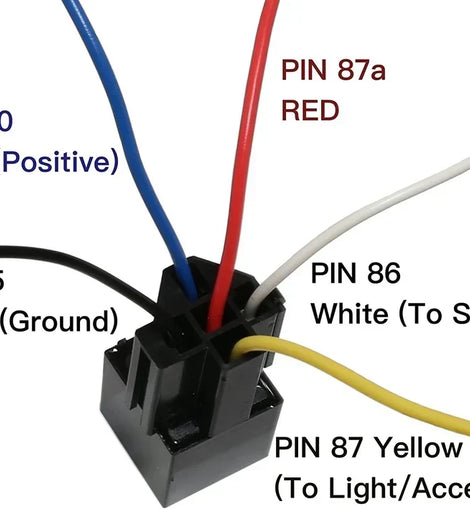

• Relay Sockets Are 5 Wires. Yellow (Pin87 Light/Accessory), Red (Pin87a), White (Pin86 Switch), Blue (Pin30 Positive), Black (Pin85 Ground)
• 40A No/30A NC High Switching Capability Auto Relay-Harness
• Including 5 Prong Relays, 5 Prong Sockets & Wires. Relays and Sockets Are Separated for Various Usages. English Manual Attached
• For automotive electrical appliances such as Lights, Air conditioners, Windshield Wipers, and Others, Turn on/Off Almost Any Device.
• 12v 5 Prong Relays With 5 Prong Sockets Wires (Pigtails)
• Package Including 5 Relays And 5 Sockets with Wires for Car Electronic Applications to Turn-On/Off Almost Any Device
• Heavy-Duty Impact Molded Relay Socket With 5 Wires. Yellow (Common), Red (Normally Closed), And Blue (Normally Open)
• 40a/30a High Switching Capability
• General Purpose Relay
• Automotive Bosch / Tyco Style Relay
• Single Pole Double Throw
• 5 Pin
• 30/40 Amps
• 12v Dc
• Useful for Integrating Your Vehicle's Alarm System
• Control Power Windows, Door Locks, Light, Etc. From Your Security System
• Can Be Used with The Absolute Srs105 or Srs103 Relay Socket


Specification:

• No 40a 14vdc
• Nc 30a 14vdc
• Max Operating Current: 40a
• Max Operating Voltage: 27v
• Insulation Resistance: 100mω
• Dielectric Strength (Coil and Contact): 500vac
• Ambient Temperature: -40°C~+85°C
• Operate/Release Time: 10ms/10ms
• Mechanical Life: 1000000min
• Electrical Life: 100000min
