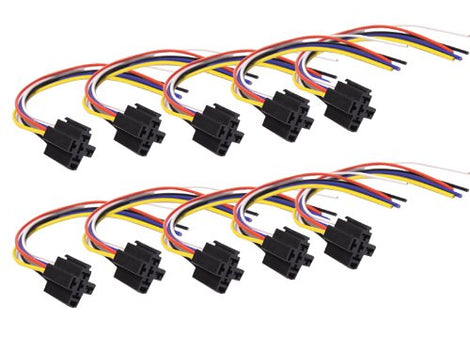

10 Absolute SRS105 5-Pin 12 VDC Bosch Relay Socket Interlocking Style

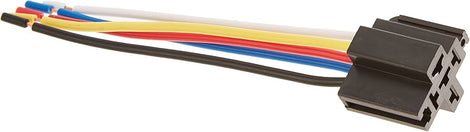

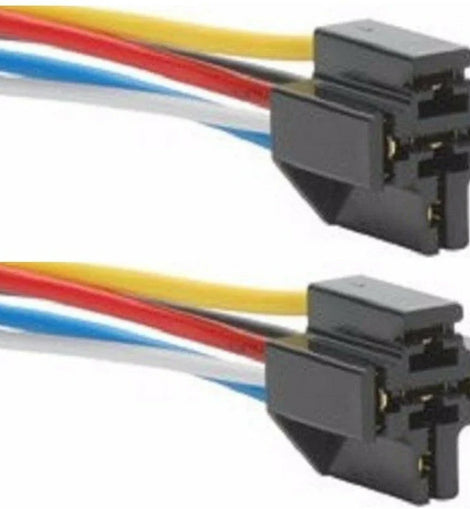

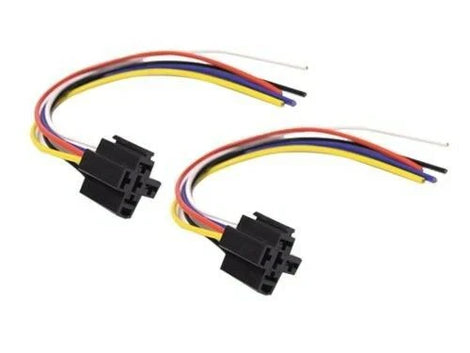

10 Pack Absolute USA SRS105 5-Pin Bosch Style SPDT Relay Socket Harness - 12V DC Interlocking Pre-Wired Relay Base with 6" Leads
The Absolute USA SRS105 includes two heavy-duty 5-pin Bosch-style SPDT relay socket harnesses designed for reliable 12V DC automotive, marine, RV, motorcycle, trailer, and custom electrical applications. Each relay socket comes pre-wired with durable 6-inch color-coded pigtail leads, allowing for fast, clean, and professional installations without the need to assemble individual terminals.
Featuring an innovative interlocking design, multiple SRS105 relay sockets can be securely connected together for organized wiring, simplified troubleshooting, and a cleaner installation. Compatible with most standard Bosch and Tyco-style 5-pin SPDT relays, these relay sockets are ideal for controlling lighting, horns, cooling fans, fuel pumps, alarms, power accessories, and other 12V electrical devices.
Key Features
โก BOSCH-STYLE 5-PIN RELAY SOCKETS - Includes two heavy-duty pre-wired relay socket harnesses compatible with standard Bosch and Tyco 5-pin SPDT automotive relays.
๐ PRE-WIRED 6-INCH PIGTAIL LEADS - Color-coded 6-inch wire leads provide quick, secure installation while eliminating the need to crimp individual terminals.

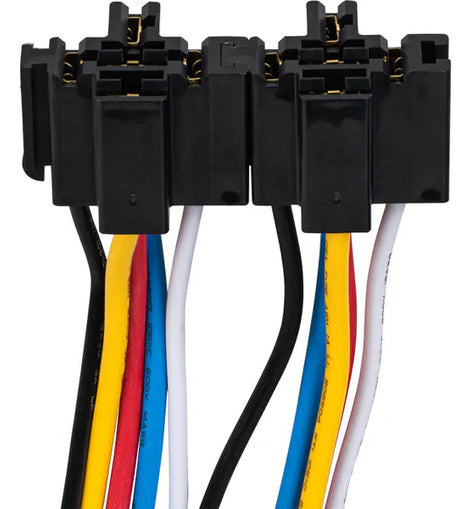

๐ INTERLOCKING DESIGN - Unique interlocking housing allows multiple relay sockets to snap together for organized wiring and professional cable management.
๐ UNIVERSAL 12V DC COMPATIBILITY - Ideal for cars, trucks, SUVs, motorcycles, boats, RVs, trailers, UTVs, ATVs, off-road vehicles, and other 12-volt electrical systems.
๐ ๏ธ HEAVY-DUTY CONSTRUCTION - Durable relay socket housing and quality wire leads are designed for long-lasting performance in demanding automotive and marine environments.
Product Description
The Absolute USA SRS105 5-Pin Bosch Style Relay Socket Harness is designed to simplify the installation of automotive relays while providing dependable electrical connections. Each socket is factory pre-wired with color-coded leads, making wiring faster, easier, and more reliable than assembling individual terminals.
Its interlocking design allows multiple relay sockets to connect together into a clean, organized relay bank, making it an excellent solution for custom wiring projects, auxiliary lighting, electric fans, fuel pumps, air horns, security systems, and numerous other 12V electrical accessories.
Compatible with most Bosch and Tyco-style 5-pin SPDT relays, the SRS105 offers professional-grade performance for both OEM replacement and custom installations.
General Features
-
Relay Socket Harnesses
-
Bosch Style 5-Pin SPDT Relay Socket
-
Tyco Style Compatible
-
Interlocking Housing Design
-
Pre-Wired 6" Pigtail Leads
-
Color-Coded Wiring
-
Heavy-Duty Construction
-
Quick & Easy Installation
-
Professional Cable Management
-
Universal 12V DC Applications
Wire Identification
-
Black - Ground (85)
-
Red - 12V Power (30)
-
White - Trigger (86)
-
Yellow - Normally Closed Output (87a)
-
Blue - Normally Open Output (87)
Specifications
Relay Socket
-
Brand: Absolute USA
-
Model: SRS105
-
Relay Type: Bosch Style SPDT
-
Pin Configuration: 5-Pin
-
Socket Style: Interlocking
-
Operating Voltage: 12V DC
-
Lead Length: 6 Inches
-
Wiring: Pre-Wired Color-Coded Pigtails
Perfect For
-
Automotive Electrical Systems
-
Car Audio Installations
-
Auxiliary Lighting
-
LED Light Bars
-
Cooling Fans
-
Fuel Pumps
-
Air Horns
-
Security & Alarm Systems
-
Marine Electrical Systems
-
RV & Trailer Wiring
-
Off-Road Vehicles
-
Custom 12V Projects
Package Includes
-
Absolute USA SRS105 5-Pin Bosch Style SPDT Interlocking Relay Socket Harnesses
