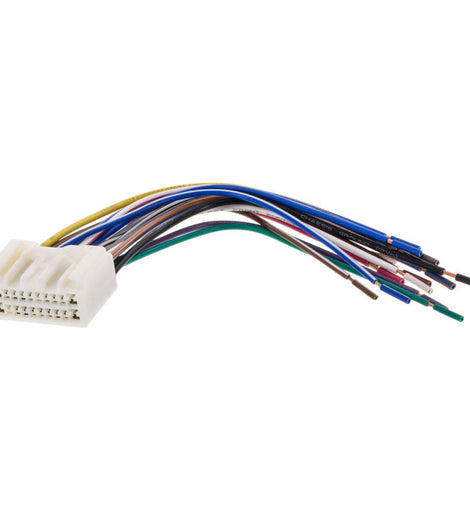

American Terminal ATR1-8113-1 Reverse Harnesses
JBL Stereo Wire Reverse Harness compatible with Toyota Avalon 2000-2004

American Terminal ATR1-8113-1 JBL Stereo Wire Reverse Harness compatible with Toyota Avalon 2000-2004

Factory OEM or Standard Wire Harness knew as Reverse or Stock Radio Harness for TOYOTA / LEXUS with factory amplified systems

Compatible list:
Toyota:

• 2000-2004 Avalon With Amplified System - Tweeters In A-Pillar
• 2002-2006 Camry With JBL Or Factory Amplified
• 2000-2001 Celica With 8 Speaker System
• 2001-2002 Land Cruiser With Amplified System
• 2000-2003 Solara With Amplified System
• 2000-2005 Celica With Amplified System
• 2001-2007 Highlander With Amplified System
• 2001-2011 Land Cruiser With Amplified System
• 2001-2004 Sequoia
• 1999-2003 Solara
• 2003-2005 Tundra (Does Not Fit 4 Door Models)

Lexus:

• 1999 - 2001 ES300
• 2002 - 2003 ES300 (Without 6 Disc In-Dash CD Changer)

General Features:

• Plugs in at factory Radio
• 20 Pin connector
• Power and speakers (Some functions that were lost when factory radio was removed will not be recovered with this harness)

• Designed to plug into the factory radio
• Can be used repair a harness where the plugs have been cut off or damaged
• Compatible with select 2000-UP Lexus / Toyota OEM Plug for amplified systems
• THIS HARNESS IS NOT FOR AFTERMARKET RADIOS (please check our other listings for aftermarket radio installation)

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green With Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White With Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple With Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray With Black Stripe – Right Front Speaker (-)
