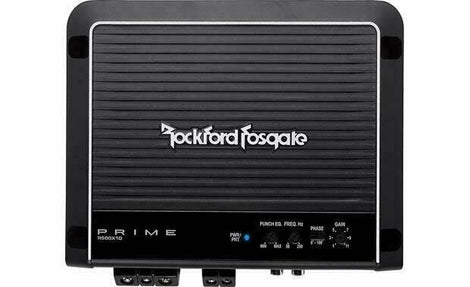

Rockford Fosgate R500X1D Prime 1-Channel Class D Amplifier
Rockford Fosgate Prime R500X1D 1-Channel Car Prime 500 Watt RMS Class D Car Mono Amplifier
The Prime R500X1D is a 500-watt mono amplifier using efficient Class-D circuit topology. This amplifier is capable of running a 2-Ohm load and includes onboard Punch Bass and remote Punch Level Control. Are you ready for a dedicated subwoofer amplifier for your car or truck? The Prime R500X1D is the perfect companion for any Car Audio Fanatic getting into mobile audio who wants a two-amplifier system: one amp running mids/highs and the second running subwoofers. This class D mono amplifier features variable Punch Bass, variable crossovers, Pass-Thru jacks to daisy chain another amplifier, and a remote Punch Level Control for mounting under the dash or the center console.
General Features:
- Prime Series Class D Monoblock Car Amplifier
- RMS Power Rating: 4 ohms: 300 watts x 1 channel
- RMS Power Rating: 2 ohms: 500 watts x 1 channel
- CEA-2006 compliant amplifier
- Efficient Class-D circuit topology
- 12dB/octave Butterworth crossover
- RCA pass-thru outputs
- On-board Punch EQ with +18dB boost @ 45Hz.
- High-level inputs
- Remote PLC (Punch Level Control)
- 0°/180° Phase Switch
- Real-time output and power supply thermal sensing
- Cast aluminum heatsink
- 4 Gauge power/ground connectors
- MOSFET power supply
- Over-current protection
- Short circuit protection
- Muted turn on
- Frequency Response: 20 - 250 Hz +/- 1 dB
- Efficiency: 89% @ 4-ohm
- Total Harmonic Distortion: <1.0%
- Signal to Noise Ratio: >100 dB
- Damping Factor: >200 dB
- Input Sensitivity: 150 mV - 4V
- Recommended Fuse: 50A x 1 (not included)
- 8-gauge speaker wire terminals
- Dimensions: 8.50"L x 6.80"W x 2.00"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
What is in the box:
- Rockford Fosgate R500X1D owner's manual
- Mono subwoofer amplifier
- Remote Punch Level Control module
- 18' Remote Punch Level Control cable (RJ-25 connector on both ends)
- 6" Speaker level input harness
- 3mm Allen wrench
- Four 3/4" Self-tapping screws
- Two 1/2" Self-tapping screws
- 4 Flat washers
- Installation & Operation manual (English/ French/ Spanish/ German/ Italian)
- Amplifier verification certificate
