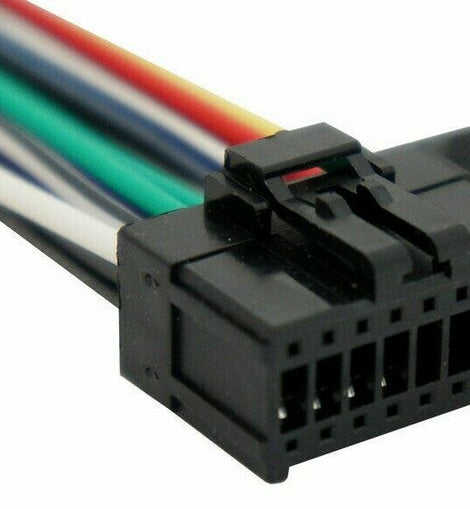

16-Pin Replacement Wiring Harness for Pioneer Car Stereo Headunit

General Features:

• 16-Pin Wiring Harness Plug
• Compatible with 2002 Pioneer Car Stereo Headunit
• Plugs into aftermarket radio
• Provides power and 4 speakers
• Heat resistant for lasting a lifetime
• Allows installation of aftermarket radio using factory wiring and connector
• High-quality ABS plastic molded connector for the perfect fit
• Pre-stripped to make installation quick and easy
• No cutting of factory wiring needed
• Note: Please measure the plug and count the pins

Connections guide:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Lt Rear Speaker (+)
• Green with Black Stripe Lt Rear Speaker (-)
• White – Lt Front Speaker (+)
• White with Black Stripe – Lt Front Speaker (-)
• Purple – Rt Rear Speaker (+)
• Purple with Black Stripe – Rt Rear Speaker (-)
• Gray – Rt Front Speaker (+)
• Gray with Black Stripe – Rt Front Speaker (-)

Pioneer Application Guide:

• Pioneer DEH-150MP
• Pioneer DEH-2500UI
• Pioneer DEH-X5500HD
• Pioneer DEH-X2600UI
• Pioneer DEH-X3600UI
• Pioneer DEH-DEH-6500BT
• Pioneer DEH-X65BT
• Pioneer DXT-2569UI
• Pioneer FH-X700BT
• Pioneer DEH-1300MP
• Pioneer DEH-2400UB
• Pioneer DEH-3400UB
• Pioneer DEH-5
• Pioneer DEH-6
• Pioneer DEH-7
• Pioneer DEH-11E
• Pioneer DEH-15
• Pioneer DEH-16
• Pioneer DEH-17
• Pioneer DEH-27
• Pioneer DEH-27MP
• Pioneer DEH-270
• Pioneer DEH-1100MP
• Pioneer DEH-1500
• Pioneer DEH-1600
• Pioneer DEH-1650
• Pioneer DEH-1700
• Pioneer DEH-1800
• Pioneer DEH-1900MP
• Pioneer DEH-2100IB
• Pioneer DEH-2700
• Pioneer DEH-2800MP
• Pioneer DEH-3700MP
• Pioneer DEH-P25
• Pioneer DEH-P26
• Pioneer DEH-P35
• Pioneer DEH-P45MP
• Pioneer DEH-P250
• Pioneer DEH-P310UB
• Pioneer DEH-P350
• Pioneer DEH-P350MP
• Pioneer DEH-P360
• Pioneer DEH-P370MP
• Pioneer DEH-P390MP
• Pioneer DEH-P400UB
• Pioneer DEH-P401HD
• Pioneer DEH-P410UB
• Pioneer DEH-P450MP
• Pioneer DEH-P460MP
• Pioneer DEH-P470MP
• Pioneer DEH-P480MP
• Pioneer DEH-P490IB
• Pioneer DEH-P500UB
• Pioneer DEH-P510UB
• Pioneer DEH-P550MP
• Pioneer DEH-P560MP
• Pioneer DEH-P570MP
• Pioneer DEH-P600UB
• Pioneer DEH-P650
• Pioneer DEH-P660
• Pioneer DEH-P670MP
• Pioneer DEH-P750MP
• Pioneer DEH-P760MP
• Pioneer DEH-P770MP
• Pioneer DEH-P2500
• Pioneer DEH-P2600
• Pioneer DEH-P2900MP
• Pioneer DEH-P3000IB
• Pioneer DEH-P3500
• Pioneer DEH-P3550MP
• Pioneer DEH-P3600
• Pioneer DEH-P3700
• Pioneer DEH-P3700MP
• Pioneer DEH-P3800MP
• Pioneer DEH-P4000UB
• Pioneer DEH-P4100UB
• Pioneer DEH-P4500MP
• Pioneer DEH-P4600MP
• Pioneer DEH-P4700MP
• Pioneer DEH-P4800MP
• Pioneer DEH-P4900IB
• Pioneer DEH-P5000UB
• Pioneer DEH-P5500MP
• Pioneer DEH-P5600M
• Pioneer DEH-P5650MP
• Pioneer DEH-P5700MP
• Pioneer DEH-P6500
• Pioneer DEH-P660
• Pioneer DEH-P6700MP
• Pioneer DEH-P7500MP
• Pioneer DEH-P7600MP
• Pioneer DEH-P7650MP
• Pioneer DEH-P7700MP
• Pioneer DEH-SP033
• Pioneer DEH-SP041
• Pioneer DEH-SP043
• Pioneer DEH-SP045
• Pioneer DEH-SP052
• Pioneer DEH-SP053
• Pioneer FH-P4200MP
• Pioneer DEH-X4600BT
• Pioneer DEH-X5600HD
• Pioneer DEH-X6600BS
• Pioneer FX-H500UI
• Pioneer FX-H700BT
• Pioneer DEH-X3700UI
• Pioneer DEH-X3700S
• Pioneer DEH-X4700BT
• Pioneer DEH-X5700HD
• Pioneer DEH-X6700BT
• Pioneer DEH-X6700BS
• Pioneer DEH-X7600HD
• Pioneer DEH-X8600BS
• Pioneer DEH-X8600BH
• Pioneer DEH-X9600BHS
• Pioneer FH-X520UI
• Pioneer FH-X720BT
• Pioneer FH-P800BT
• Pioneer FH-P8000BT
• Pioneer DEH-2000MP
