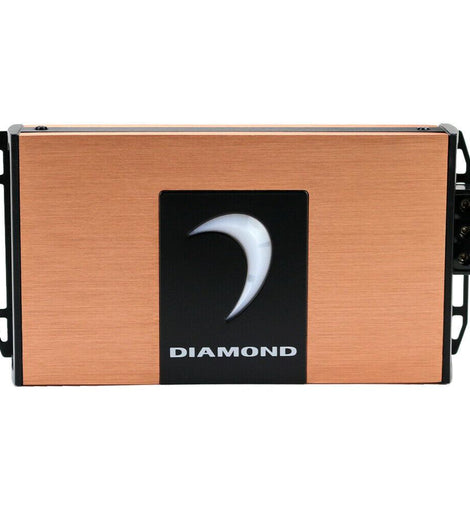

Diamond Audio MICRO2V2 2-Channel 500W RMS Class D Amplifier
Diamond Audio MICRO2V2 Micro Series 500W 2-Channel Class-D Car Audio Amplifier
Elite sound quality and superior power in an ultra-compact chassis. The Diamond Audio Micro2v2 2 channel power amplifier sets the standard for high-end Harley-specific amplifiers. Featuring ultra-efficient full range class D topology and ICAD circuit that provides superior overload protection, these compact amplifiers deliver huge power for their size. Its compact design not only has the juice to power your system but will also save you a ton of space in your car or transport whatever you need it. The sound quality in a small footprint chassis can be found with Diamond Audio’s Micro series amplifiers. Featuring the ultra-efficient full-range Class D topology, these compact amplifiers deliver serious power making them the best in class. Installation possibilities are endless due to its size and power amplification output. Even with its small platform, performance and sound quality are never sacrificed with Micro amplifiers from Diamond Audio!
General Features:
- Ultra-compact, high-density aluminum alloy chassis provides superior thermal stability
- Four-layer, glass epoxy circuit board for enhanced performance and reliability
- Full Range Class D amplifier technology
- Balanced differential inputs for superior noise rejection
- Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
- Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM), and DC offset (DC)
- Fully variable, 12dB per octave, electronic crossover
- Variable 18dB per octave sub-sonic filter
- Adjustable Bass EQ (45Hz: 0dB to +12dB)
- Wired Remote Level Control included
- Illuminated logo
Specifications:
- RMS Power Rating:
- RMS Power (2Ω): 250W X 2
- RMS Power (4Ω): 150W X 2
- Bridged (mono 1Ω): N/A
- Bridged (mono 2Ω): N/A
- Bridged (mono 4Ω): 500W
- Topology: Full Range Class D
- Power Supply:
- Power Supply: Full PWM
- Power Supply Threshold: 10.0VDC - 17.0VDC
- Idle Current: (0.7A)
- Distortion:
- THD 4 (1KHx @ 4Ω): 0.5%
- S/N Ratio (A weighted @1W): -85dBA
- S/N Ratio (A weighted @FP): -101.1dBA
- Input Sensitivity:
- Low Input Level: 200mV - 10.0V
- High Input Level: up to 10.0V
- Input Impedance:
- Low Input Level: 20KΩ
- High Input Level: 20KΩ
- Output Stage:
- Output Impedance: 0.011Ω
- Damping Factor (50Hz@4Ω): >250
- Bandwidth (-3dB): 10Hz - 350Hz
- Crossover (-12dB/Oct):
- Variable High-Pass:40Hz - 400Hz
- Variable Low-Pass: 40Hz - 400Hz
- Fuse Ratings: ATC: 25A
- Dimensions: 7.89” L x 4.0” W x 1.46” H
