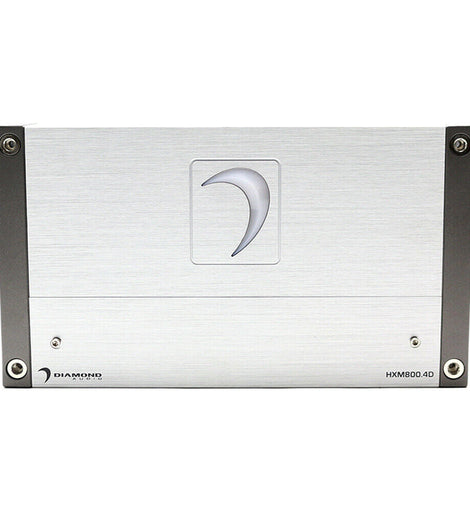

Diamond Audio HXM800.4D 800W 4-Channel Class-D Marine Audio Amplifier HXM
Diamond Audio HXM800.4D 4-Channel 800W RMS Class D Full-Range HXM Series Amplifier
The Diamond Audio HXM800.4D is a marine-grade motorsport amplifier that boasts 800 watts RMS on a single channel. Perfect for your system that needs to push a subwoofer to the max while using minimal space.
General Features:
- High-Density Aluminum Alloy Heat Sink with Backlit Logo
- Full Range Class D (IR) Chipset
- Four Layers PCB Design for Reduced Footprint Size
- Switchable 12dB HP/FLAT/LP Crossovers
- Integrated Soft Clip Light for Quick System Set-up
- BTR Port for Optional Bluetooth Receiver Control
- Total Power: 800W
- Power at 4-Ohm: 120W x 4-Ch
- Power at 2-Ohm: 200W x 4-Ch
- THD: 0.3%
- Frequency Response: 10Hz ~ 35kHz (-3dB)
- Signal-to-Noise Ratio: > -90dB
- Overall Efficiency: > 80%
- Input Sensitivity: 0.2 ~ 10.0V
- Dimensions: 9.35" x 5.27" x 1.75"
⚠️Warning:
This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
