Rockford Fosgate DSR1 8-Channel Digital Signal Processor
Rockford Fosgate DSR1 8-Channel Digital Signal Processor
Rockford Fosgate DSR1 Digital signal processor with Maestro AR amp replacement module adds an aftermarket amp without losing important features.
Upgrade your system
Your car computer controls its audio system, so upgrading the sound has to include integrating it with your car's digital network. Rockford Fosgate's DSR1 combines an integration module with a full-featured digital signal processor so you can add an aftermarket amplifier without losing any of your factory controls or audio notifications and achieve the high-fidelity sound the system lacked.A simpler way
In the past, in order to upgrade a factory system, you'd have first to sum all the outputs, reduce the signal strength to line level, remove the factory EQ and crossover settings, and then apply your custom audio processing and amplification. The DSR-1 simplifies this process by using the unprocessed line-level signals from the factory receiver, so you can tune the sound without fighting the factory settings. Your factory radio still works like it always has, and you retain all your vehicle's features.Rockford Fosgate + iDatalink Maestro = good times
The DSR1 includes an iDatalink Maestro AR amplifier replacement module, which can use a vehicle-specific T-harness (sold separately) to supply a clean audio signal plus digital control data to the processor. Using a Windows PC, you go to iDatalink's website and download the firmware for your specific vehicle to your DSR1. It will then be able to translate your vehicle's digital instructions, like turning down the music and making only one speaker active during Bluetooth calls, for example.Fine-tune your sound via your mobile device
The DSR1 uses the same technology as Rockford Fosgate's 3Sixty.3 digital signal processor to help you obtain and enjoy amazing sound quality from your vehicle's sound system. After connecting — via Bluetooth to an iOS or Android device — and loading the PerfectTune app, the main user interface screen displays your speaker configuration, an EQ graph, the EQ controls, and more.Eight channels handle almost any system
Each channel has its own crossover network, level adjustment, time alignment setting, polarity switch, and 31 bands of equalization, so there's no excuse for anything but perfect sound. The DSR1 offers eight output channels of processed signal for your amplifiers to send on to your tweeters, speakers, and subs. Note: The DSR1 bypasses all factory amplification—compatible aftermarket amplifiers are required.Important Note: This Rockford Fosgate processor can either be used with an iDatalink harness in "Vehicle-specific" mode, or it can operate without needing a vehicle-specific harness in "Universal" mode when upgrading a standard, non-premium factory, or aftermarket system. See "Configuration Menu" under the Details tab for more information.
General Features :
- digital signal processor with factory digital amplifier replacement module
- add an aftermarket amplifier without losing any factory controls or audio notifications
- requires Windows PC with an internet connection to download vehicle-specific firmware to the module
- includes iDatalink Maestro AR interface to retain factory premium audio features
- works with an optional vehicle-specific T-harness (sold separately)
- supplies control data as well as audio
- preamp and speaker-level inputs for use with a non-premium system and no vehicle-specific harness
- digital processing technology from Rockford Fosgate's 3Sixty.3 processor
- digital processing: 147 MIPS speed, 32-bit precision, 72-bit accumulators
- analog to digital: 24-bit precision, 105 dB dynamic range, -98 dB THD+N
- digital to analog: 24-bit precision, 108 dB dynamic range, -98 dB THD+N
- settings and adjustments made via Bluetooth connection to an iOS or Android device running the PerfectTune app
- Eight assignable inputs
- Four auxiliary RCA and one optical TOSLINK (S/PDIF) inputs
- Eight preamp outputs (up to 4 volts)
- 31-band parametric EQ on all channels
- crossover filters can be set as all-pass, high-pass, low-pass, bandpass, high-shelf, or low-shelf filters
- selectable slopes and filter characteristics
- phase switch on every channel
- dimensions: 5-1/16"W x 1-1/4"H x 4"W
- warranty: 1 year
- Digital signal processor
- 7" micro USB-to-USB cable
- 18-pin input harness
- 16-pin output harness
- Quick-start guide
⚠️Warning:
This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
Your may also be interested in following product
AudioControl 3 Pin Power Plug Epicenter EQX EQP...
Audiocontrol 3 Pin 3-pin power plug for Audio Control, Epicenter, Matrix Plus Overdrive Plus 3XS...
Audiocontrol 3 Pin 3-pin power plug for Audio Control, Epicenter, Matrix Plus Overdrive Plus 3XS 2XS 6XS 24XS EQS DQL-8 EQP EQX EQL DQS DQX DQT DQXS Audiocontrol 3 Pin These 3-pin connectors are used on our car and home products. If you’ve lost your connector, or if you like to collect small, interesting objects, you’ve found the right page. Check your product to see which connector you need, either 3-pin, then add as many as you like to your cart. Postage is included when shipping within th...
$35.99 $17.99
Alpine PXE-0850X High-Performance Digital Sound...
Alpine PXE-0850X 8-channel car amplifier with digital signal processing 25 watts RMS x 8 As more...
Alpine PXE-0850X 8-channel car amplifier with digital signal processing 25 watts RMS x 8 As more and more newer vehicles are equipped with highly integrated displays and complex sound systems, the stand-alone DSP, Digital Signal Processor, is becoming crucial for building the next-level Alpine sound system. How do you upgrade your sound without changing your head unit? It may be more complex than adding amplifiers anymore. Modern factory systems generally have speakers playing a specific ran...
$1,099.99 $899.95
Audio Control LC2i PRO 2-Channel Line Output Co...
Audio Control LC2i 2 Channel Line Out Converter Accubass and Subwoofer Control for amps to your ...
Audio Control LC2i 2 Channel Line Out Converter Accubass and Subwoofer Control for amps to your factory system & ACR-1 Dash Remote The LC2i is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality preamp signals that can then be directed to after-market processors and amplifiers. As a result, users can enjoy maximum sou...
$259.98 $139.00

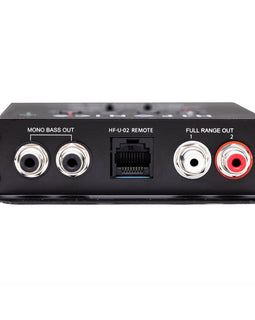

Hifonics BXIPRO1.5 Bass Enhancer Processor with...
