Rockford Fosgate 500W Punch Single P1 10 Inch Loaded Subwoofer Enclosure

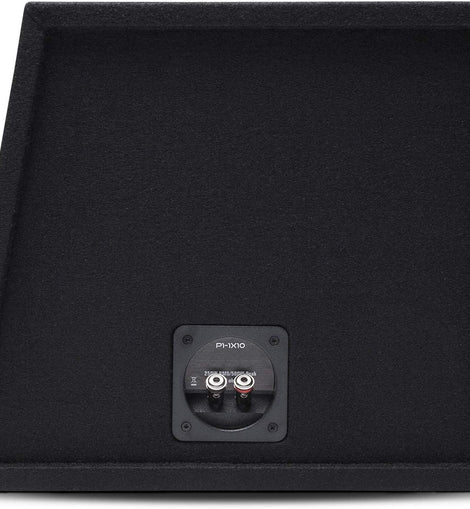

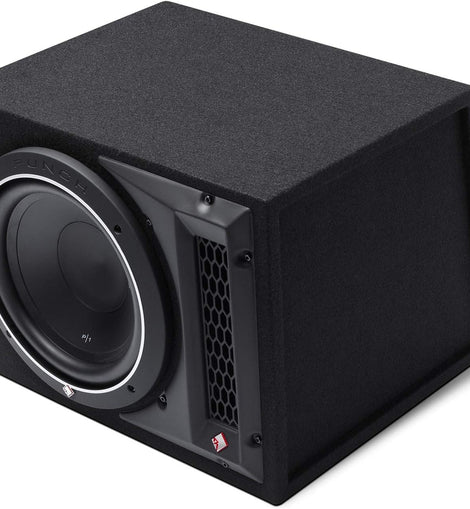

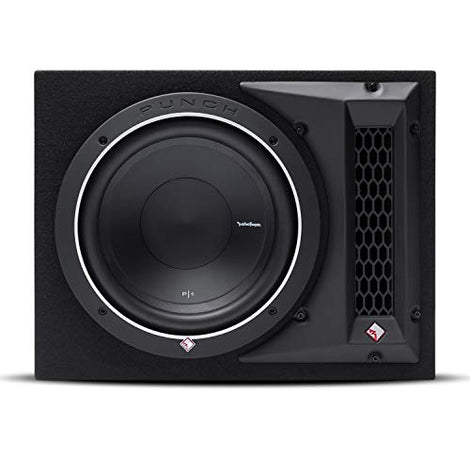

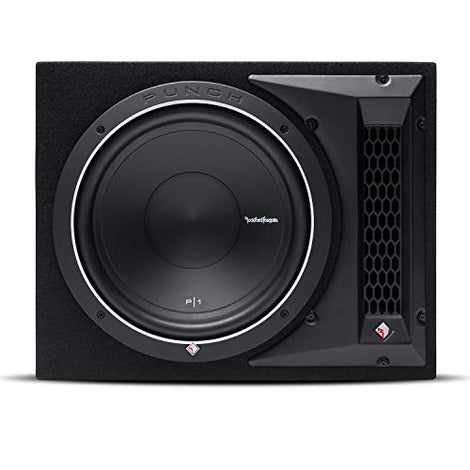

Details: Rockford Fosgate created the Punch series subwoofers and enclosures for an easy-to-install bass system to upgrade your factory subs. The Punch Single P1 10-Inch Loaded Subwoofer Enclosure includes a 500-watt sub in a 5/8-inch MDF constructed enclosure with high-density carpet. The vented enclosure is designed using computer-aided design software to achieve a similar tonal performance to the P2 and P3, while also being easier to install and remove from vehicles. This sub features 250 watts RMS of power handling and is compatible with a 4-ohm load. The loaded subwoofer enclosure features a high-flow, low-noise port and quick-release compression terminals.

General Features:

• 10" Single 4 ohm Punch Stage 1 Subwoofer

• Peak Power Handling: 500 watts

• RMS Power Handling: 250 watts

• Recommended power range: 125 - 300 watts RMS @ 4 Ohm

• CEA-2031 Compliant

• Klippel Verified

• Flex-fit Mounting pattern

• Proprietary spider venting/cooling technique

• StampCast basket with integrated spider venting

• Sturdy 16-gauge compound bend frame geometry

• High modulus Kevlar reinforced paper-pulp cone

• Semi-flexible, PVC removable protective motor cover

• Multi-point high-temp/high-strength neck joint bonding technique

• Tall-profile VAST Santoprene surround for larger surface area

• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads

• Fatigue-resistant and reduced-strain "stitched on" flexible lead wire design

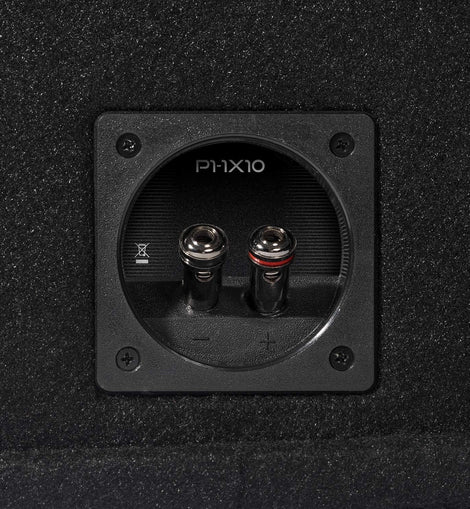

• Proprietary all-metal, radially oriented compression input terminal assembly

• Optimized motor magnetics with extended pole and bumped vented backplate

• High temp 2" voice coil w/ spun-laced Nomex insulating reinforcement collar

• Die-cast aluminum soft-touch painted trim ring allows for optional integrated grill

• Stamped Mesh Grille Insert Available: Rockford Fosgate P1G-10

• Rockford Fosgate P1 Series Loaded Subwoofer Enclosure

• Frequency Response: 23 - 250 Hz

• Xmax: 9mm

• Sensitivity: 84 dB @ 1 watt / 1 meter

• Matching Amplifiers: (one subwoofer)

• Rockford Fosgate R750-1D, @ 4ohm

• Authorized Internet Dealer
  1-year Manufacturer's Warranty
• Dimensions: 13.125 x 17 x 15.125 inches
• Magnet Weight: 45 Oz
