• An anodized extruded aluminum heat sink provides superior thermal stability.
• Four-layer, glass epoxy circuit board for enhanced performance and reliability
• Audiophile-grade high-tolerance components are used throughout
• Full Range Class D amplifier technology
• Bridgeable for high power operation (CH1+CH2+CH3+CH4)
• Balanced differential inputs for superior noise rejection
• Input selector switch (2 channel / 4 channel)
• Output clip indicators for precise system set-up
• Fully variable, 24dB per octave, electronic crossovers
• Adjustable Bass EQ (45Hz: 0dB to +12dB)
• Full range, line level outputs provided to send a signal to another amplifier

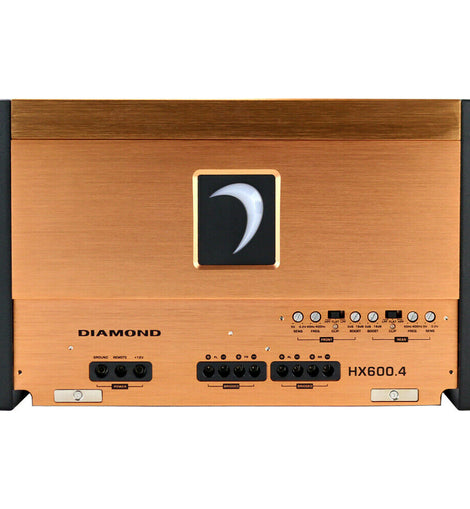

• Top-mounted controls for convenient adjustment

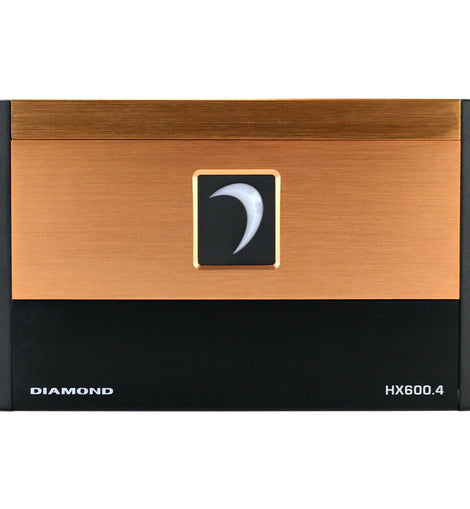

• Illuminated logo / fully concealed mounting

Specifications:

• RMS Power Rating
• RMS Power (4Ω): 160 W X 4
• RMS Power (2Ω): 250 W X 4
• Bridged(mono 4Ω): 500 W X 2
• Bridged(mono 2Ω): N/A
• Bridged(stereo 4Ω): 500 W X 2
• Type
• Topology: Full Range Class D
• Power Supply
• Power Supply: Full PWM
• Power Supply Threshold: 10.0VDC-170VDC
• Idle Current: (0.7A)
• Distortion
• THD 4(1KH@4Ω) : 0.06%
• S/N Ratio(A weighted@1W): -80dBA
• S/N Ratio(A weighted@FP): .95dBA
• Input Sensitivity
• Low Input Level: 200mV-5.0V
• High Input Level: N/A
• Input Impedance
• Low Input Level: 20 KΩ
• High Input Level: N/A
• Output Stage
• Output Impedance: 0.011 Ω
• Damping Factor(50Hz@4Ω): >250
• Bandwidth(-3dB): 10Hz-35KHz
• Crossover(-12dB/Oct)
• Variable High-Pass: 40Hz-400Hz
• Variable Low-Pass: 40Hz-400Hz
• Variable Sub-Sonic: N/A
• Fuse Ratings
• ATC: 25A X 2
• Dimensions
• Length x Width x Height(Inches): 11.9" x 7.67" x 2"
• Length x Width x Height(mm): 302 x 195 x 51.5
