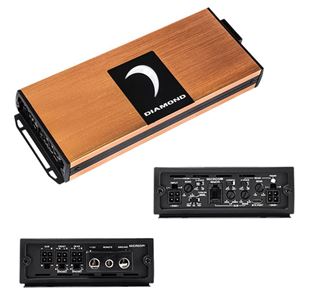

Diamond Audio MICRO5V2 950W RMS 5-Channel Compact Car Motorcycle Class D Amplifier

 Diamond Audio MICRO5V2 5-Channel 950W RMS Class D Car Motorcycle ATV Audio Amplifier

Elite sound quality and superior power in an ultra-compact chassis. The Diamond Audio Micro4v2 5-channel power amplifier sets the standard for high-end Harley-specific amplifiers. Featuring ultra-efficient full-range class D topology and ICAD circuit that provides superior overload protection, these compact amplifiers deliver huge power for their size. Its compact design not only has the juice to power your system but will also save you a ton of space in your car or transport whatever you need it. The sound quality in a small footprint chassis can be found with Diamond Audio’s Micro series amplifiers. Featuring the ultra-efficient full-range Class D topology, these compact amplifiers deliver serious power making them the best in class. Installation possibilities are endless due to its size and power amplification output. Even with its small platform, performance and sound quality are never sacrificed with Micro amplifiers from Diamond Audio!

General Features:

• Ultra-compact high-density aluminum alloy chassis provide superior thermal stability.
• Four-layer, a glass circuit board for enhanced performance and reliability
• Full Range Class D amplifier technology
• Bridgeable for high-power operation (CH1+CH2/CH3+CH4)
• Balanced differential inputs for superior noise rejection
• Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
• Input selector switch (2CH/4CH)
• Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM), and DC offset (DC)
• Fully variable, 12dB per octave, electronic crossovers
• Remote level control for Mono channel (CH5) included
• Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
• Illuminated logo

Specifications:

• RMS Power Rating:
• RMS Power (2Ω): 150W x 4/350W x 1
• RMS Power (4Ω): 80W x 4/200W x 1
• Bridged (mono 1Ω): N/A
• Bridged (mono 2Ω): N/A
• Bridged (mono 4Ω): 300W x 2/200W x 1
• Topology: Full Range Class D
• Power Supply:
• Power Supply: Full PWM
• Power Supply Threshold: 10.0VDC - 17.0VDC
• Idle Current: (0.7A)
• Distortion:
• THD 4 (1KHx @ 4Ω): 0.5%
• S/N Ratio (A weighted @1W): -85dBA
• S/N Ratio (A weighted @FP): -101.1dBA
• Input Sensitivity:
• Low Input Level: 200mV - 10.0V
• High Input Level: N/A
• Input Impedance:
• Low Input Level: 20KΩ
• High Input Level: 20KΩ
• Output Stage:
• Output Impedance: 0.018Ω
• Damping Factor (50Hz@4Ω): >70
• Bandwidth (-3dB): 10Hz - 35Hz
• Crossover (-12dB/Oct):
• Variable High-Pass: Flat or Fixed 70Hz
• Variable Low-Pass: 40Hz - 400Hz
• Variable Sun-Sonic: N/A
• Fuse Ratings:
• ATC: 60A
• Dimensions: 10.65” L x 4.0” W x 1.46” H
