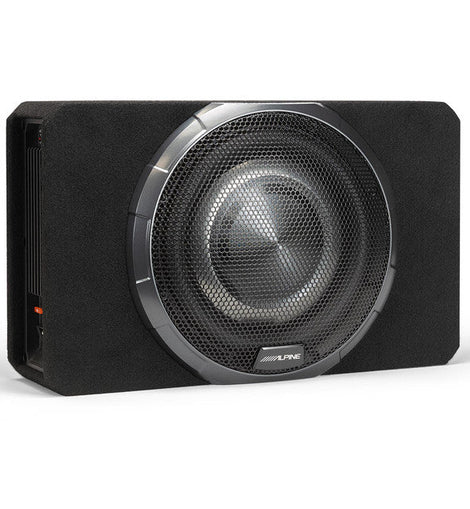

Alpine PWV-SB10 10" BassRev™ Powered Subwoofer Enclosure

Bring your music to life with the Alpine PWV-SB10, a high-performance 10" powered subwoofer built for deep, impactful bass. With a powerful built-in amplifier delivering 400W RMS (200W x 2) and a dual 4-ohm voice coil design, this subwoofer delivers strong, controlled low frequencies with impressive clarity.

Engineered with a sealed powered subwoofer enclosure and a wide frequency response of 31-200 Hz, the PWV-SB10 ensures tight, distortion-free bass that enhances any genre of music. Fine-tune your sound with a variable low-pass filter (50-200 Hz), phase selector (0°/180°), and a remote level control for on-the-fly adjustments.

Whether you're upgrading a factory system or building a custom setup, the PWV-SB10 powered subwoofer enclosure offers clean, powerful bass and flexible tuning in one sleek package—the perfect blend of Alpine quality and low-end performance.

Specifications:

Performance:

• Amplifier Power Output RMS Per Channel, Ref.: 4 ohm, 14.4V: 400 W (200 W x 2)

• Speaker Diaphragm size nominal 10 inch (25 cm)

• Speaker Impedance Dual Voice Coil 4 Ohm + 4 Ohm

• Speaker Power Handling RMS/Peak: 200W + 200W/400W + 400W

• Frequency Response +0/-3dB: 31-200 Hz

• Enclosure Type: Sealed

Control:

• Input Impedance: >10 kOhms

• Input Sensitivity RCA Input Ref.: Rated Power into 4 Ohms: Hi Level: 0.5 - 10V. Lo level: 0.2 - 2.0V

• Phase Selector 2 position: 0°/180°

• Crossover Variable LPF: 50 - 200 Hz (-24 dB/oct.)

• Remote Level Linear Attenuation 0 to -20dB

General Dimensions:

• Powered Subwoofer Enclosure Width: 470mm (18 1/2")
• Powered Subwoofer Enclosure Height: 282 mm (11")
• Depth without grille: 126 mm (5")

• Depth including grille: 170 mm (6 3/4")

• Weight: 9.7 kg (21 lb 6.4 oz)
